Configure VLAN for a Provisioned Phone

Requirements

The PBX firmware version is 84.18.0.18 or later.

Prerequisites

For more information, see Auto Provision IP Phones.

Procedure

• Step 1. Configure VLAN settings for the IP phone on PBX
• Step 2. Apply the configuration to IP phone

Step 1. Configure VLAN settings for the IP phone on PBX

1. Log in to PBX web portal, go to Auto Provisioning > Phones, then click to edit the desired phone.
2. Scroll down to the VLAN section, then complete the following settings as needed.

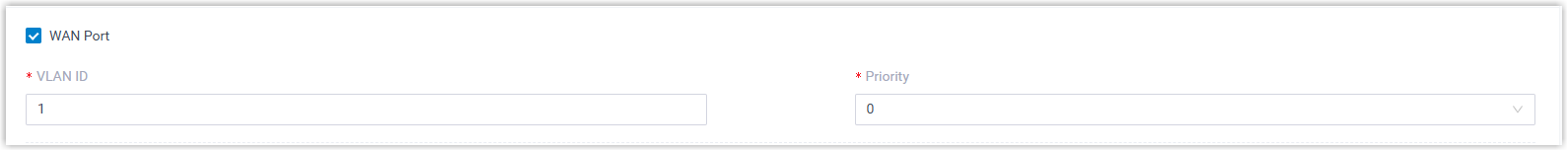

   • To configure VLAN for WAN port of the phone, do as follows:



     1. Select the checkbox of WAN Port.
     2. In the VLAN ID field, enter a VLAN ID.
     3. In the Priority drop-down list, select a priority value for the VLAN.

        The priority value is between 0 (lowest) to 7 (highest).

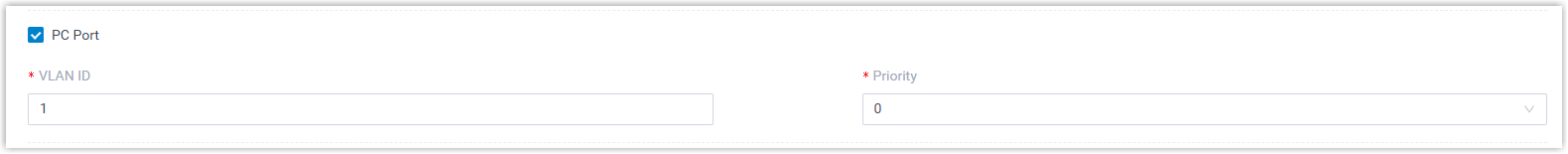

   • To configure VLAN for PC port of the phone, do as follows:



     1. Select the checkbox of PC port.
     2. In the VLAN ID field, enter a VLAN ID.
     3. In the Priority drop-down list, select a priority value for the VLAN.

        The priority value is between 0 (lowest) to 7 (highest).

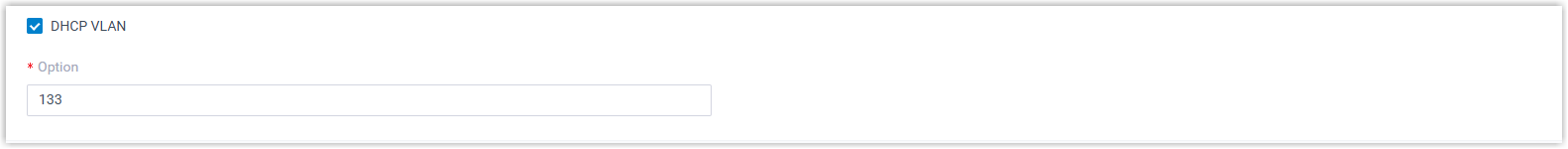

   • To acquire VLAN ID through DHCP option, do as follows:



     1. Select the checkbox of DHCP VLAN.
     2. In the Option field, enter the DHCP option(s) from which the phone will obtain the VLAN ID.
        Note: Use a comma to separate multiple DHCP options.
3. Click Save.

Step 2. Apply the configuration to IP phone

Result

The phones automatically apply the changes. Check the VLAN settings on the phone to see if the changes are applied.
