Configure Power Indicator Settings for a Provisioned Phone

By default, the power indicator LED on IP phones flashes when there are new voicemails or missed calls. You can customize these settings for provisioned phones through auto provisioning.

Requirements

The firmware of Yeastar P-Series Cloud Edition is 84.20.0.21 or later.

Prerequisites

The phone is connected to Yeastar P-Series Cloud Edition via Auto Provisioning, and has been assigned an extension.

For more information, see Auto Provision IP Phones.

Procedure

  1. Log in to PBX web portal, go to Auto Provisioning > Phones.
  2. Click beside the IP phone.

    You are redirected to the Phone setting page of the associated extension.

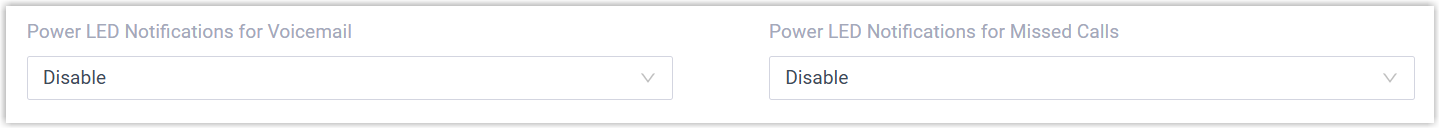

  3. In the Preference section, complete the following settings according to your needs.
    • Power LED Notifications for Voicemail: Configure whether the phone's power LED indicator flashes when a new voicemail or text message is received.
    • Power LED Notifications for Missed Calls: Configure whether the phone's power LED indicator flashes when there is a missed call.
  4. Click Save.
  5. Reprovision the IP phone.

    1. Click beside the IP phone.
    2. In the pop-up window, click OK.
