Configure Power Indicator Settings for a Provisioned Phone
By default, the power indicator LED on IP phones flashes when there are new voicemails or missed calls. You can customize these settings for provisioned phones through auto provisioning.
Requirements
The firmware of Yeastar P-Series PBX System is 37.20.0.21 or later.
Prerequisites
The phone is connected to Yeastar P-Series PBX System via Auto Provisioning, and has been assigned an extension.For more information, see the following topics:
- Auto Provision IP Phones in Local Network (PnP Method)
- Auto Provision IP Phones in Local Network (DHCP Method)
- Auto Provision IP Phones Remotely (RPS FQDN Method)
- Auto Provision IP Phones Remotely (RPS Method)
- Auto Provision IP Phones Remotely (Provision Link - FQDN Method)
- Auto Provision IP Phones Remotely (Provision Link Method)
Procedure

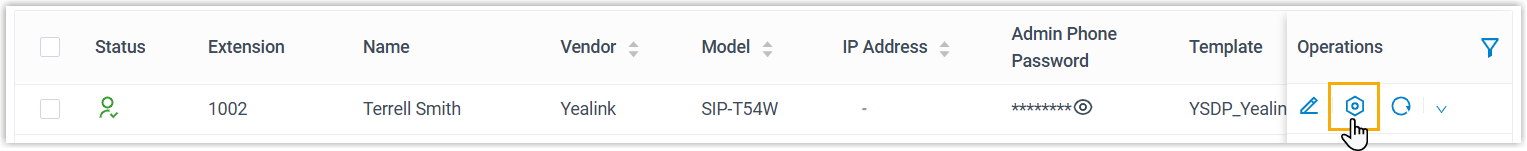

- Log in to PBX web portal, go to .
- Click
beside the IP phone.
You are redirected to the Phone setting page of the associated extension.

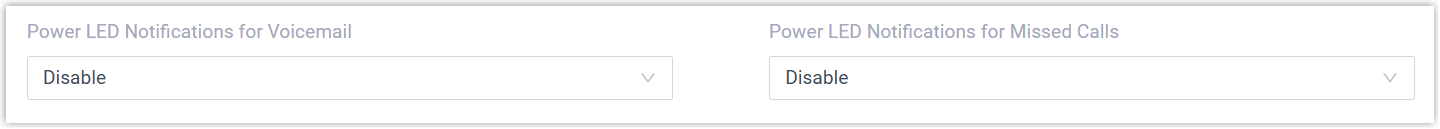

- In the Preference section, complete the following
settings according to your needs.
- Power LED Notifications for Voicemail: Configure whether the phone's power LED indicator flashes when a new voicemail or text message is received.
- Power LED Notifications for Missed Calls: Configure whether the phone's power LED indicator flashes when there is a missed call.
- Click Save.

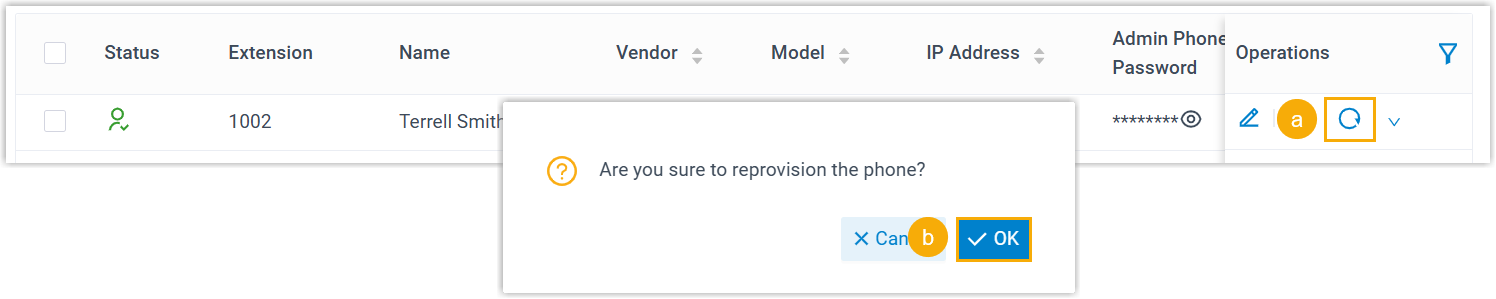

- Reprovision the IP phone.
- Click
beside the IP phone. - In the pop-up window, click OK.
- Click
