Configure Network for Remote Web Access by a Yeastar FQDN

Yeastar FQDN provides secure remote access to PBX web portal or Linkus Web Client, without the need of configuring public IP and port forwarding. This topic describes how to configure network for remote web access via FQDN.

Prerequisites

You have subscribed any of the following plans:
  • Standard Plan
  • Enterprise Plan
  • Ultimate Plan

Procedure

  1. Log in to PBX web portal, go to System > Network > Yeastar FQDN.
  2. Turn on Yeastar FQDN.

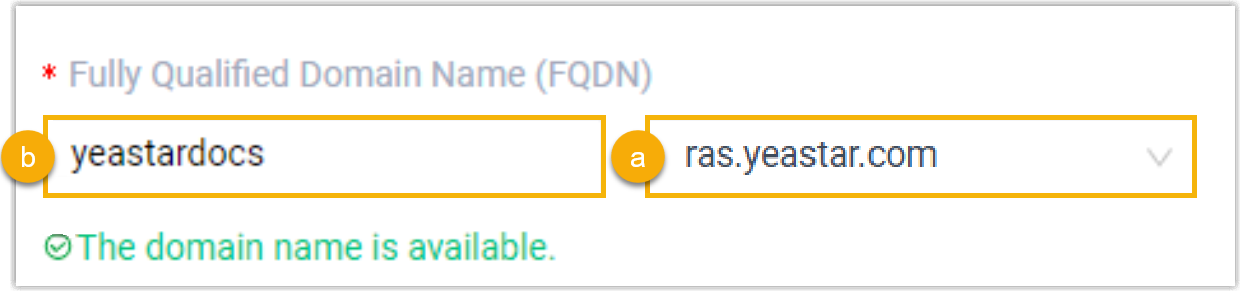

  3. In the Fully Qualified Domain Name (FQDN) field, set up the FQDN domain name.
    1. Select a domain name from the drop-down list.
    2. Enter a host name in the first field.
      Note: Think twice before you enter the hostname. The FQDN cannot be changed after you save the configurations.

      For example, select domain name ras.yeastar.com and enter hostname yeastardocs, you will get an FQDN yeastardocs.ras.yeastar.com.

  4. Optional: Configure remote web access usage permission.
    Note: By default, the super administrator account is restricted from using the remote web access feature.
    1. In the Features section, go to the Remote Access tab.
    2. Click beside the Web Access.
    3. In the pop-up window, complete the following settings according to your need.

      • Name: Display the remote access feature name, and cannot be edited.
      • Status: Enabled by default, and cannot be disabled.
      • Remote Access Service Port: Display the remote web access port 443. The port is assigned by Remote Access Service automatically.
      • Access Type: Define the account access restriction type.
        • Allowed Account: Only the selected accounts can get access to the service.
        • Restricted Account: All accounts except for the selected accounts can get access to the service.
      • Select Account: Select the desired accounts that can or can not use the remote access feature.
      • Organization: Select the desired organization(s) that can or can not use the remote access feature.
        Note:
        • This setting is available only when the Organization Management feature is enabled.
        • By default, when you select an organization, its associated sub-organizations are selected. Be careful when selecting organizations.
      • Enable IP Restriction: Select the checkbox of the option, and add at least one permitted IP address and subnet mask.

        If you configure this option, only the permitted IP address(es) can use the remote access feature.

    4. Click Confirm.
  5. Click Save.

Result

Network for remote web access is automatically configured, the authorized accounts can remotely access PBX web portal or Linkus Web Client via the FQDN.

What to do next

If your subscription trial period is up or the subscription is not renewed on time, your FQDN will be suspended. To ensure that your FQDN won't be taken by others, you need to subscribe or renew Standard Plan, Enterprise Plan or Ultimate Plan in 60 days.
