HTTP Request

This topic provides an overview of the HTTP Request component, and describes its configuration, variables, as well as supported connections.

Component introduction

HTTP Request component allows you to send HTTP requests to external Web servers, enabling data exchange with third-party services. The response is stored in variables, which can be used as input for subsequent components or for condition evaluation.

Supported request types

GET
HEAD
OPTIONS
POST
PUT
TRACE
DELETE

Supported content types

application/javascript
application/json
application/x-www-form-urlencoded
application/pdf
application/xml
application/zip
multipart/form-data
text/css
text/html
text/plain
image/png
image/jpeg
image/gif

Component configuration

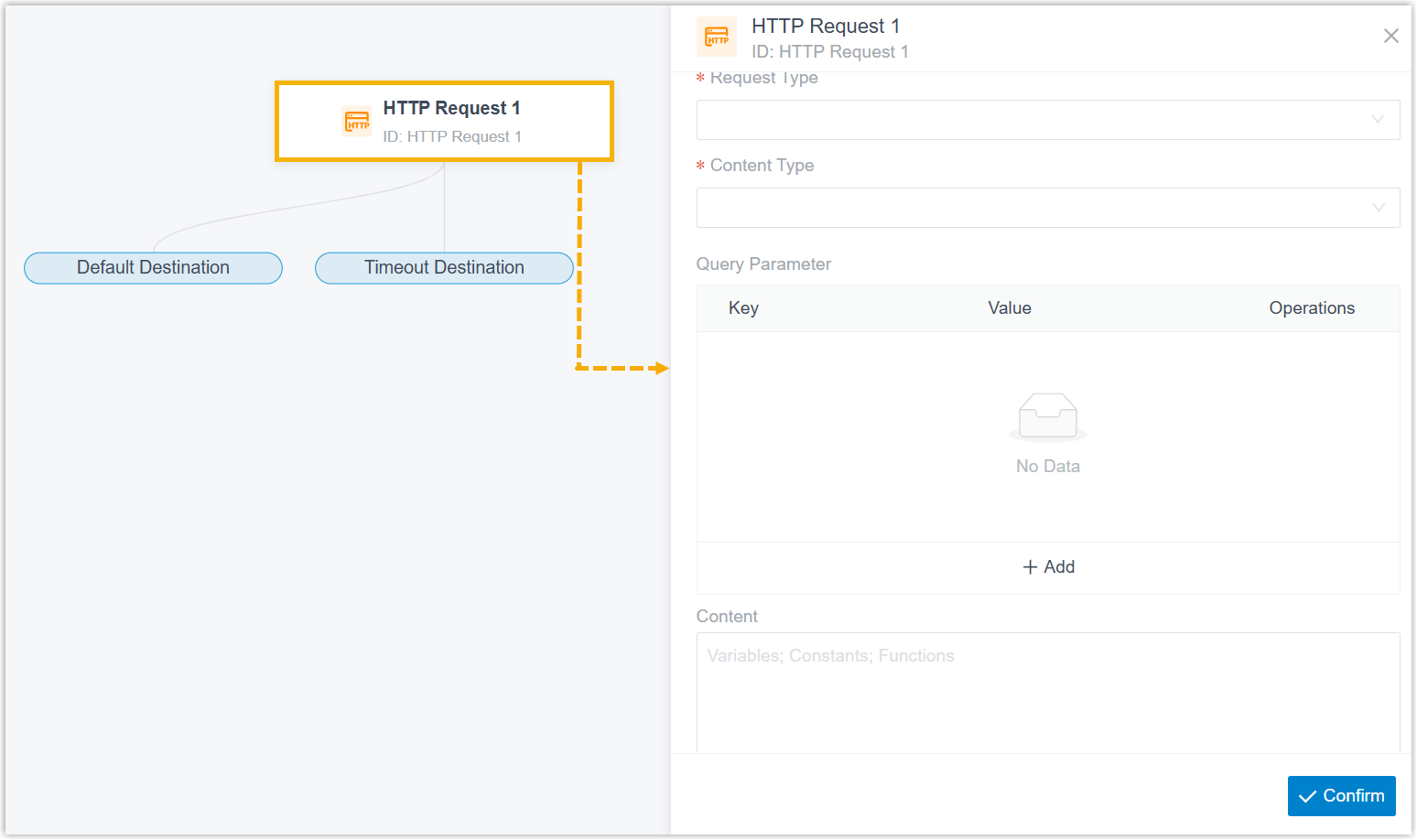

After adding HTTP Request component to a message flow, click HTTP Request component to proceed with the configuration.

In the pop-up right panel, configure the HTTP request and click Confirm.

Note: The URI, Query Parameter, Content and Header can be defined via expressions that may include variables, constants, and functions.

You can click to configure expressions. In expression editor, enter FX to view and select system‑supported functions, and enter $ to view and select variables already stored in the current message flow.

For more information about functions and variables, see Variables and Functions in Yeastar Expression.


Item	Description
URI	Specify the target URI to which the HTTP request will be sent.
Request Type	Select the HTTP method to use. GET HEAD OPTIONS POST PUT TRACE DELETE
Content Type	Select a content type. application/javascript application/json application/x-www-form-urlencoded application/pdf application/xml application/zip multipart/form-data text/css text/html text/plain image/png image/jpeg image/gif
Query Parameter	Click Add to add query parameters. Note: It is recommended not to exceed 30 parameters.
Content	Enter the request body to be sent to the server. Note: If variables or functions are inserted in the content box, enclose them in single quotes `''`.
Timeout(s)	Set the time in seconds to wait for the HTTP request to complete.
Header	Click Add to specify HTTP headers for the request. Note: It's recommended not to exceed 30 headers.

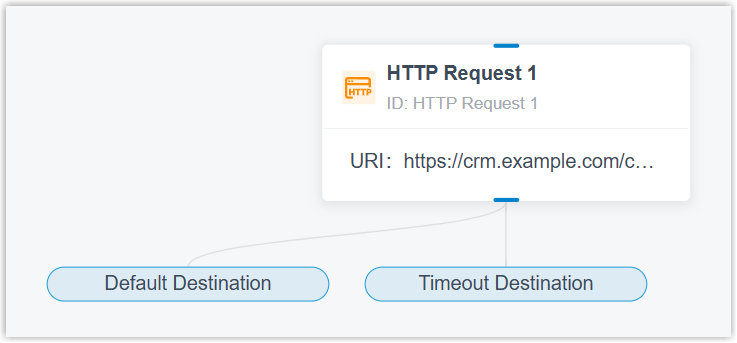

The configured information appears on the component.

Optional: To route the message session or trigger other actions when the component's branch conditions are met, hover over the desired branch and click to add the next component.

For more information about components that support to be connected, see Component connections.

Component variables

When a HTTP Request component is added to a message flow, the system stores response information in variables. These variables can be referenced in expression-supported components (such as Condition) to retrieve the response information and respond accordingly based on the result.

Note: Since HTTP Request component can be added multiple times in a message flow, an index is appended to the unique ID of each component (e.g. HTTP Request 1, HTTP Request 2) based on the order in which the components are added. To retrieve data from the right component, the component variable must contain the corresponding index.


Variable	Type	Description	Example Value
$HttpRequest`{index}`.responseContent	String	The body content returned from HTTP response.	{"authenticated": true, "user": "10000"}
$HttpRequest`{index}`.responseStatusCode	String	The HTTP status code returned from the request. Note: When using functions to evaluate HTTP status code, ensure that the constant is a numeric code, without any accompanying text.	"200"

Component connections

HTTP Request component comes with two built-in branches Default Destination and Timeout Destination. Each branch can be connected on one component, which can be any of the components listed below.

Note: If a component is already connected to the branch, and you need to insert a new component between them, hover over the line, click

and select the target component. The selected component is inserted between them with connections auto-established on both ends, without the need to delete the connection, add the component and reconnect manually.

End components Transfer and Close are unavailable for this insertion method.


Component	Description
Send Message	Send Message component enables the system to automatically send messages to customers. For more information, see Send Message.
Send WhatsApp Template Message	Send WhatsApp Template Message component enables the system to automatically send messages to customers using specified WhatsApp message templates. Important: This component is available only when the message flow is only applicable to WhatsApp channel type. For more information, see Send WhatsApp Template Message.
Wait for Reply	Wait for Reply component allows you to set the reply timeout and route the message session depending on whether a reply is received. For more information, see Wait for Reply.
Menu	Menu component allows you to present the customer with a set of menu options, and route the message session based on the value that they reply. For more information, see Menu.
Business Hours	Business Hours component allows you to route the message session to different destinations based on the time of day. For more information, see Business Hours.
Wait	Wait component enables the system to automatically route the message session to the connected component upon reply timeout. For more information, see Wait.
Condition	Condition component allows routing the message session based on logical expressions. For more information, see Condition.
Loop	Loop component allows a group of components to be executed repeatedly based on the loop strategy. For more information, see Loop.
Internal Data Ops	Internal Data Ops component allows you to query data from PBX-native database. For more information, see the following topics: Get Extension Presence Status Get Extension Info Get Company Contact Info
Email Sender	Email Sender component enables the system to automatically send emails to a recipient via configured email server and record the send logs, enabling real-time notifications. For more information, see Email Sender.
Database Access	Database Access component allows you to interact with database during a message flow. You can execute SQL operations to retrieve or update data as needed. For more information, see Database Access.
HTTP Request	HTTP Request component allows you to send HTTP requests to external web servers, enabling data exchange with third-party services. For more information, see HTTP Request.
Transfer	Transfer component allows you to transfer the message session to a specific destination to terminate the current message flow. For more information, see Transfer.
Close	Close component enables the system to automatically disconnect the message session to terminate the current message flow. For more information, see Close.
