Condition

This topic provides an overview of the Condition component, and describes its configuration as well as supported connections.

Component introduction

Condition component allows routing the message session based on logical expressions. You can use variables, constants, and functions in an expression to evaluate specific conditions. When a condition is met, the session will be routed to the connected component.

Component configuration

After adding Condition component to a message flow, you can configure branches with expressions to route calls based on specific conditions.

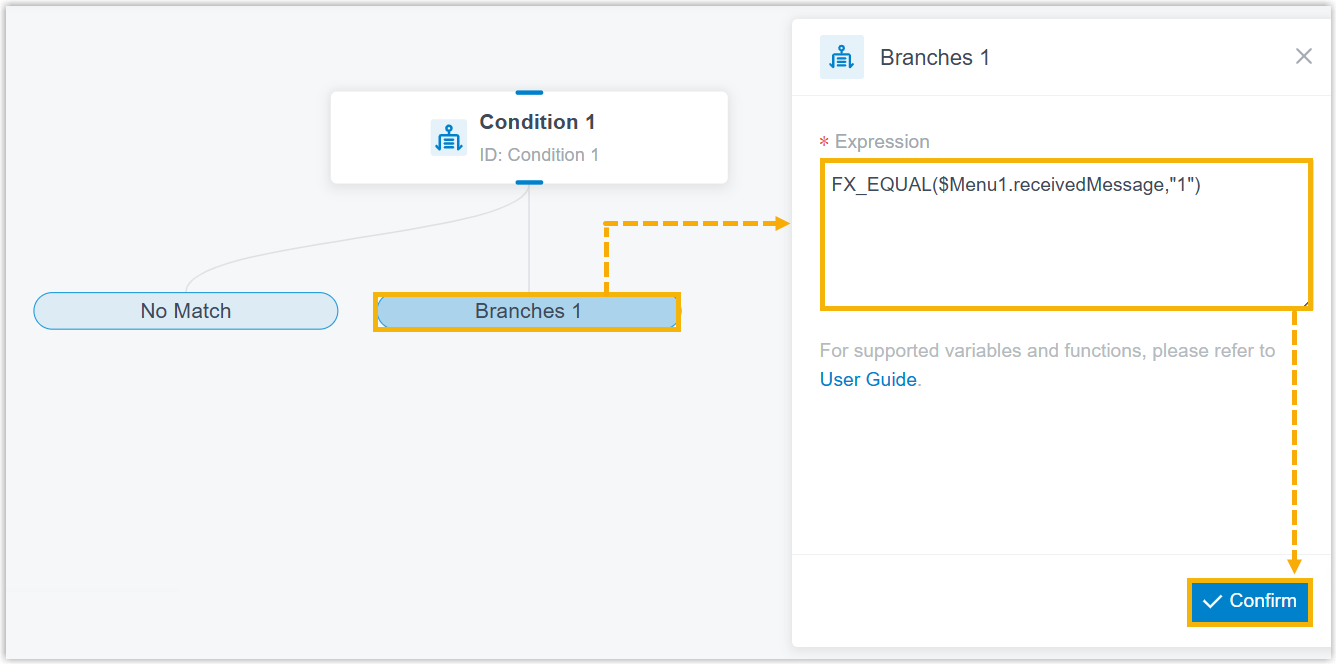

  1. Click the branch to configure expression, then click Confirm.
    Note:
    • Each branch supports only one expression.

    • An expression may include variables, constants, and functions. You can enter FX to view and select system‑supported functions, and enter $ to view and select variables already stored in the current message flow.

      For more information about functions and variables, see Variables and Functions in Yeastar Expression.

    In this example, enter FX_EQUAL($Menu1.receivedMessage,"1") used to check whether the message content that the customer sends in response to the menu with ID Menu 1 is 1. If they match, the session will be routed to the component connected to the branch.

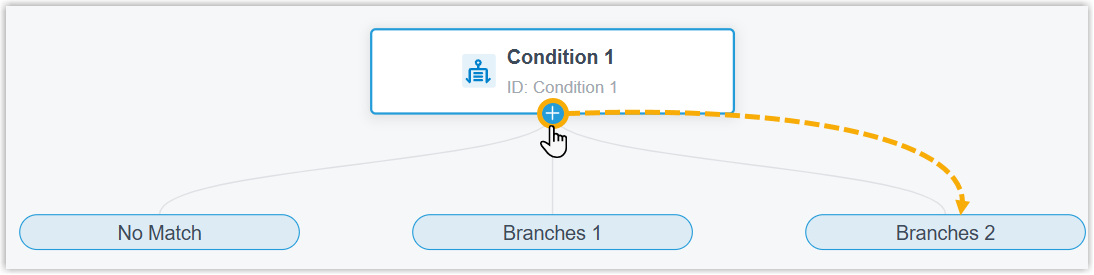

  2. Optional: To add more conditions, hover over the component and click to add more, then repeat Step 1.
    Note: You can add up to 9 additional branches.

  3. Optional: To route the message session or trigger other actions when the component's branch conditions are met, hover over the desired branch and click to add the next component.

    For more information about components that support to be connected, see Component connections.

Component connections

Condition component comes with two built-in branches No Match and Branch1, and supports up to 9 additional branches for specific conditions. Each branch can be connected on one component, which can be any of the components listed below.

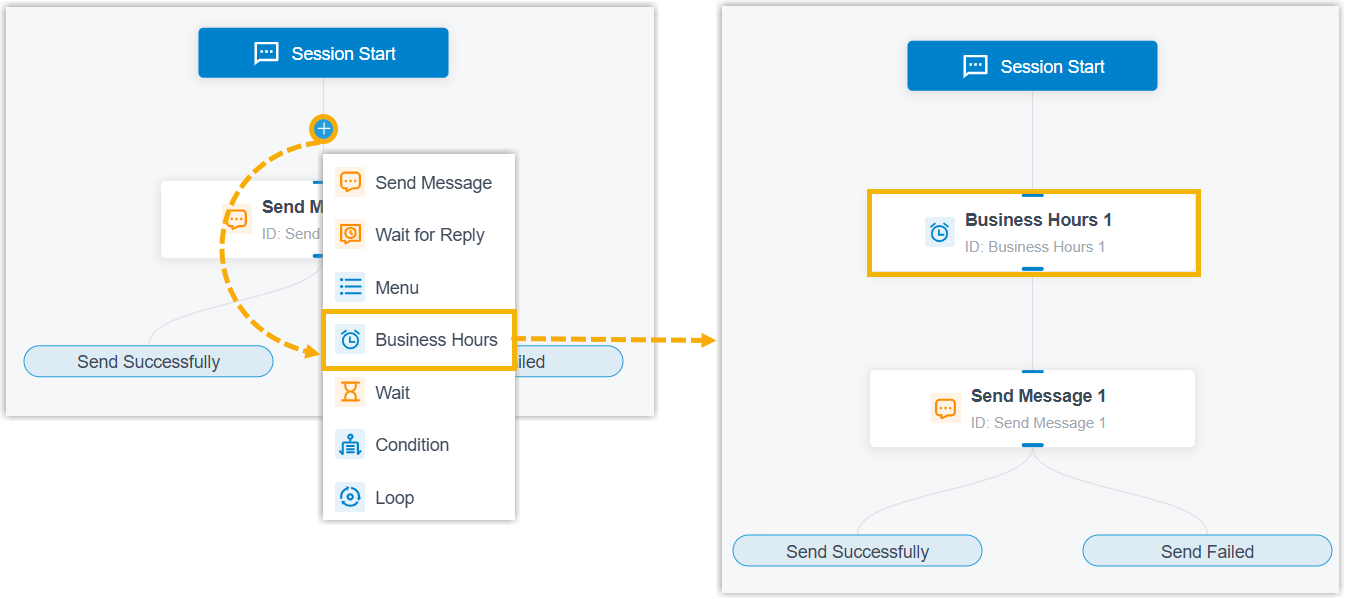

Note: If a component is already connected to the branch, and you need to insert a new component between them, hover over the line, click and select the target component. The selected component is inserted between them with connections auto-established on both ends, without the need to delete the connection, add the component and reconnect manually.

End components Transfer and Close are unavailable for this insertion method.

Component Description
Send Message Send Message component enables the system to automatically send messages to customers.

For more information, see Send Message.
Send WhatsApp Template Message Send WhatsApp Template Message component enables the system to automatically send messages to customers using specified WhatsApp message templates.
Important: This component is available only when the message flow is only applicable to WhatsApp channel type.

For more information, see Send WhatsApp Template Message.
Wait for Reply Wait for Reply component allows you to set the reply timeout and route the message session depending on whether a reply is received.

For more information, see Wait for Reply.
Menu Menu component allows you to present the customer with a set of menu options, and route the message session based on the value that they reply.

For more information, see Menu.
Business Hours

Business Hours component allows you to route the message session to different destinations based on the time of day.

For more information, see Business Hours.
Wait Wait component enables the system to automatically route the message session to the connected component upon reply timeout.

For more information, see Wait.
Condition Condition component allows routing the message session based on logical expressions.

For more information, see Condition.
Loop Loop component allows a group of components to be executed repeatedly based on the loop strategy.

For more information, see Loop.
Internal Data Ops Internal Data Ops component allows you to query data from PBX-native database.
For more information, see the following topics:
Email Sender Email Sender component enables the system to automatically send emails to a recipient via configured email server and record the send logs, enabling real-time notifications.

For more information, see Email Sender.
Database Access Database Access component allows you to interact with database during a message flow. You can execute SQL operations to retrieve or update data as needed.

For more information, see Database Access.
HTTP Request HTTP Request component allows you to send HTTP requests to external web servers, enabling data exchange with third-party services.

For more information, see HTTP Request.
Transfer

Transfer component allows you to transfer the message session to a specific destination to terminate the current message flow.

For more information, see Transfer.
Close Close component enables the system to automatically disconnect the message session to terminate the current message flow.

For more information, see Close.
