Restore P-Series Appliance/Software Edition from Source Backup

In case of data loss or system failure, you can restore P-Series Appliance/Software Edition to a backup. This topic describes how to restore a P-Series Appliance/Software Edition from its source backup.

Background information

Yeastar Central Management allows you to restore P-Series Appliance/Software Edition from a backup, which is generated from itself or another PBX of the same product model.

To restore a P-Series Appliance/Software Edition from its source backup, see this topic.

To restore a P-Series Appliance/Software Edition from a backup originating from another PBX system, see Restore P-Series Appliance / Software Edition from Another Backup.

Requirements

Subscribe to RM Premium (Self-hosted) service.
The firmware of Yeastar Central Management is 87.15.0.83 or later.
The firmware of the P-Series Appliance/Software Edition is 37.19.0.110 / 83.19.0.110 or later.

Prerequisites

You have connected the P-Series Appliance/Software Edition to Yeastar Central Management.

For more information, see Connect PBX System to Yeastar Central Management Using Email and Connect PBX System to Yeastar Central Management Using Authentication Code.
There is at least one backup file of P-Series Appliance/Software Edition, either uploaded by yourself or generated from a scheduled backup task.
For more information, see Create a Backup File of P-Series Appliance/Software Edition, Upload a Backup File of P-Series Appliance/Software Edition, Create an On-demand Backup Task, and Schedule an Automated Backup Task.

Procedure

Log in to Yeastar Central Management, go to Remote Management > My Devices.

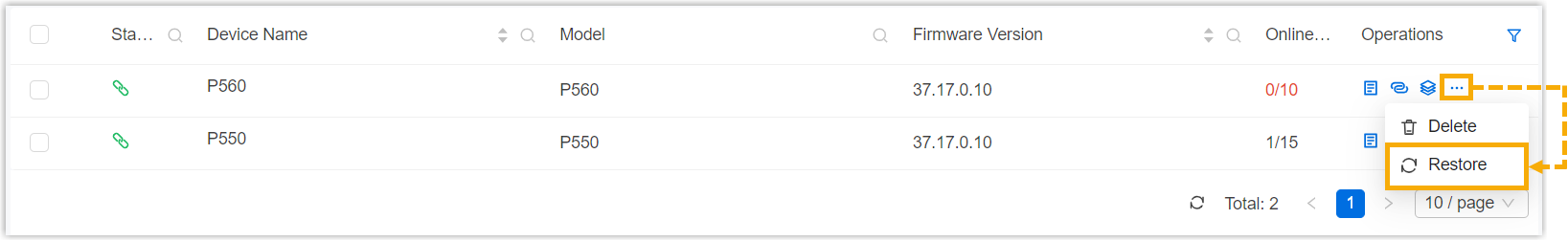

Select a desired PBX, click , then select Restore.

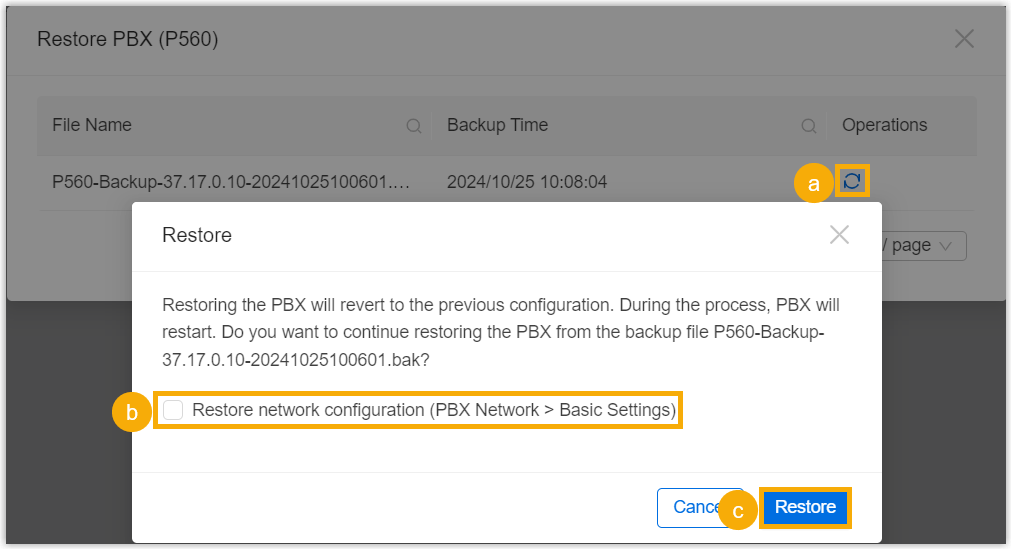

In the pop-up window, do as follows:
1. On the right of the desired backup file, click .
2. If you want to retain existing network configurations, unselect the checkbox of Restore network configuration.
3. Click Restore.

Result

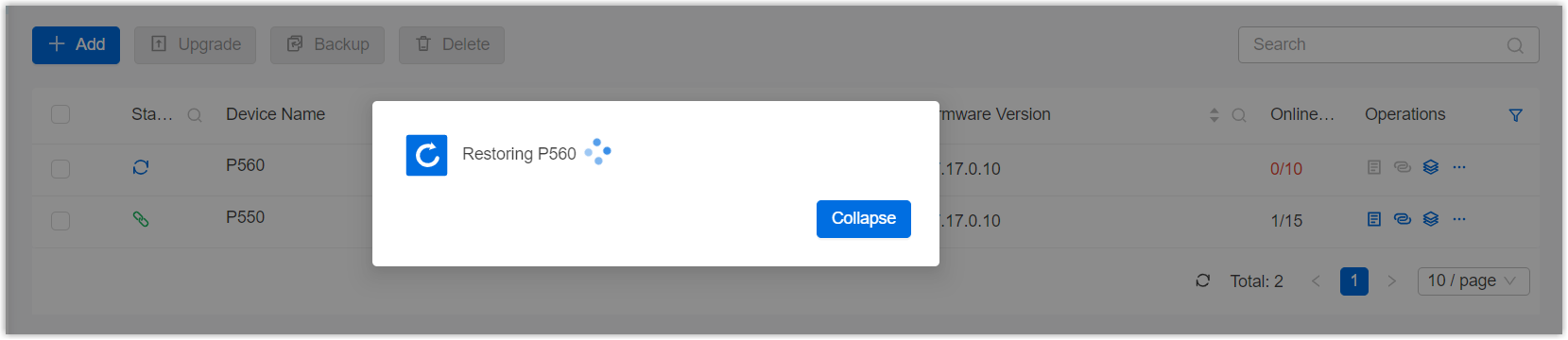

PBX status is displayed as , and there is a pop-up window prompting that PBX system is restoring from the backup file.
Tip: You can click Collapse to collapse the window to the bottom-right corner.
After PBX system starts up, the current configurations are overwritten with the backup data, and PBX status is displayed as .
