Onsite Proxy Overview

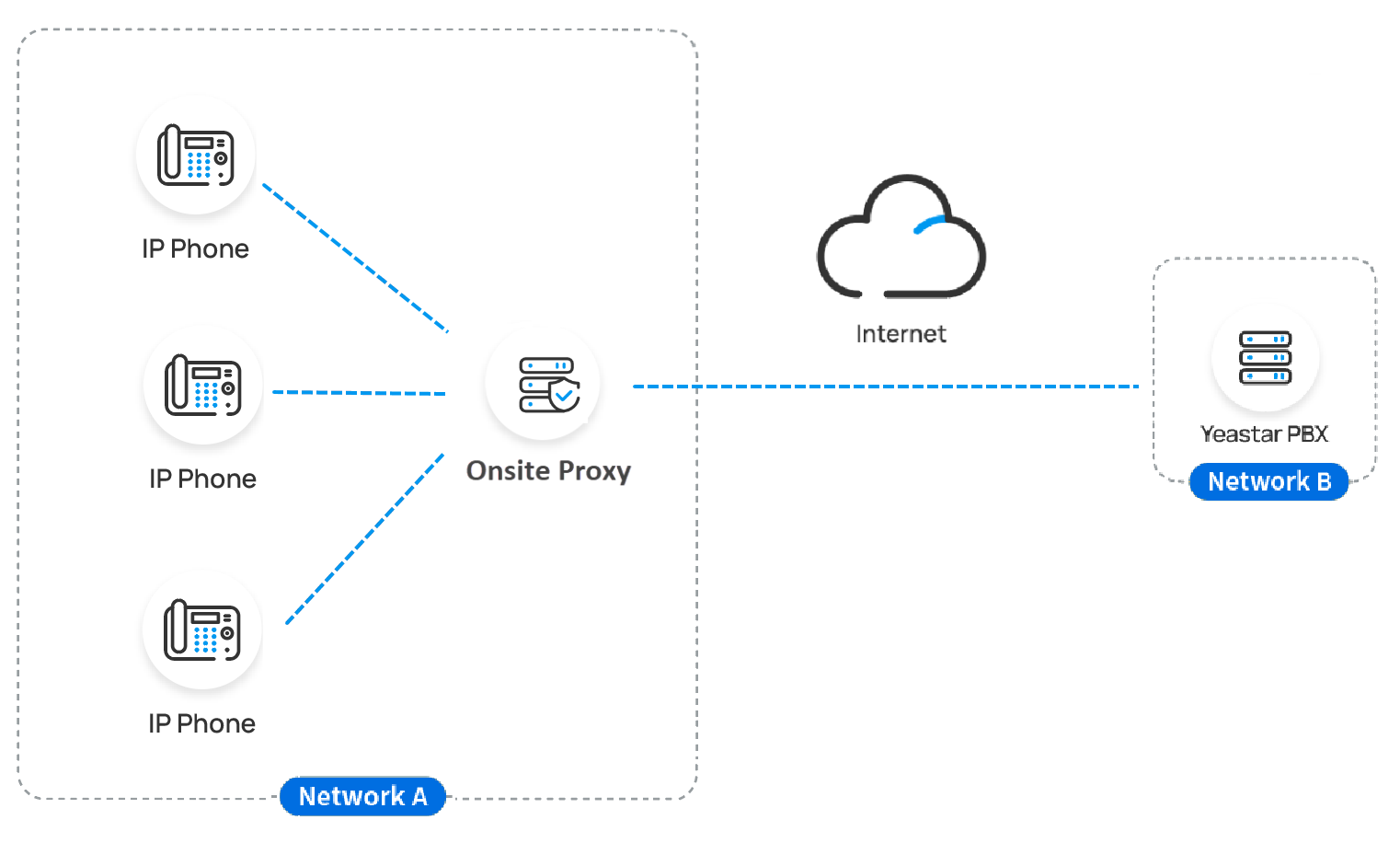

Scenario

When multiple IP phones are deployed in a subnet, you can deploy Onsite Proxy in the same subnet as the IP phones and connect only the proxy to the PBX.

After connection, you can provision the IP phones via the proxy. Then the Onsite Proxy will forward provisioning link, SIP signaling, RTP packets, etc. between the phones and the PBX, making them work as if they are on the same subnet.

This strategy eliminates the need to configure redundant port forwarding or firewall rules for the phones' located network on the PBX side, and reduces data forwarding latency and the risk of packet loss caused by traditional remote access solution.

Requirements

PBX server

The firmware version of Yeastar P-Series Cloud Edition is 84.23.0.23 or later.

Onsite Proxy host

Item	Requirement
Network	The host must reside in the same subnet as the IP phones, and there is network connectivity between the subnet and the PBX server.
Operating system	The host is deployed with required operating system.
Hardware	The host meeting the minimum specifications.
Port forwarding	UDP port 5060 on the host is available.
IP address	The host have been assigned a static IP address.

Key features

Auto-discovery of IP phones

Onsite Proxy automatically discovers available IP phones on the same subnet via PnP (Plug and Play), and reports their information (including MAC, IP address, vendor, and model) to the PBX.

Zero-touch auto provisioning

When you assign extensions to IP phones PnP-discovered by the Onsite Proxy, the proxy automatically pushes the provisioning link from the PBX to the corresponding phones, triggering the phones to automatically download configuration file and complete extension registration, enabling zero-touch deployment.

Proxy SIP signaling

Onsite Proxy forwards SIP registration requests from phones to the PBX and maintains a stable registration. After registration, Onsite Proxy relays all SIP signaling (such as REGISTER, INVITE, BYE) between the phones and the PBX over a single UDP port 5060 of Onsite Proxy host.

Audio RTP Passthrough

Onsite Proxy supports Audio RTP Passthrough. When enabled, if IP phones are registered via the same Onsite Proxy, the RTP audio streams between them are transmitted directly (peer-to-peer), bypassing both the PBX and the proxy. This reduces latency, saves bandwidth, and greatly improves call quality.

Objectives

The objectives of this guide and the reference topics for achieving them are as follows.

Connect Onsite Proxy to Yeastar P-Series Cloud Edition

1. Add an Onsite Proxy instance on the PBX to obtain the connection information for Onsite Proxy configuration. For more information, see Add an Onsite Proxy Instance on Yeastar PBX.
2. Install and set up Onsite Proxy in the same subnet as the IP phones, and connect it to the PBX using the connection information obtained in the previous step. For more information, see Install Onsite Proxy.

Auto provision IP phones

After connecting Onsite Proxy to the PBX, you can auto provision IP phones with Onsite Proxy. For more information, see Auto Provision IP Phones Remotely with Proxy.
