Upload an Extension Voicemail Greeting

Upload a voicemail greeting for specified extension.

Request URL

POST {base_url}/{api_path}/extension_vm_greeting/upload?access_token={access_token}

Request parameters

Parameter Required Type Description
owner Yes String

The number of the extension to which the uploaded voicemail greeting belongs.

Note: You can query the extension number using Search Specific Extensions.
file Yes File The voicemail greeting file.
Note: Only a file in ".wav", ".mp3" or ".gsm" format is supported, and the file size must not exceed 8MB.
is_check Yes String The operation mode.

Valid value:

  • ask: Check whether the filename of the voicemail greeting already exists.
  • force: Upload the voicemail greeting file.
    Note: If no duplicate filename exists, add the voicemail greeting directly; otherwise, overwrite the existing one.

Response parameters

Parameter Type Description
errcode Integer Returned error code.
  • 0: Succeed.
  • Non-zero value: Failed.
Note: You can check the error code and error message in Error Code and Error Message.
errmsg String Returned message.
  • SUCCESS: Succeed.
  • FAILURE: Failed.
owner String

The number of the extension to which the uploaded voicemail greeting belongs.

Examples

Request example

  • Check whether the filename of the greeting (file: vm_away.wav) already exists in the voicemail greeting list for specified extension (number: 3200).
    POST /openapi/v1.0/extension_vm_greeting/upload?access_token=L3LDr0HRuT190YmccVIaXj6OxkLzUHfo HTTP/1.1
Host: 192.168.5.150:8088
Content-Type: multipart/form-data; boundary=----WebKitFormBoundary7MA4YWxkTrZu0gW

------WebKitFormBoundary7MA4YWxkTrZu0gW
Content-Disposition: form-data; name="file"; filename="/D:/greeting/vm_away.wav"
Content-Type: audio/wav

(binary data)
------WebKitFormBoundary7MA4YWxkTrZu0gW
Content-Disposition: form-data; name="owner"

3200
------WebKitFormBoundary7MA4YWxkTrZu0gW
Content-Disposition: form-data; name="is_check"

ask
------WebKitFormBoundary7MA4YWxkTrZu0gW--

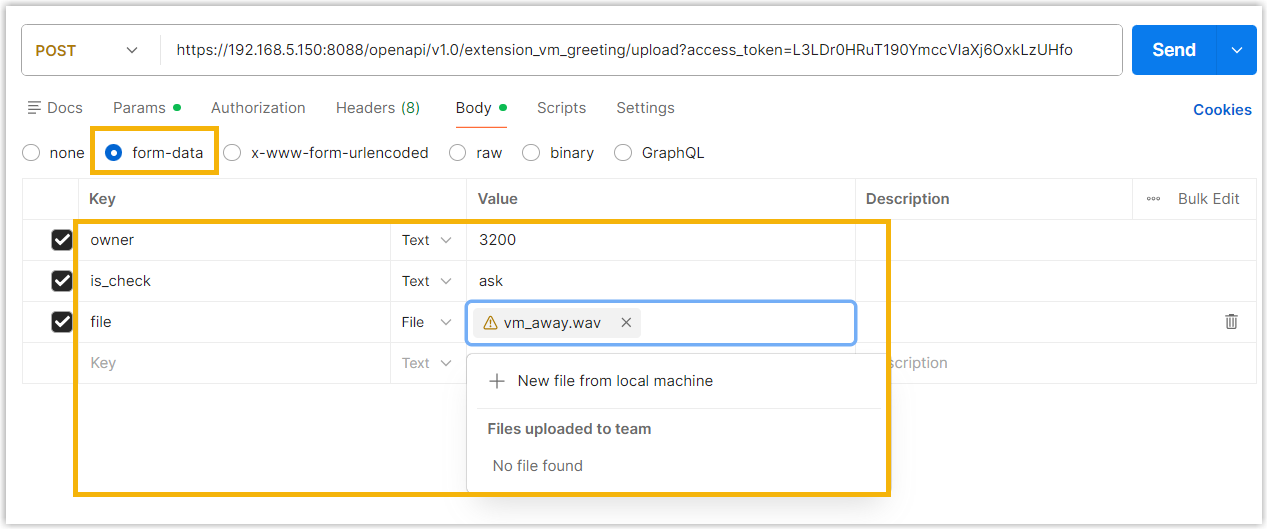

    Figure 1. Request example 1 in Postman
  • Upload the voicemail greeting (file: vm_away.wav) for the specified extension (number: 3200).
    POST /openapi/v1.0/extension_vm_greeting/upload?access_token=L3LDr0HRuT190YmccVIaXj6OxkLzUHfo HTTP/1.1
Host: 192.168.5.150:8088
Content-Type: multipart/form-data; boundary=----WebKitFormBoundary7MA4YWxkTrZu0gW

------WebKitFormBoundary7MA4YWxkTrZu0gW
Content-Disposition: form-data; name="file"; filename="/D:/greeting/vm_away.wav"
Content-Type: audio/wav

(binary data)
------WebKitFormBoundary7MA4YWxkTrZu0gW
Content-Disposition: form-data; name="owner"

3200
------WebKitFormBoundary7MA4YWxkTrZu0gW
Content-Disposition: form-data; name="is_check"

force
------WebKitFormBoundary7MA4YWxkTrZu0gW--

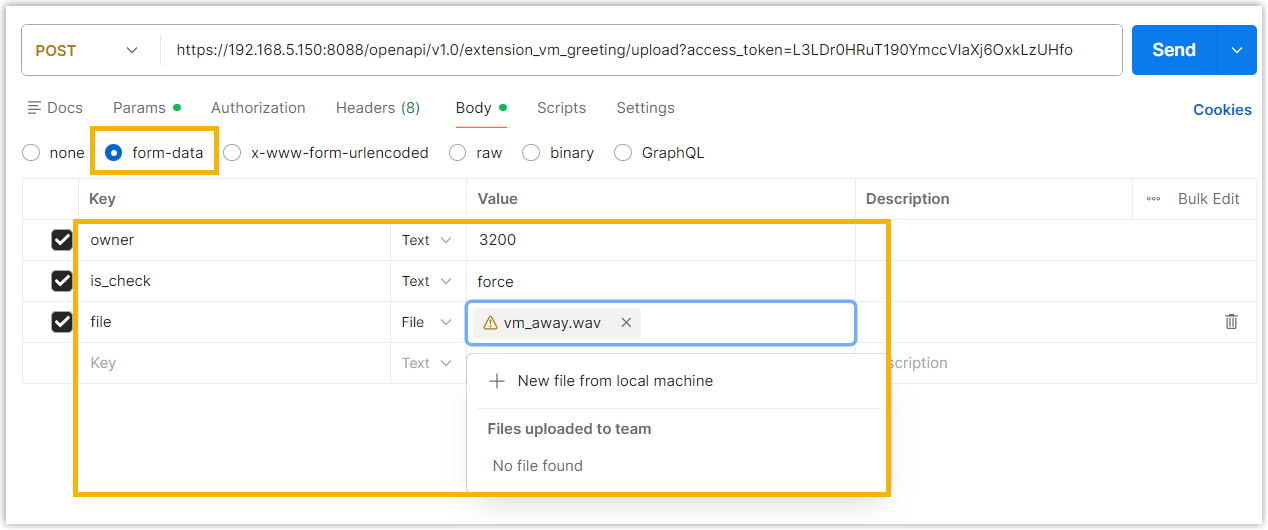

    Figure 2. Request example 2 in Postman

Response example

HTTP/1.1 200 OK
{
    "errcode": 0,
    "errmsg": "SUCCESS",
    "owner": "3200"
}
