Upload Files for Messaging

Upload one or more files to the PBX, which can be used when sending messages in either message campaigns or message sessions.

Note:
  • The uploaded files are stored under the folder /ysdisk/cache/chat, and these files will be periodically cleaned up along with chat messages.
  • The total size of uploaded file(s) can NOT exceed 100 MB.

Request URL

POST {base_url}/{api_path}/message/batchupload?access_token={access_token}

Request parameters

Parameter Required Type Description
files Yes file List of file resources, uploaded via form-data.
Note: Supports to upload multiple files.

Response parameters

Parameter Type Description
errcode Integer Returned error code.
  • 0: Succeed.
  • Non-zero value: Failed.
Note: You can check the error code and error message in Error Code and Error Message.
errmsg String Returned message.
  • SUCCESS: Succeed.
  • FAILURE: Failed.
list Array<File_Info> The list of detailed information for uploaded files.
File_Info
Parameter Type Description
id String The ID of the file.
name String The name of the file.
uri String The URI for accessing the file.
type String File type.
size Integer File size (Unit: Byte).

Example

Request example

POST /openapi/v1.0/message/batchupload?access_token=cIRvlHGgdMSuY0eiWE9JkXLCcHZHRTXm HTTP/1.1
Host: 192.168.5.150:8088
Content-Type: multipart/form-data; boundary=----WebKitFormBoundary7MA4YWxkTrZu0gW

------WebKitFormBoundary7MA4YWxkTrZu0gW
Content-Disposition: form-data; name="files"; filename="/D:/projects/files/demo.wav"
Content-Type: audio/wav

(binary data) # actual file content here
------WebKitFormBoundary7MA4YWxkTrZu0gW
Content-Disposition: form-data; name="files"; filename="/D:/projects/files/demo.jpg"
Content-Type: image/jpeg

(binary data) # actual file content here
------WebKitFormBoundary7MA4YWxkTrZu0gW
Content-Disposition: form-data; name="files"; filename="/D:/projects/files/demo.mp4"
Content-Type: video/mp4

(binary data) # actual file content here
------WebKitFormBoundary7MA4YWxkTrZu0gW
Content-Disposition: form-data; name="files"; filename="/D:/projects/files/demo.csv"
Content-Type: text/csv

(binary data) # actual file content here
------WebKitFormBoundary7MA4YWxkTrZu0gW--

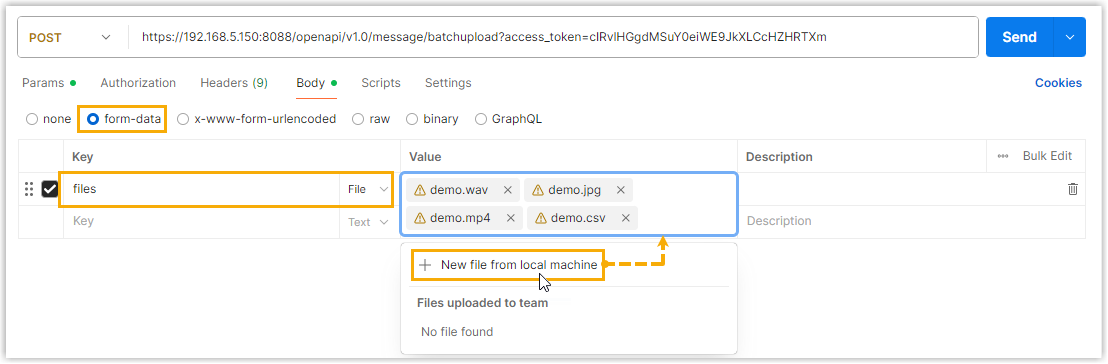

Figure 1. Request example in Postman

Response example

HTTP/1.1 200 OK
{
    "errcode": 0,
    "errmsg": "SUCCESS",
    "list": [
        {
            "id": "da20742bf760466aa0aac64c07c05353",
            "name": "demo.wav",
            "uri": "20250728/da20742bf760466aa0aac64c07c05353",
            "type": "audio/wave",
            "size": 202812
        },
        {
            "id": "98027f003d3d47328f2e5dbeb0f65879",
            "name": "demo.jpg",
            "uri": "20250728/98027f003d3d47328f2e5dbeb0f65879",
            "type": "image/jpeg",
            "size": 95896
        },
        {
            "id": "d96bb38dafc447c5b04350df9440f74c",
            "name": "demo.mp4",
            "uri": "20250728/d96bb38dafc447c5b04350df9440f74c",
            "type": "video/mp4",
            "size": 309568
        },
        {
            "id": "75866e1ff520418a8bee0f92f6d7b161",
            "name": "demo.csv",
            "uri": "20250728/75866e1ff520418a8bee0f92f6d7b161",
            "type": "text/csv",
            "size": 56890
        }
    ]
}
