Set up a Call Flow from Template

Yeastar P-Series Cloud Edition provides built-in templates that cover common use cases. You can use a ready-made template to build a custom call flow.

Template introduction

Template Description Screenshot

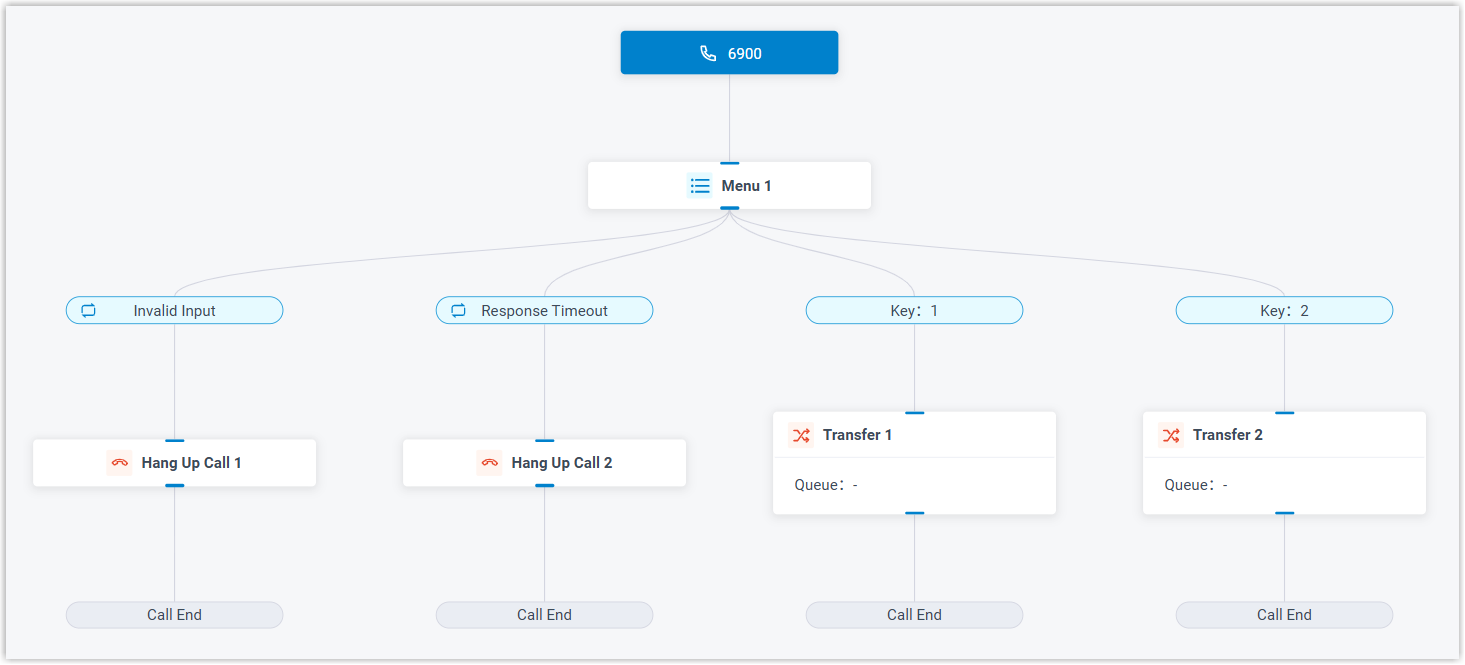

Linear Call Flow

A linear call flow allows you to route calls to different destinations based on the DTMF digit entered by callers.

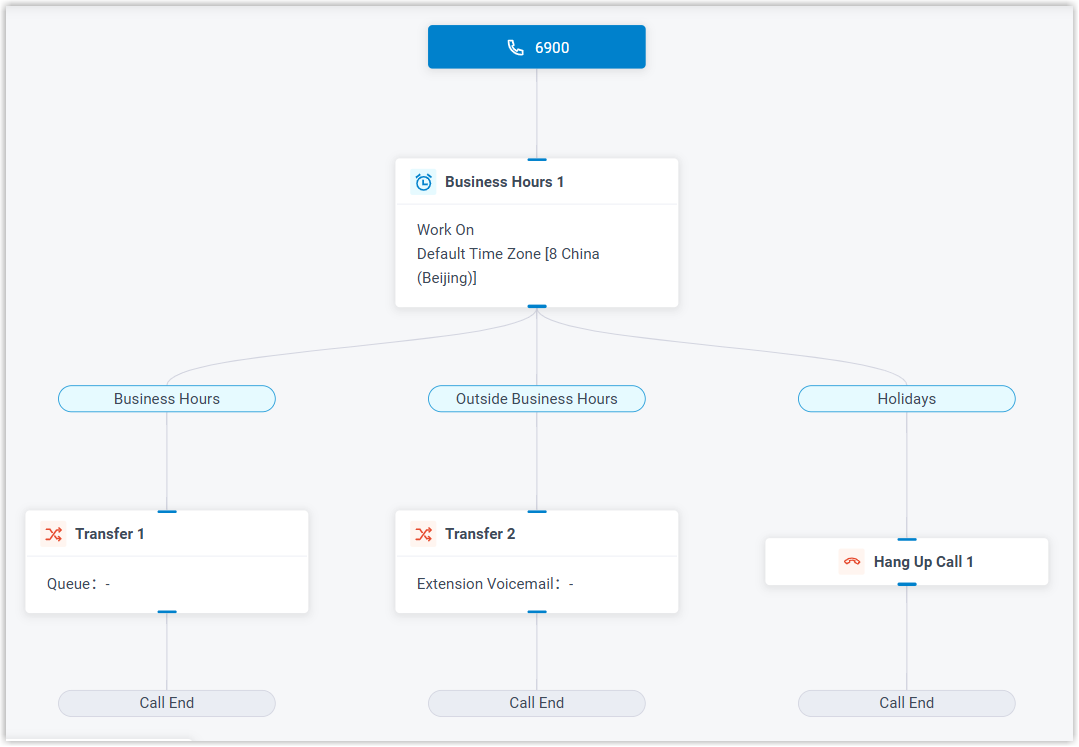

Time-based Call Flow

A time-based call flow allows you to route calls to different destinations based on the business hours configured for default time zone.

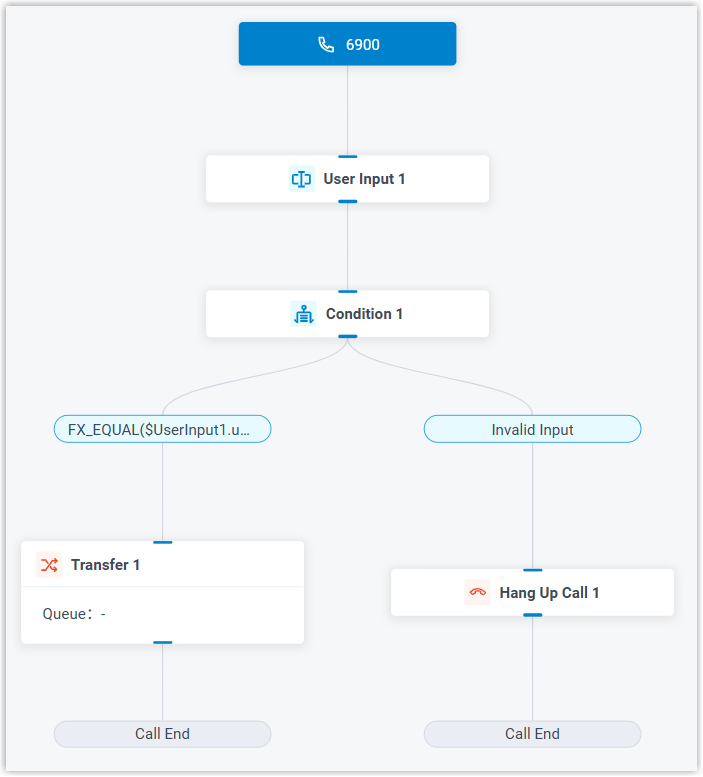

Certified Call Flow

A certified call flow allows you route calls to different destinations by evaluating user input against pre-defined expressions.

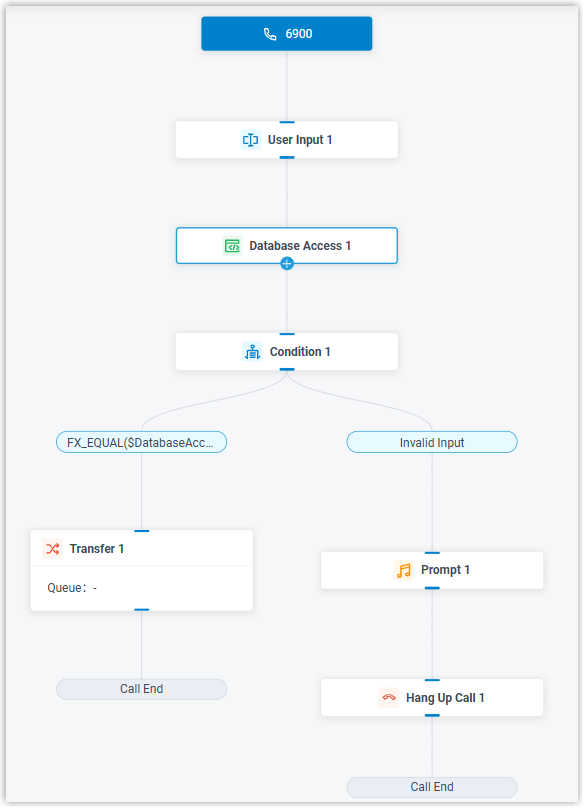

Database Authentication A database authentication call flow allows you to route calls to different destinations by validating user input against database.

Step 1. Create a call flow from template

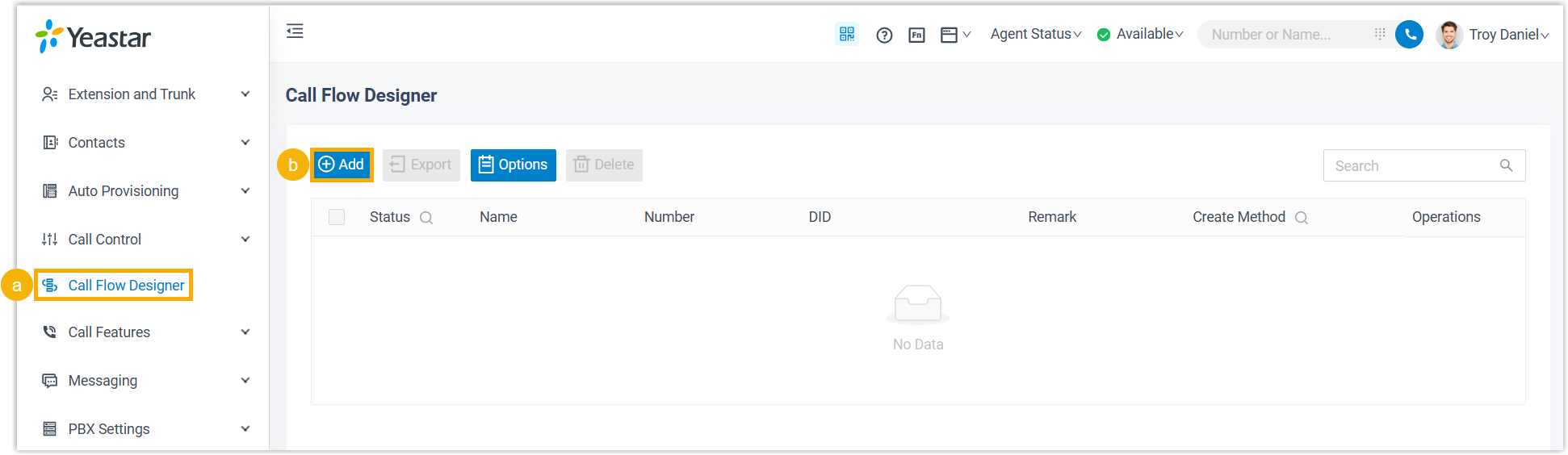

  1. Access the creation page of call flow.

    1. Log in to PBX web portal, go to Call Flow Designer.
    2. Click Add.

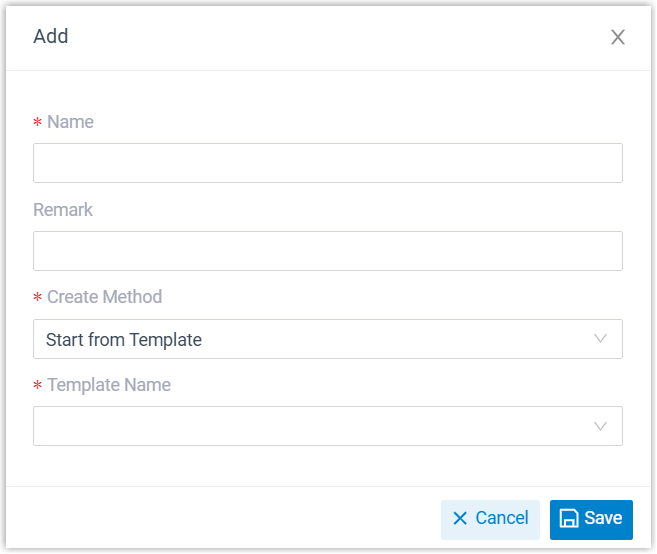

  2. In the pop-up window, complete the following settings, then click Save.

    • Name: Enter a name to help you identify the call flow.
    • Remark: Add a brief description.
    • Create Method: Select Start from Template.
    • Template Name: Select a template.

    The call flow is created, and the webpage is redirected to the configuration page.

Step 2. Edit components

Tip: If you need to configure PBX features while editing components, click Open in a new tab at the top-right corner to continue editing in a separate tab.

  1. Click component to edit its settings.

    Refer to the table below for introduction and instruction on each component.

    Component Description
    Initial Action

    Initial Action component is the entry point of a call flow. It allows you to specify the phone number(s) that callers can dial to initiate the flow, and optionally configure an audio prompt to welcome callers or provide instructions for them.

    For more information, see Initial Action.
    Prompt

    Prompt component allows you to play audio prompt(s) or a text-to-speech message to callers.

    For more information, see Prompt.
    Business Hours

    Business Hours component allows you to route calls to different destinations based on the time of day.

    For more information, see Business Hours.
    Menu Menu component allows you to present callers with a set of menu options, and route calls based on the DTMF digit they press.

    For more information, see Menu.
    User Input

    User Input component allows you to collect DTMF digits from callers, typically used with Condition component to evaluate user input and route calls.

    For more information, see User Input.
    Language

    Language component allows you to change the system prompt language for subsequent components in a call flow.

    For more information, see Language.
    Record Record component allows you to start recording a call upon the caller being connected to another participant, and optionally configure prompts to inform call participants at the start and during the recording. Alternatively, you can use the component to disable call recording for calls that are supposed to be recorded.

    For more information, see Record.
    Dial by Number

    Dial by Number component allows callers to directly dial a number to reach the destination.

    For more information, see Dial by Number.
    Dial by Name

    Dial by Name component is one of the end components to terminate caller's connection to the current call flow. It allows callers to reach extension user by entering the first three letters of the user's name.

    For more information, see Dial by Name.
    Transfer

    Transfer component is one of the end components to terminate caller's connection to the current call flow. It allows you to transfer callers to a designated destination, and optionally configure prompts to inform them of the transfer.

    For more information, see Transfer.
    Hang Up Call

    Hang Up Call component is one of the end components to terminate caller's connection to the current call flow. When callers are routed to the component, the call will be disconnected.

    For more information, see Hang Up Call.
    Condition Condition component allows routing calls based on logical expressions.

    For more information, see Condition.
    Loop Loop component allows a group of components to be executed repeatedly, either for a specified number of times or until a condition is met.

    For more information, see Loop.
    Developer Developer component allows you to query and update data from PBX-native database or third-party database.
    For more information, see the following topics:
  2. Optional: To add components, click on the branch, then select a component.

  3. At the top-right corner, click Save.

Step 3. Enable the call flow

  1. On the call flow list, turn on the switch of the desired call flow.

  2. In the pop-up window, click OK.
