Loop

This topic provides an overview of the Loop component, and describes its configuration as well as supported connections.

Component introduction

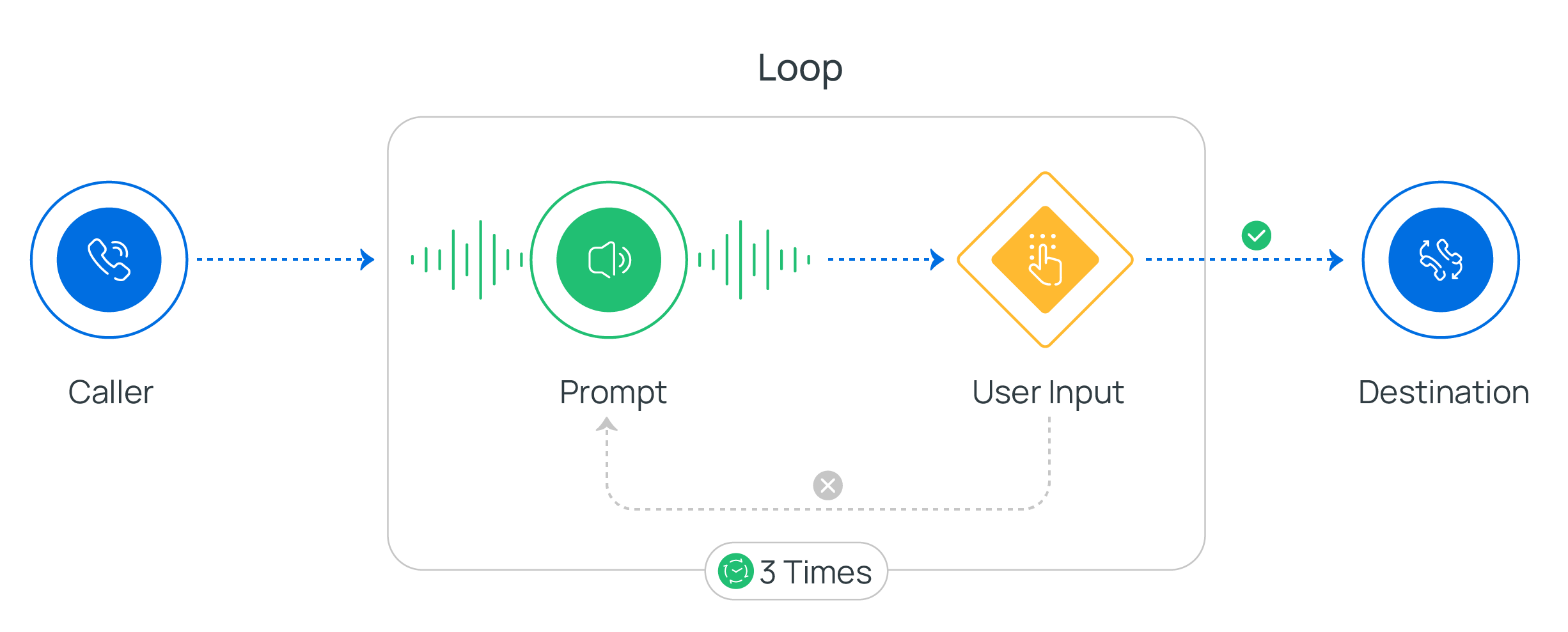

Loop component allows a group of components to be executed repeatedly, either for a specified number of times or until a condition is met, helpful in repeating menu options or returning to the previous menu.

Component configuration

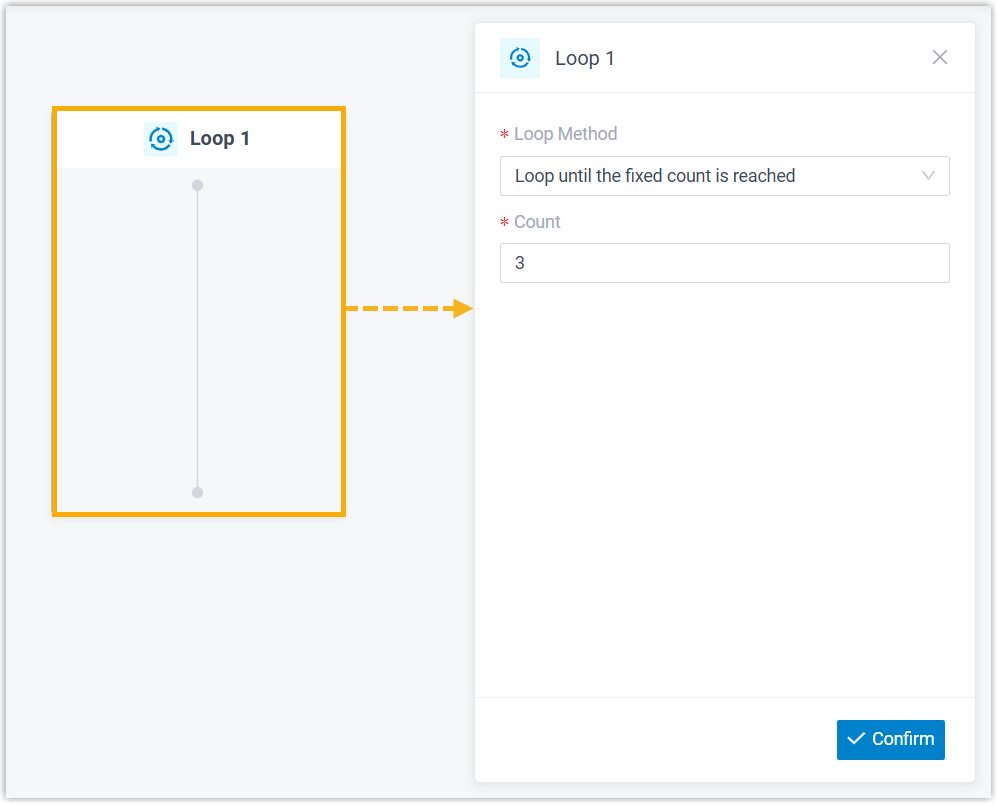

  1. After adding Loop component to a call flow, click Loop component to proceed with the configuration.

  2. Set the loop method, then click Confirm.
    Loop Method Description
    Loop until the fixed count is reached

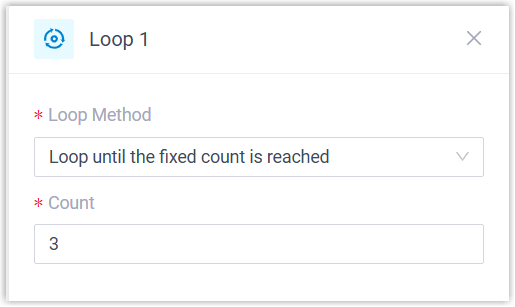

    1. In the Loop Method drop-down list, select Loop until the fixed count is reached.
    2. In the Count field, specify how many times the loop should repeat.
      Note: You can enter a value between 1 and 99.
    Loop while condition is true

    1. In the Loop Method drop-down list, select Loop while condition is true.
    2. In the Expression field, enter a function.

      Example: FX_EQUAL($Session.ani,"1001")

      In this example, a call will enter the loop when the Caller ID is 1001.

    For more information about the function syntax, see Variables and Functions in Yeastar Expression.

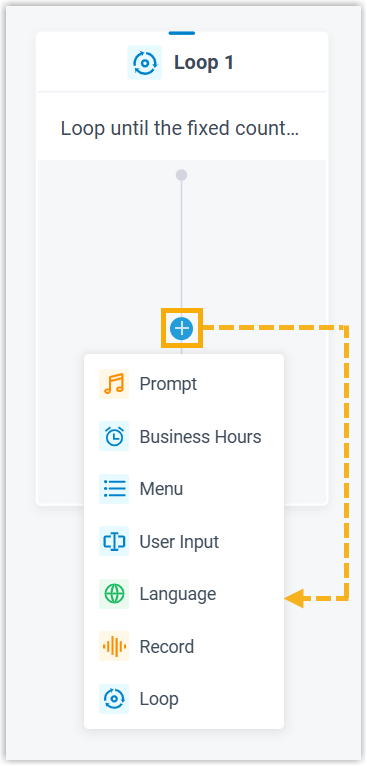

  3. Click inside the loop to add the components that you want to repeat.
    Note: If you add a nested Loop component, up to 3 levels of nesting are supported.

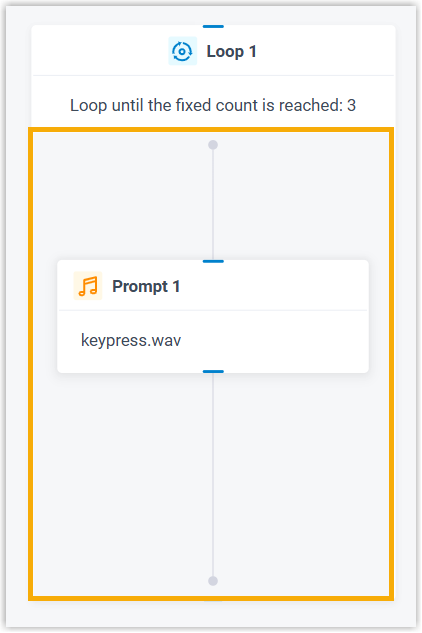

    The components to be repeated will appear inside the Loop component.

Component connections

Loop component can be connected to one component, which will be executed after the loop completes. You can connect any of the components listed below.

Component Description
Prompt

Prompt component allows you to play audio prompt(s) or a text-to-speech message to callers.

For more information, see Prompt.
Business Hours

Business Hours component allows you to route calls to different destinations based on the time of day.

For more information, see Business Hours.
Menu Menu component allows you to present callers with a set of menu options, and route calls based on the DTMF digit they press.

For more information, see Menu.
User Input

User Input component allows you to collect DTMF digits from callers, typically used with Condition component to evaluate user input and route calls.

For more information, see User Input.
Language

Language component allows you to change the system prompt language for subsequent components in a call flow.

For more information, see Language.
Record Record component allows you to start recording a call upon the caller being connected to another participant, and optionally configure prompts to inform call participants at the start and during the recording. Alternatively, you can use the component to disable call recording for calls that are supposed to be recorded.

For more information, see Record.
Dial by Number

Dial by Number component allows callers to directly dial a number to reach the destination.

For more information, see Dial by Number.
Dial by Name

Dial by Name component is one of the end components to terminate caller's connection to the current call flow. It allows callers to reach extension user by entering the first three letters of the user's name.

For more information, see Dial by Name.
Transfer

Transfer component is one of the end components to terminate caller's connection to the current call flow. It allows you to transfer callers to a designated destination, and optionally configure prompts to inform them of the transfer.

For more information, see Transfer.
Hang Up Call

Hang Up Call component is one of the end components to terminate caller's connection to the current call flow. When callers are routed to the component, the call will be disconnected.

For more information, see Hang Up Call.
Condition Condition component allows routing calls based on logical expressions.

For more information, see Condition.
Loop Loop component allows a group of components to be executed repeatedly, either for a specified number of times or until a condition is met.

For more information, see Loop.
Developer Developer component allows you to query and update data from PBX-native database or third-party database.
For more information, see the following topics:
