Get Queue Agent

This topic provides an overview of the Get Queue Agent component, and describes its configuration, variables, as well as supported connections.

Component introduction

Get Queue Agent component allows you to query a list of agents with specific status(es) from a specific queue.

You can either select a queue directly, or configure an expression to dynamically specify the target queue, and then select agent status(es) to filter agents accordingly. The query results are stored in variables, which can be used as input for subsequent components or for condition evaluation.

Component configuration

  1. After adding Developer component to a call flow, click Developer component to proceed with the configuration.

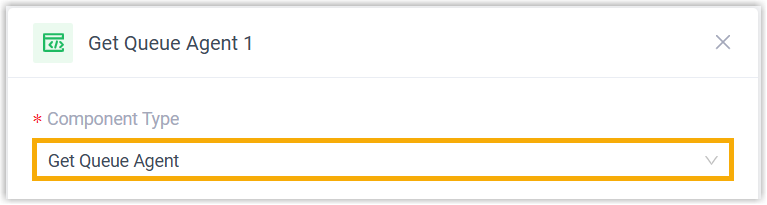

  2. In the Component Type drop-down list, select Get Queue Agent.

  3. Specify the target queue using one of the following methods.

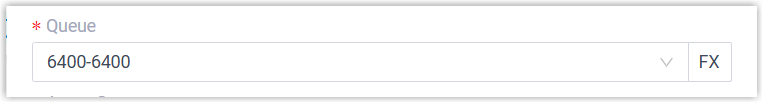

    • Queue: Select a specific queue from the drop-down list.

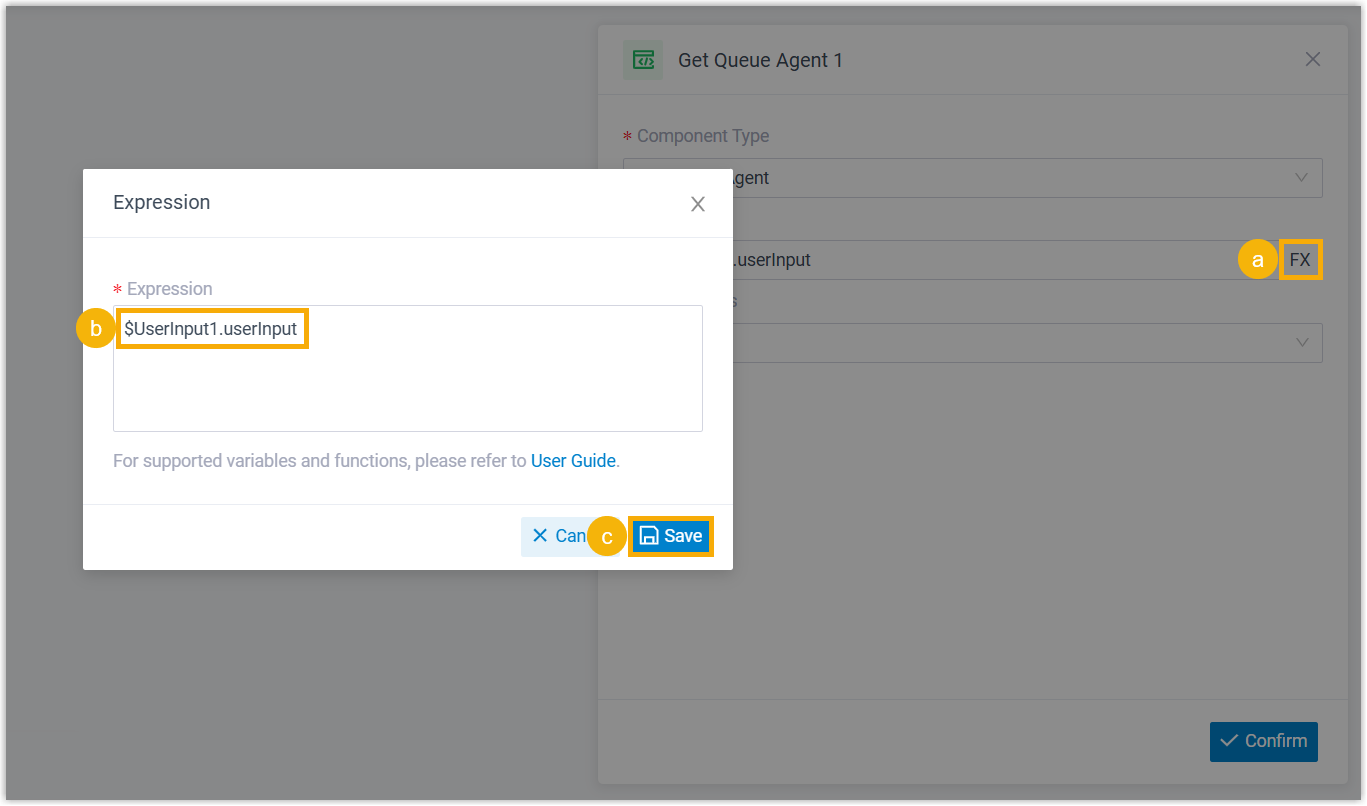

    • : Click the icon to configure an expression.

      For example, enter $UserInput1.userInput to retrieve the queue number that the caller entered.

      Note: For more information about the expression, see Variables and Functions in Yeastar Expression.

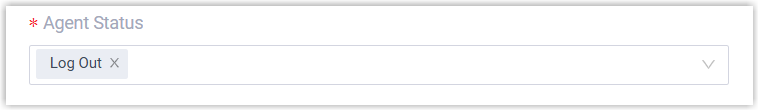

  4. In the Agent Status drop-down list, select one or more agent statuses.

  5. At the bottom-right corner, click Confirm.

Component variables

When a Get Queue Agent component is added to a call flow, the system stores agent information in variables. These variables can be referenced in expression-supported components, such as Condition or Developer, to retrieve the agent data and respond accordingly based on the result.

Note: Since Get Queue Agent component can be added multiple times in a call flow, an index is appended to each component (e.g. Get Queue Agent 1, Get Queue Agent 2) based on the order in which the components are added. To retrieve data from the right component, the component variable must contain the corresponding index.
Variable Type Description Example Value
$GetQueueAgent{index}.agentList Object

The list of agents with a specific status in a specific queue, returning each agent's extension number as well as their current status.

"1001,Log Out;1003,Log Out;1004,Log Out"
$GetQueueAgent{index}.agentNumberList Object The list of agents with a specific status in a specific queue, returning each agent's extension number. "1001,1003,1004"
Tip: You can use the following functions to get the values from the resulting list:
  • GET_LIST_ITEM_COUNT: Return the number of items in the list.

    For example, use FX_GREATER_THAN(FX_GET_LIST_ITEM_COUNT($GetQueueAgent1.agentNumberList),0) to check if the number of logged-in agents is greater than 0.

  • GET_LIST_ITEM: Retrieve the value at the specified index in the list.

    For example, use FX_GET_LIST_ITEM($GetQueueAgent1.agentNumberList,2) to get the third agent in the list.

Component connections

Get Queue Agent component can be connected to one component, which can be any of the components listed below.

Component Description
Prompt

Prompt component allows you to play audio prompt(s) or a text-to-speech message to callers.

For more information, see Prompt.
Business Hours

Business Hours component allows you to route calls to different destinations based on the time of day.

For more information, see Business Hours.
Menu Menu component allows you to present callers with a set of menu options, and route calls based on the DTMF digit they press.

For more information, see Menu.
User Input

User Input component allows you to collect DTMF digits from callers, typically used with Condition component to evaluate user input and route calls.

For more information, see User Input.
Language

Language component allows you to change the system prompt language for subsequent components in a call flow.

For more information, see Language.
Record Record component allows you to start recording a call upon the caller being connected to another participant, and optionally configure prompts to inform call participants at the start and during the recording. Alternatively, you can use the component to disable call recording for calls that are supposed to be recorded.

For more information, see Record.
Dial by Number

Dial by Number component allows callers to directly dial a number to reach the destination.

For more information, see Dial by Number.
Dial by Name

Dial by Name component is one of the end components to terminate caller's connection to the current call flow. It allows callers to reach extension user by entering the first three letters of the user's name.

For more information, see Dial by Name.
Transfer

Transfer component is one of the end components to terminate caller's connection to the current call flow. It allows you to transfer callers to a designated destination, and optionally configure prompts to inform them of the transfer.

For more information, see Transfer.
Hang Up Call

Hang Up Call component is one of the end components to terminate caller's connection to the current call flow. When callers are routed to the component, the call will be disconnected.

For more information, see Hang Up Call.
Condition Condition component allows routing calls based on logical expressions.

For more information, see Condition.
Loop Loop component allows a group of components to be executed repeatedly, either for a specified number of times or until a condition is met.

For more information, see Loop.
Developer Developer component allows you to query and update data from PBX-native database or third-party database.
For more information, see the following topics:
