Check Onsite Proxy Instances of a P-series Cloud PBX

This topic describes how to view Yeastar Onsite Proxy instances associated with a P-series Cloud PBX and the details of each instance (such as instance name, version number, connection status, etc.).

Requirements

The firmware version of P-series Cloud PBX is 84.23.0.x or later.

Prerequisites

You have the permission to monitor Yeastar Onsite Proxy instances.
Tip: If the Onsite Proxy tab (Path: Cloud PBX > PBX > ) is not visible, contact your service provider to obtain this permission.

Procedure

  1. Log in to Yeastar Central Management, go to Cloud PBX > PBX.
  2. Click beside the desired PBX.
  3. In the PBX details page, click the Onsite Proxy tab.

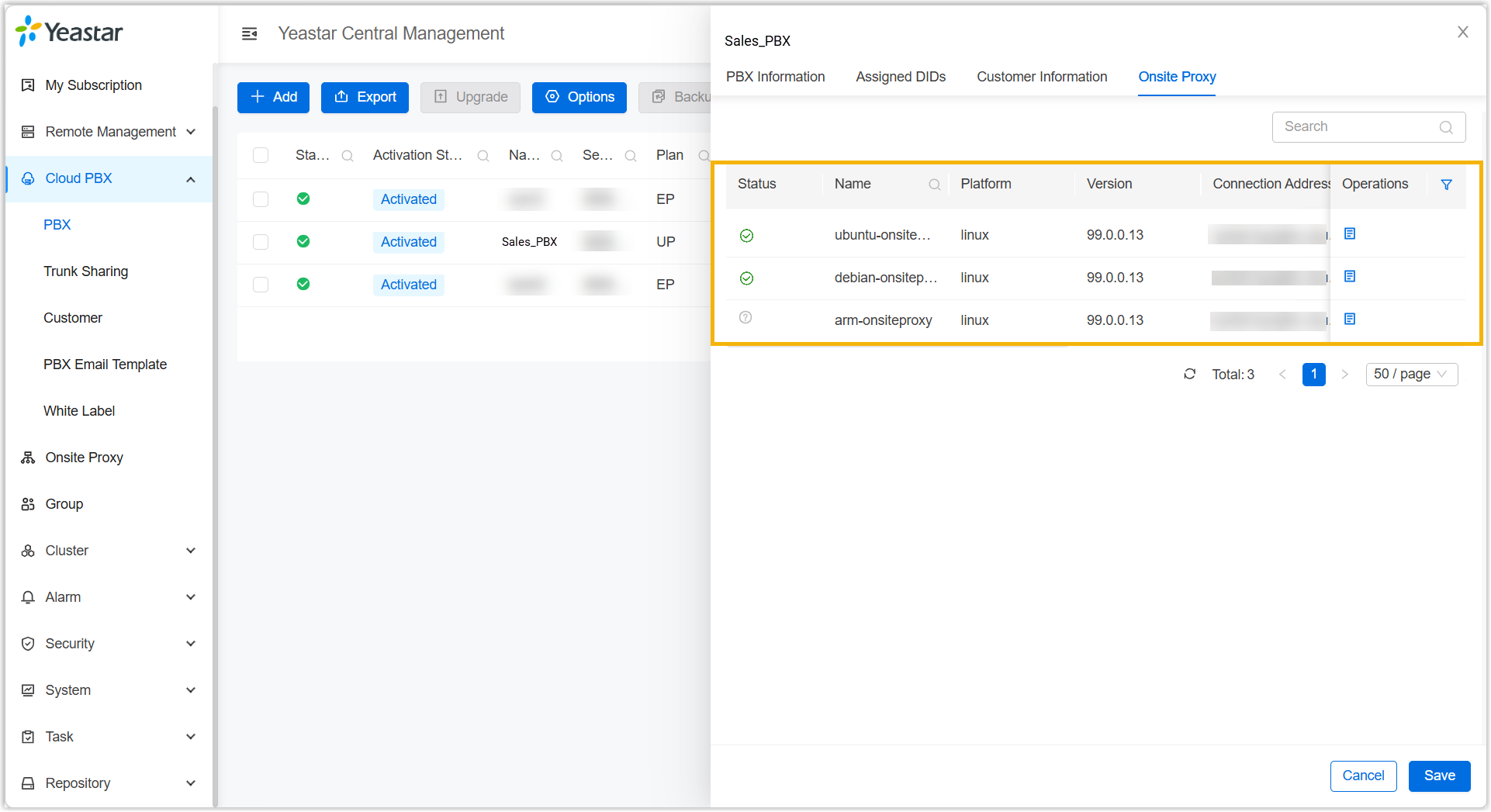

    The list shows Onsite Proxy instances associated with the Cloud PBX.

  4. Click beside the desired Onsite Proxy instance.

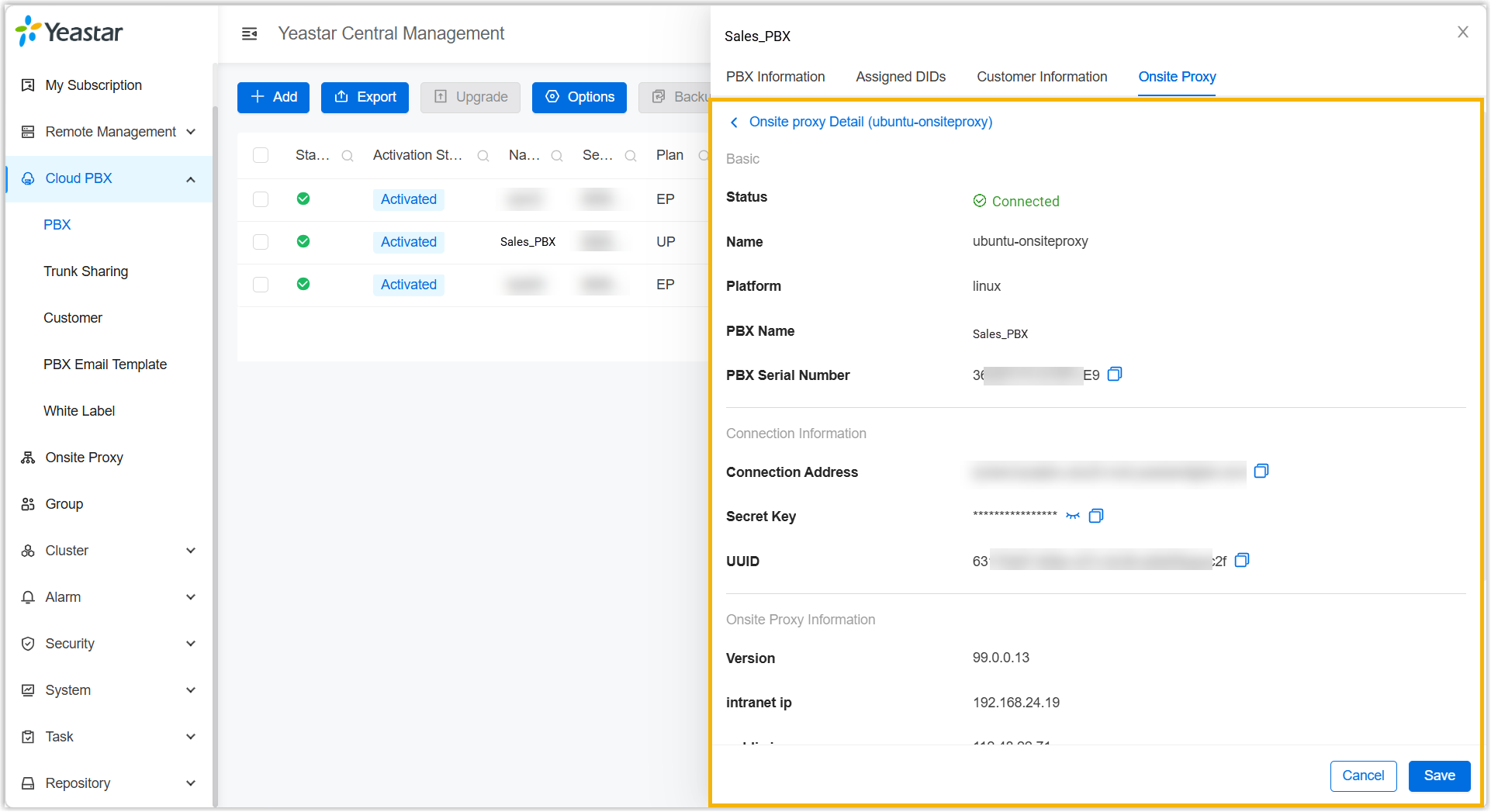

    A detail window of the instance pops up. For more detailed information, see Onsite Proxy Instance Information.
