Integrate Yeastar P-Series Software Edition with HubSpot CRM
This topic describes how to integrate Yeastar P-Series Software Edition with HubSpot CRM.
Prerequisites
- You have created a CRM application on HubSpot using a developer account.
- You need a standard account with Super Admin privilege for the integration.
Procedure
Step 1. Make Authorization Request to HubSpot CRM
- Log in to PBX web portal, go to .
- Click HubSpot.
- In the Authorization section, enter the application
authorization information.
- Client ID: Paste the Client ID obtained from the created HubSpot application.
- Client Secret: Paste the Client Secret obtained from the created HubSpot application.
- Click Save.
A new browser page is launched to prompt you to choose an account for integration.
-
Select a standard HubSpot account with Super Admin privilege, and click Choose Account.Important: Do NOT select a developer account, otherwise the integration would fail.
The page will then show the permission grant request of the application.
- Check the permissions and click Connect app to proceed with the authorization.Note: You can safely ignore the warning stating that “You’re connecting an unverified app”, as this app is created by yourself.
If the authorization succeeds, the web page will display Authorization succeeded!.
On the PBX configuration page, a pop-up window displays the authentication result. - Click OK to confirm.
The Status field displays Connected, indicating that the HubSpot CRM integration is successfully set up.
Step 2. Associate HubSpot CRM users with PBX extensions

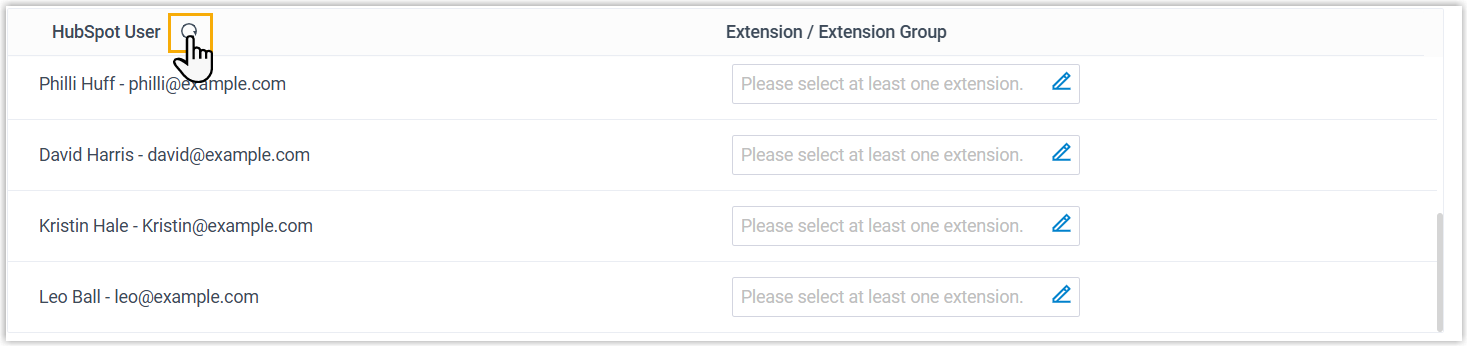

- On the CRM integration page, click
beside the HubSpot User to synchronize the latest list of HubSpot CRM users.
- Associate the HubSpot users with PBX extensions.

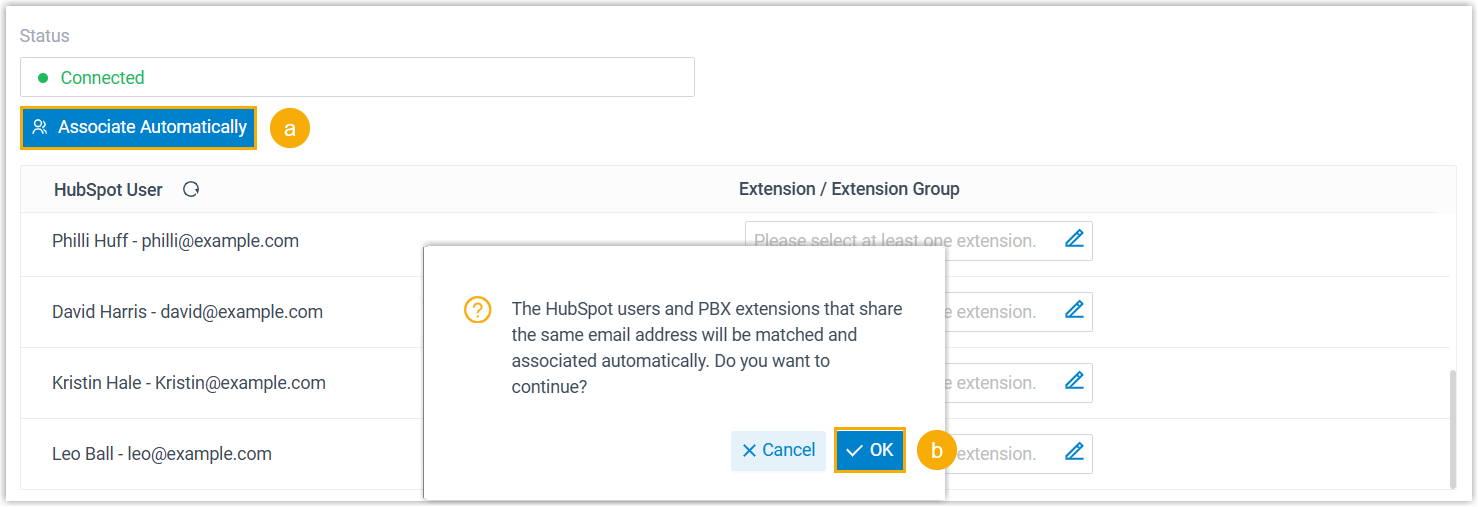

- Associate automatically
- If users bind the same email address to their HubSpot accounts
and PBX extensions, you can implement automatic association of
their HubSpot accounts and PBX extensions as follows:
- Click the Associate Automatically button.
- In the pop-up window, click OK.
- Click Save.

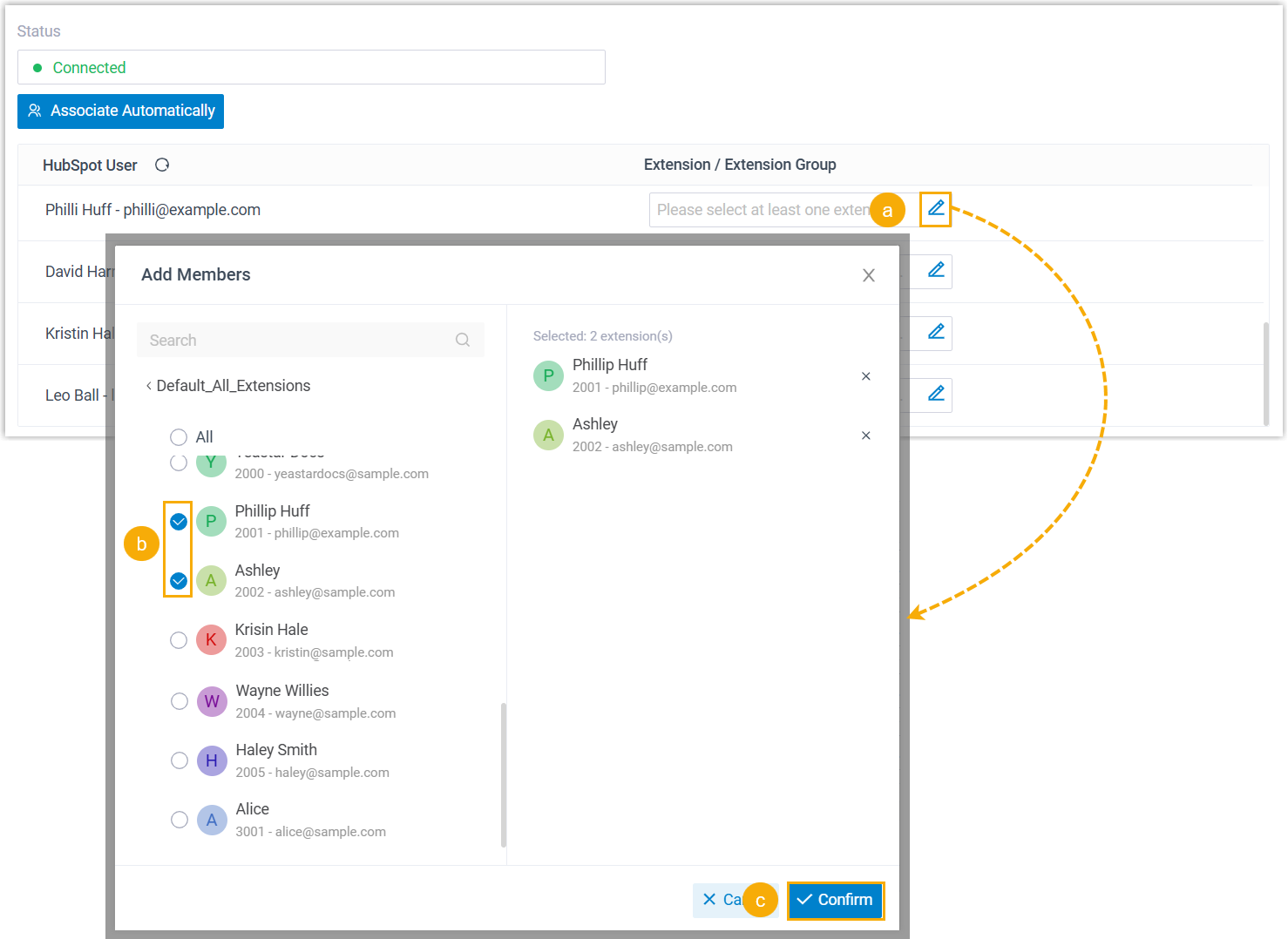

- Associate manually
- If a user binds different email addresses to his or her HubSpot
account and PBX extension, you need to manually associate the
user's HubSpot account and PBX extension.
- In the Extension drop-down list beside a desired HubSpot user, select the desired user's extension.
- Click Save.
Result
- The integration of Yeastar P-Series Software Edition and HubSpot CRM is set up.
- HubSpot users can make or receive calls with their PBX extensions.
