Integrate Yeastar P-Series Cloud Edition with Microsoft Teams

The direct integration of Yeastar P-Series Cloud Edition and Microsoft Teams requires each user to install Yeastar Linkus for Teams on their own Teams client and log in with their extension accounts or Microsoft accounts. After the integration, Teams users can make, receive, and control calls directly on Teams.

This topic gives an example on how an individual account can integrate Yeastar P-Series Cloud Edition with Microsoft Teams.

Prerequisites

You have obtained the domain name of your Linkus Web Client.

Step 1. Install 'Yeastar Linkus for Teams' on Microsoft Teams

  1. Log in to Microsoft Teams.
  2. On the left bar, click Apps and search for Yeastar Linkus.

  3. On the Apps section, select Yeastar Linkus and click Add.

    You are redirected to a tab, where you can access Linkus Web Client and log in.

Step 2. Access Linkus Web Client within Teams

  1. Under the Phone Extension tab, enter the domain name of your Linkus Web Client.
  2. Click Access the PBX.

    You are directed to the login page.

Step 3. Log in to Linkus Web Client within Teams

Choose one of the following methods to log in to Linkus Web Client within Teams.
Log in with Yeastar extension account
  1. On the login page, enter the credential of your extension account, then click LOG IN.
    • Username: The email address of your extension account.
    • Password: The password of your extension account.

  2. If you have set up two-factor authentication, you need to enter an authentication code.

    1. Enter the authentication code provided by an authenticator application or email.
    2. Optional: Select the checkbox of Trusted Device.
      Note: For the device from which you log in most frequently, you can select the option to add it as a trusted device. In this way, you don't have to re-enter an authentication code with this device for the next 180 days.
    3. Click LOG IN.
  3. In the pop-up window, decide whether to allow Yeastar Linkus to send you notifications when receiving Linkus chat messages and calls.

Log in with Microsoft account
Important: You can log in with Microsoft account only when the following requirements are met:
  1. On the login page, click Sign in with Microsoft.

  2. In the pop-up window, log in with your Microsoft account.
  3. In the pop-up window, decide whether to allow Yeastar Linkus to send you notifications when receiving Linkus chat messages and calls.

Step 4. Set up and select the endpoint to make and receive calls

You can control calls in Microsoft Teams using either of the following methods:
Enable CTI mode to control target endpoints
Scenario Instruction
Use Linkus Web Client as calling endpoint
  1. At the top-right corner, click to open and access Linkus Web Client.

    is changed to , indicating that you can now control Linkus Web Client via CTI and use it for calls.
Use Linkus Desktop Client as calling endpoint
  1. Upgrade Linkus Desktop Client to version 1.5.4 or later.
  2. Log in to Linkus Desktop Client with your extension.

    is changed to , indicating that you can now control Linkus Desktop Client via CTI and use it for calls.
Use IP Phone as calling endpoint
  1. Use Yealink / Fanvil / Snom IP phone whose phone model and firmware version meet the requirements listed in the Yeastar CTI - Supported Devices.
  2. Register your extension on IP phone.

    is changed to , indicating that you can now control IP phone via CTI and use it for calls.
Install and launch Yeastar for Teams Desktop Plugin
Note: Operating system version must meet the following requirements:
  • Windows: Windows 10 or later
  • macOS: macOS 12 or later

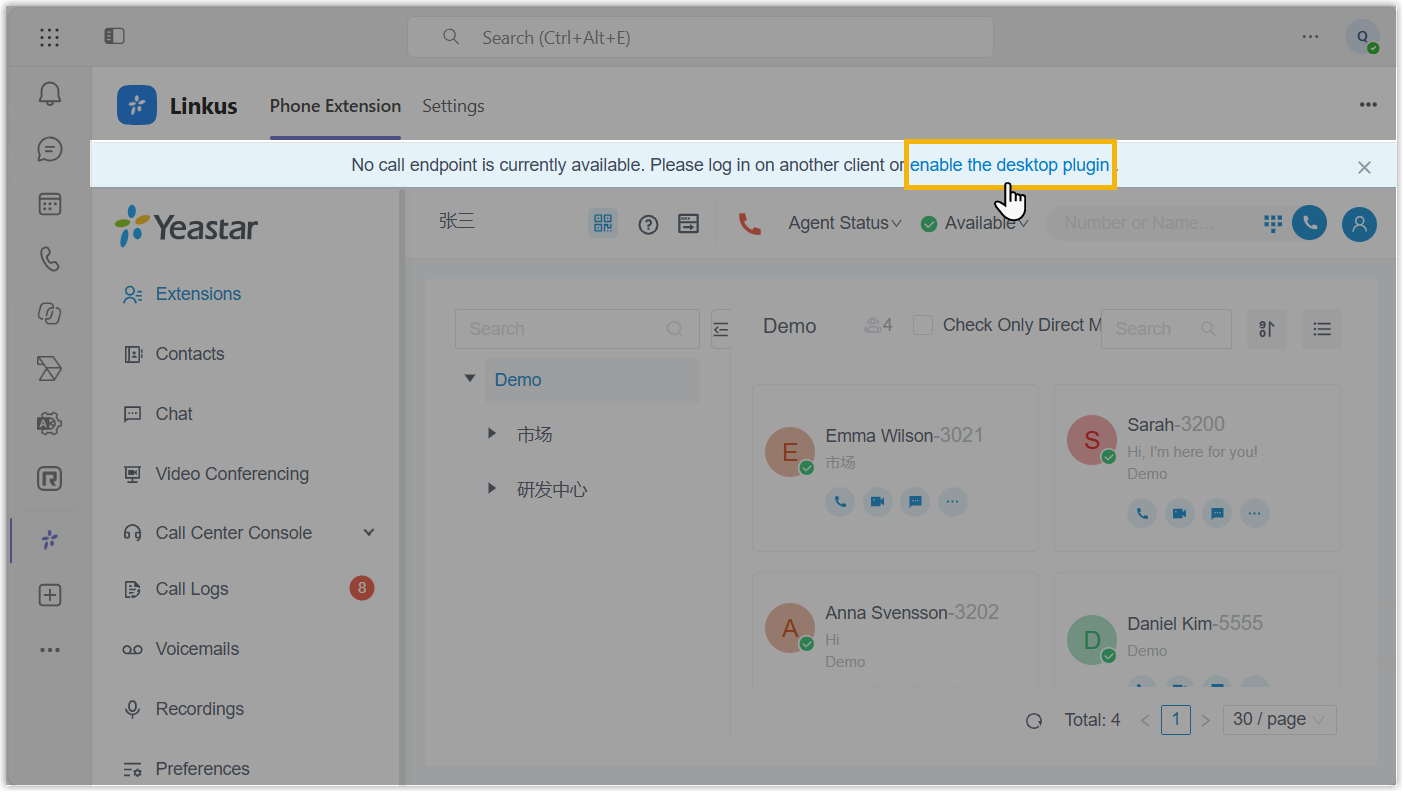

  1. At the top prompt, click enable the desktop plugin.

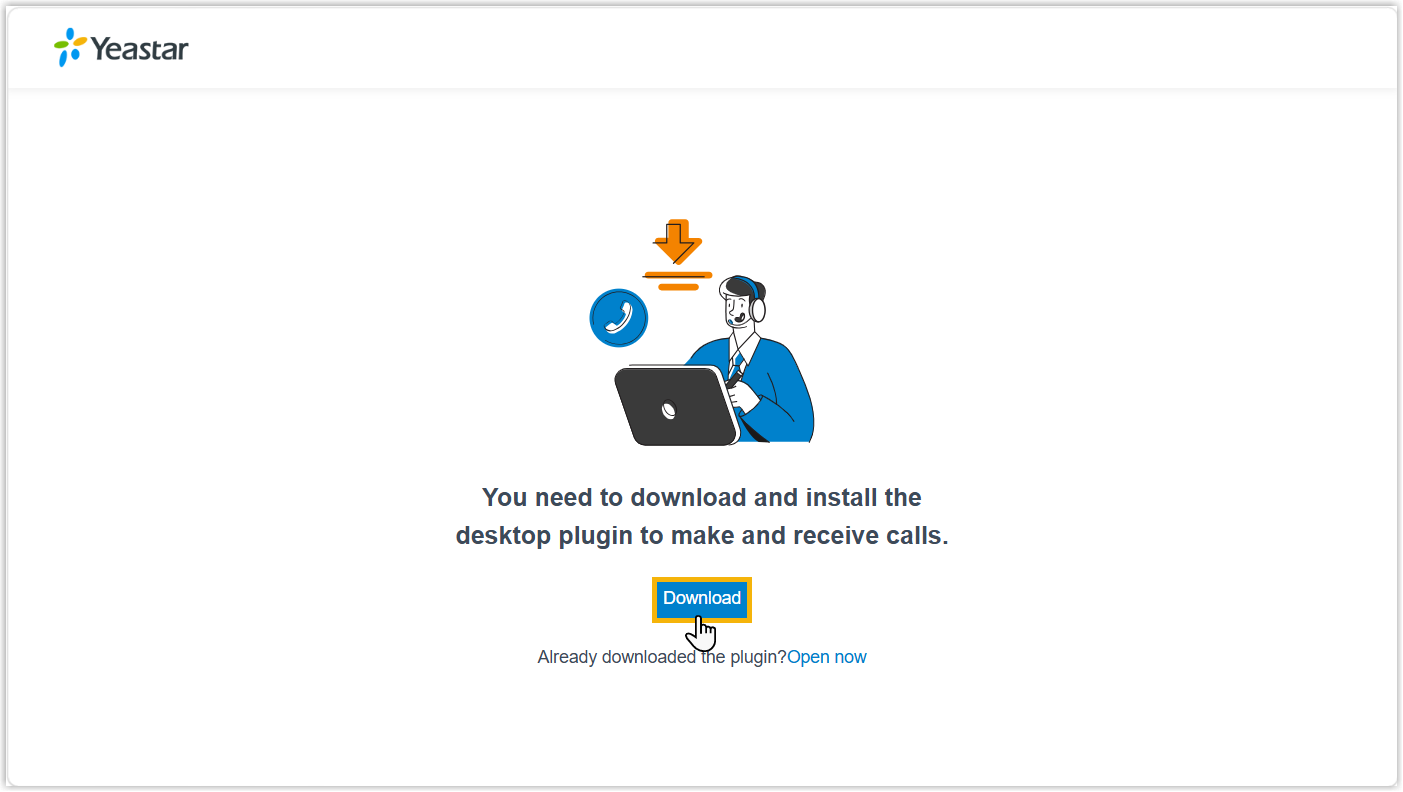

    The plugin download page is automatically opened in a browser.

  2. In the plugin download page, click Download.

    The installation package of Yeastar for Teams Desktop Plugin is downloaded to your computer.

  3. Run the installer and complete the installation.
  4. Launch the Yeastar for Teams Desktop Plugin.

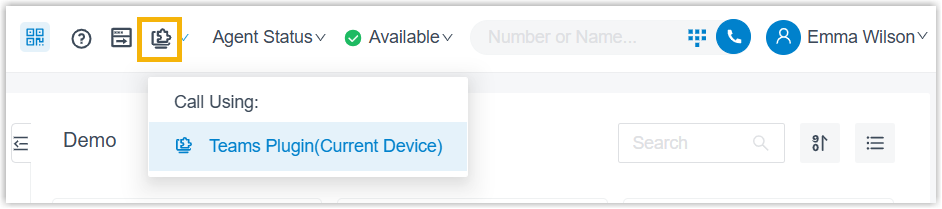

    On the Linkus Web Client within Teams, is changed to , indicating that you can now control calls in Teams directly via Yeastar for Teams Desktop Plugin. For more information about configuration and call controls for Yeastar for Teams Desktop Plugin, see Yeastar for Teams Desktop Plugin Overview.

(Optional) Step 5. Pin Yeastar Linkus

You can pin Yeastar Linkus to your Teams navigation bar for easy access.

  1. On the left bar, right click Yeastar Linkus.
  2. In the pop-up window, click Pin.

    Yeastar Linkus is pinned to the left bar of your Teams client.

Result

You can now make and receive internal or external calls within Microsoft Teams through the PBX.
