Check Onsite Proxy Instances of P-series Software Edition

This topic describes how to view Yeastar Onsite Proxy instances associated with a P-series Software Edition and the details of each instance (such as instance name, version number, connection status, etc.).

Requirements

  • The firmware of Yeastar Central Management is 87.19.0.27 or later.

  • The firmware version of P-series Software PBX is 83.23.0.23 or later.

Procedure

  1. Log in to Yeastar Central Management, go to Remote Management > My Devices > P-Series.
  2. Click beside the desired PBX.
  3. In the PBX details page, click the Onsite Proxy tab.

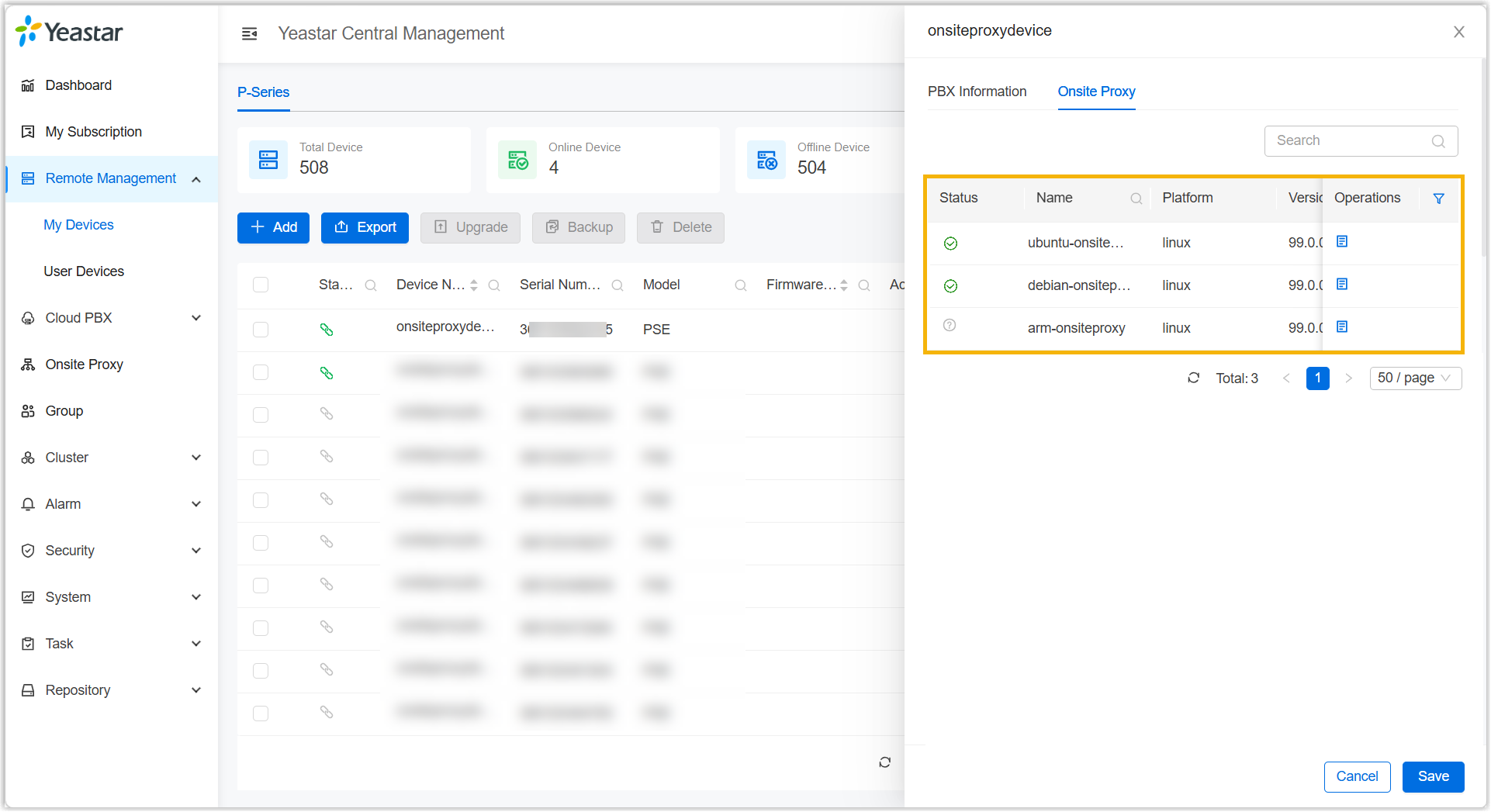

    The list shows Onsite Proxy instances associated with the PBX.

  4. Click beside the desired Onsite Proxy instance.

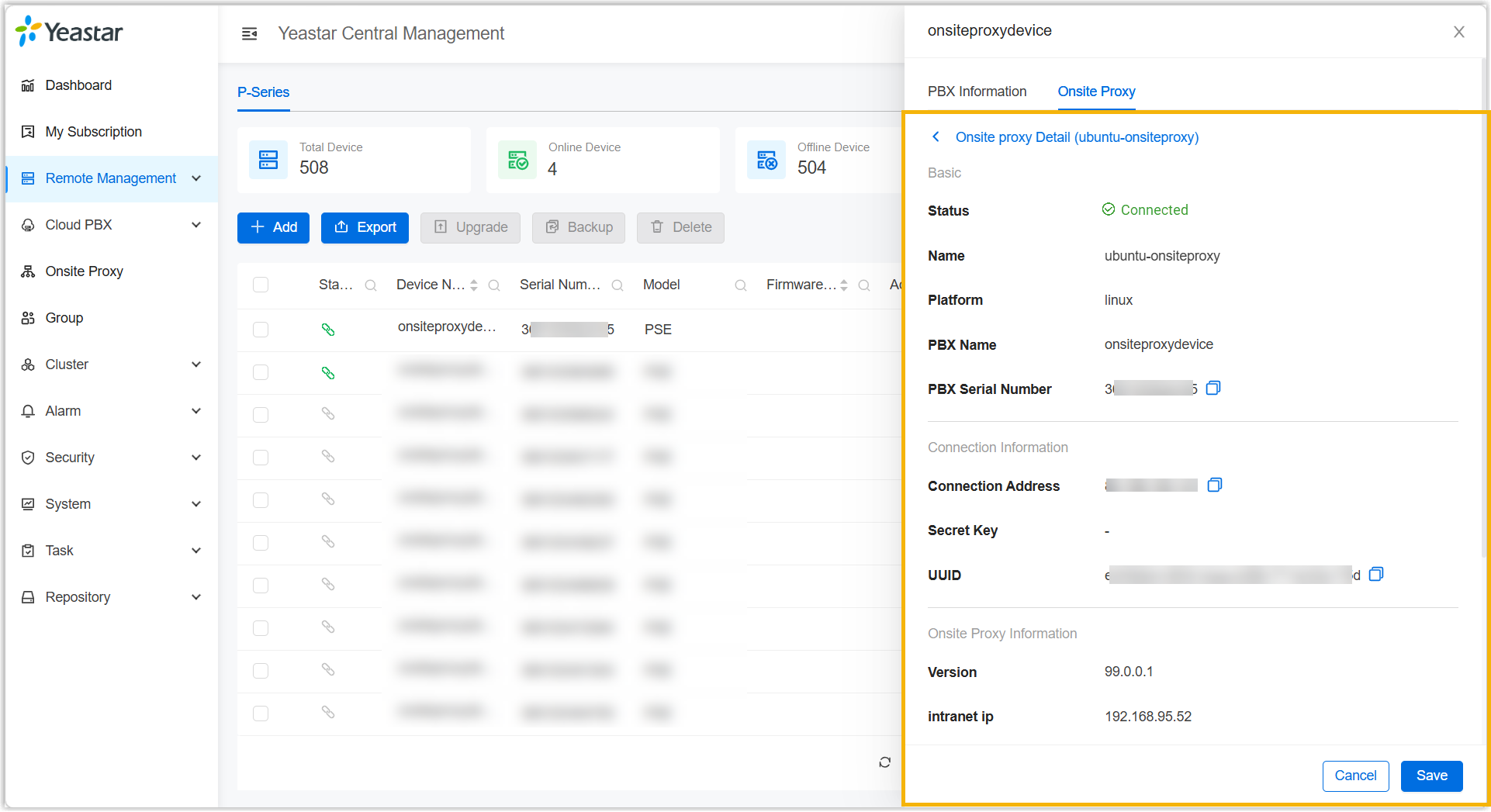

    A sidebar opens on the right, displaying the instance details. For the explanation of the details, see Onsite Proxy Instance Information.
