Add a Tool Manually

This topic describes how to create a custom tool by manually completing the tool configurations on the PBX.

Prerequisites

Obtain the following required information from the third-party API:

Item Description
Endpoint URL The API request address (must use HTTPS).
Request method GET, POST, PUT, PATCH, or DELETE
Parameters Path parameters, header parameters, query parameters, or body parameters required by the API request.
Authentication credentials If the third-party API requires authentication, obtain its static credentials (such as API key, Basic Auth username and password, or static Bearer Token).
Note: Dynamic authentication (e.g., OAuth 2.0) is not supported, as it requires dynamic token acquisition and cannot be pre-configured.

Procedure

  1. Log in to PBX web portal, go to AI > AI Receptionist > Tools.
  2. Click Add.

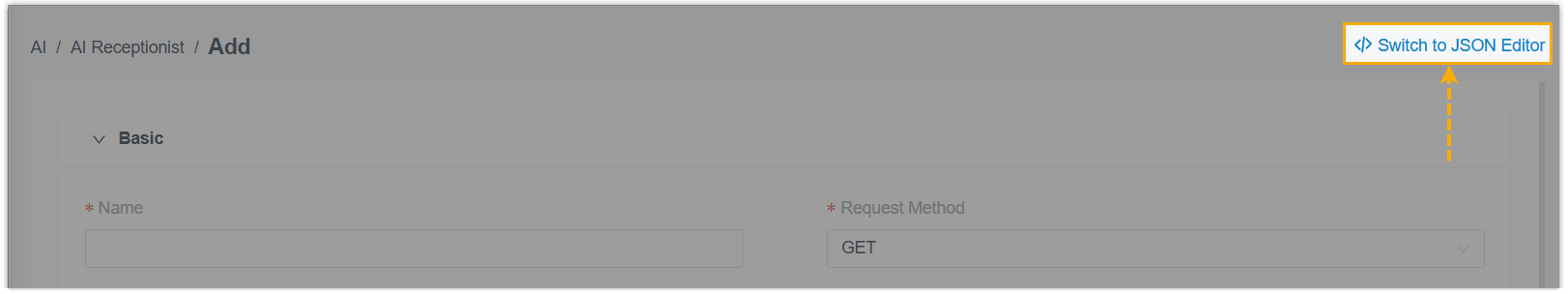

    Tip: You can seamlessly switch between Form Editor and JSON Editor from the top-right corner of the page.

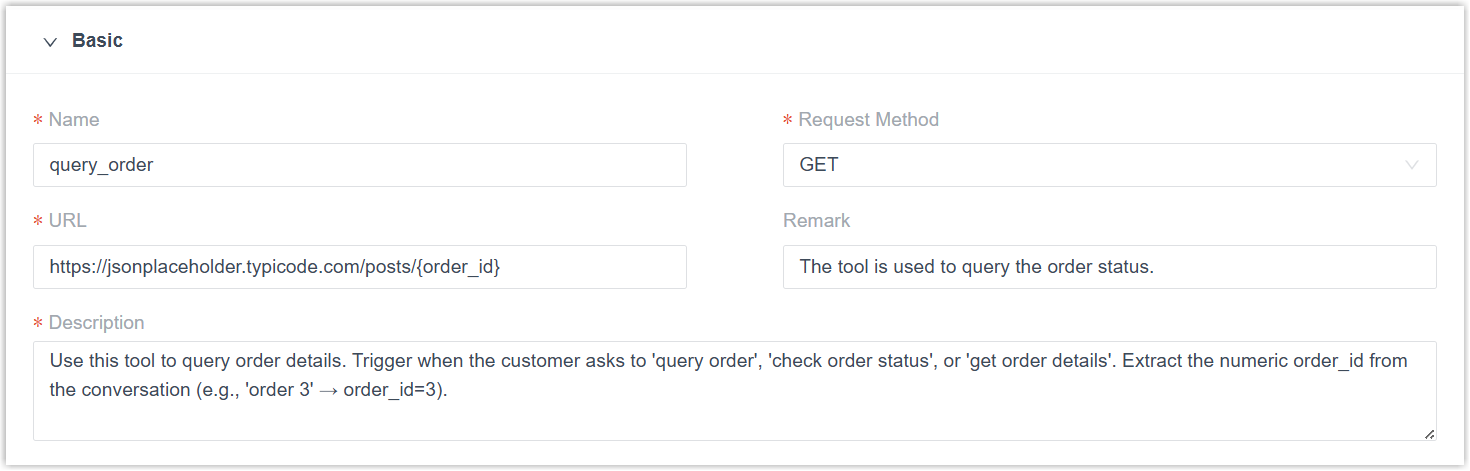

  3. Configure the basic information.

    Setting Description JSON Field & Example
    Name Specify a unique name for the tool.
    Note: Only numbers, letters, underscore (_), and hyphen (-) are allowed.

    "basic.name": "query_order"
    Request Method Select the HTTP method.
    "basic.method": "GET"  //Valid value: GET/POST/PUT/PATCH/DELETE
    URL Enter the API endpoint URL.
    Note:
    • The URL must be start with https://.
    • You can add up to 5 path parameters ({path_param}) in the URL, and the parameter name may only contain numbers, letters, underscore (_), non-consecutive dots, and symbol @. In the subsequent configuration, you can set the AI receptionist to dynamically retrieve the values of these parameters based on the conversation.

    "basic.url":"https://jsonplaceholder.typicode.com/posts/{order_id}"
    Remark Optional. Enter a remark to help you quickly identify the tool's purpose.
    "basic.remark": "Query order status tool"
    Description Enter a natural language description to instruct the AI receptionist when to use the tool and how it call it.
    "basic.description": "Use this tool to query order details.
 Trigger when customer asks to 'query order', 'check order status',
 or 'get order details'. Extract the numeric order_id from conversation
(e.g., 'order 3' → order_id=3)."

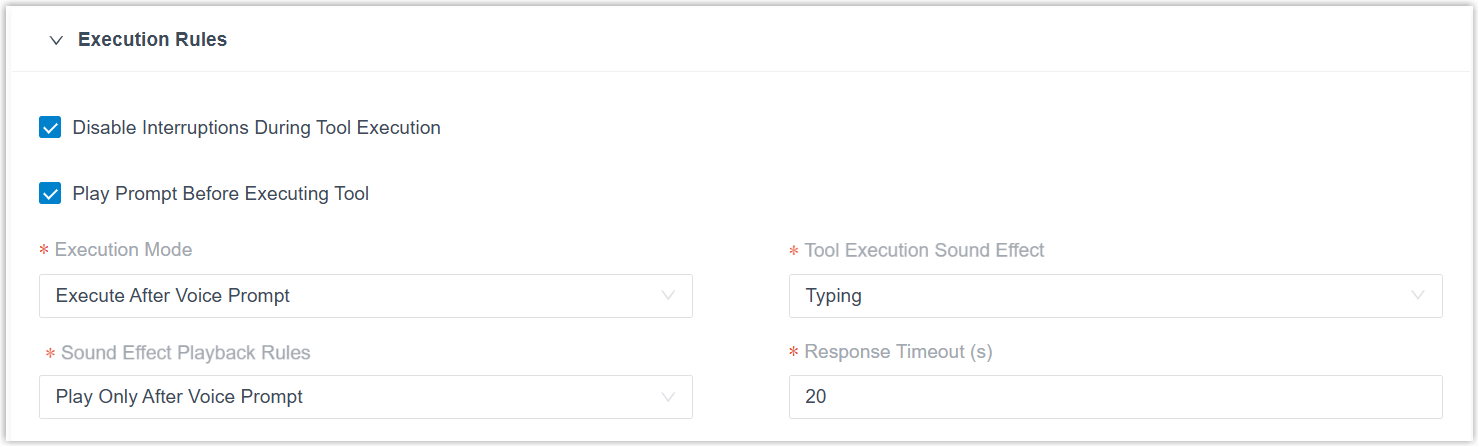

  4. Configure the execution rules.

    Setting Description JSON Field & Example
    Disable Interruptions During Tool Execution

    When selected, callers can not interrupt the AI receptionist while the tool runs.


    "response_settings.disable_interruptions":true
// true = selected, false = unselected
    Play Prompt Before Executing Tool When selected, the AI receptionist always speaks a prompt (e.g., "Let me check that for you") before running the tool.

    When unselected, the AI receptionist decides whether to speak a prompt automatically based on the recent execution latency of the tool. For example, skipping it for fast responses and speaking first for slow ones.


    "response_settings.force_pre_tool_speech":true
// true = selected, false = unselected
    Execution Mode Determines the execution behavior of the tool.
    • Execute Immediately on LLM Request: The tool runs as soon as the AI receptionist requests it.
    • Execute After Voice Prompt: The tool runs after the AI receptionist plays a voice prompt.
    • Async: The tool runs in the background without pausing the conversation. The AI receptionist does not wait for the response and continues speaking immediately.
      Note: This mode is best suited for operations that don't require a response, such as sending an email or triggering an external workflow.

    "response_settings.execution_mode":"lazy"
// Valid value: immediate/lazy/async
    Tool Execution Sound Effect Specify the ambient sound during tool execution.
    Note: This setting is not available when Execution Mode is Async.
    • None: No sound will be played.
    • Typing: Play a keyboard typing effect.
    • Music 1 - Music 4: Play one of the built-in ambient sound.

    "response_settings.tool_call_sound":"Typing"
// Valid value: None/Typing/Music 1/Music 2/Music 3/Music 4
    Sound Effect Playback Rules
    Specify when to play the ambient sound.
    Note: This setting is not available when Execution Mode is Async or Tool Execution Sound Effect is None.
    • Play only After Voice Prompt: Plays only when the AI receptionist speaks a prompt before executing the tool.
    • Always play: Plays during every tool execution, regardless of whether the AI receptionist speaks a prompt first.

    "response_settings.sound_behavior":"with_pre_speech"
// Valid value: with_pre_speech/always_play
    Response Timeout (s) Specify the response timeout duration (in seconds).
    Note: The value must be between 5 and 120 seconds.

    "response_settings.response_timeout":20
  5. Configure request parameters.

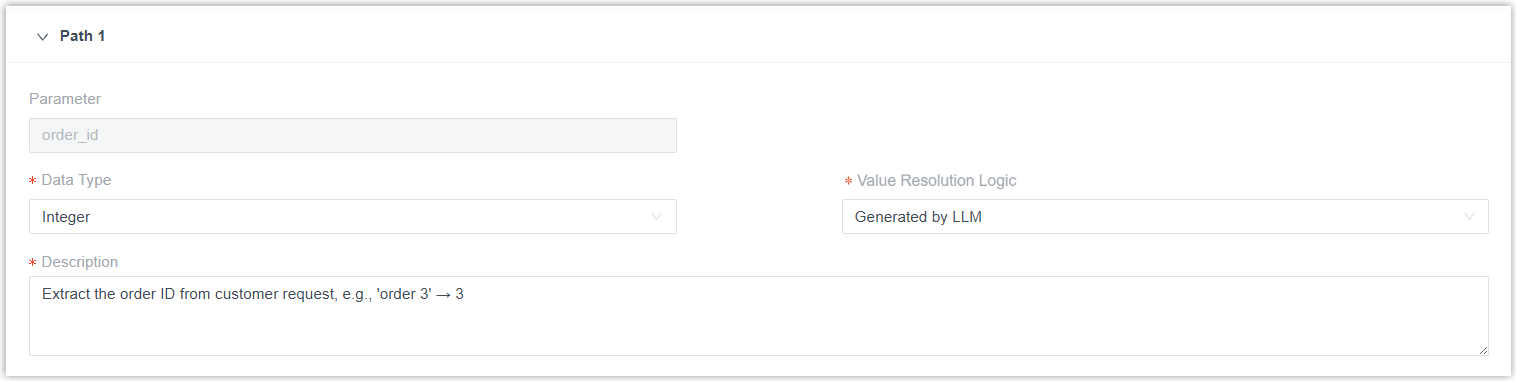

    Path parameters
    Path parameters are variables embedded in the URL path using curly braces {}. They are automatically extracted from the endpoint URL of the tool.
    Setting Description JSON Field & Example
    Parameter Parameter name. The name is auto-detected from the URL path and is read-only.
    "path_params[].parameter":"id"
    Data Type Select the data type of the parameter.
    • String: Text-based information such as names, emails, and addresses. Letters, numbers, and special characters are allowed.
    • Boolean: Yes/no values, such as subscription consent or terms acceptance.
    • Integer: Whole numbers without decimals, such as quantity, age, or ratings.
    • Number: Numeric values that can be integers or decimals, such as order amount, discount rate, or product weight.

    "path_params[].data_type":"String"
// Valid value: Boolean/Integer/Number/String
    Value Resolution Logic
    Determine how the parameter value is obtained.
    • Constant Value: Use a fixed value specified in the Value field.
    • Generated by LLM: AI receptionist extracts or generates the value dynamically.

    "path_params[].value_logic":"llm"
// Valid value: constant/llm
    Value Specify a fixed value for the parameter.
    Note: This setting is available only when Value Resolution Logic is Constant Value.

    "path_params[].constant_value":"123"
// Should be True or False when "data_type" is Boolean
    Description Enter a natural language description to instruct the AI receptionist how to extract or generate the value from the call.
    Note: This setting is available only when Value Resolution Logic is Generated by LLM.

    "path_params[].description": "Extract the order ID from customer request, e.g., 'order 3' → 3"
    Optional Value Optional. Click Add Optional Value to add predefined values that the AI receptionist can select from when the information matches one of the specified options.
    Note:
    • This setting is available only when Data Type is String and Value Resolution Logic is Generated by LLM.
    • Supports up to 10 options.

    "path_params[].optional_values": ["standard", "express", "overnight"]

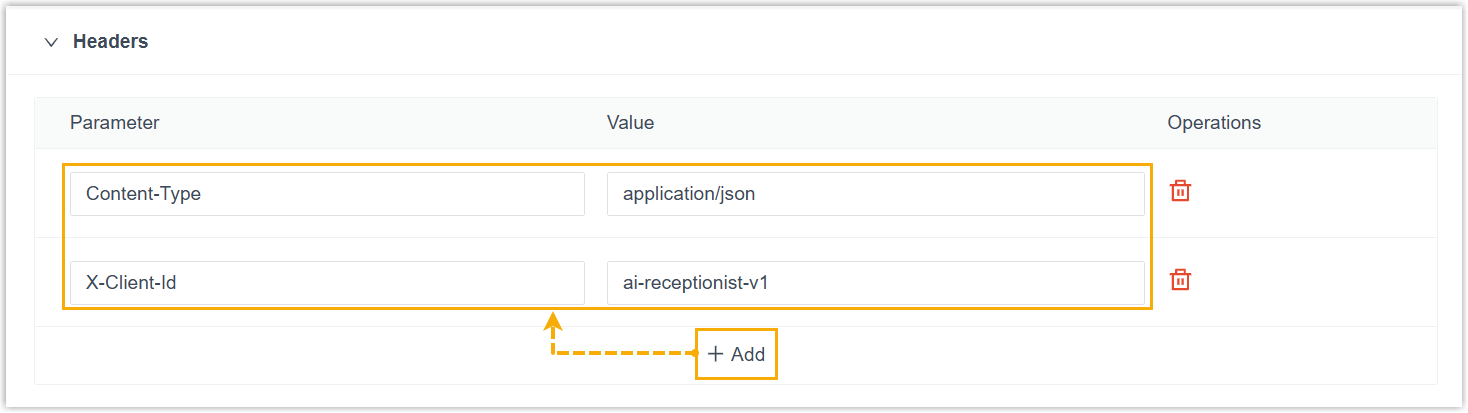

    Headers
    Add and specify headers to be included in the request.
    Note:
    • Only supports static header values. If authentication needs to be passed in headers, use static credentials (e.g., Authorization: Bearer <Your_API_KEY>).
    • Supports up to 20 headers.

    Setting Description JSON Field & Example
    Parameter Header name.
    "headers[].parameter": "Content-Type"
    Value Fixed header value.
    Note: Dynamic values are not supported.

    "headers[].value": "application/json"

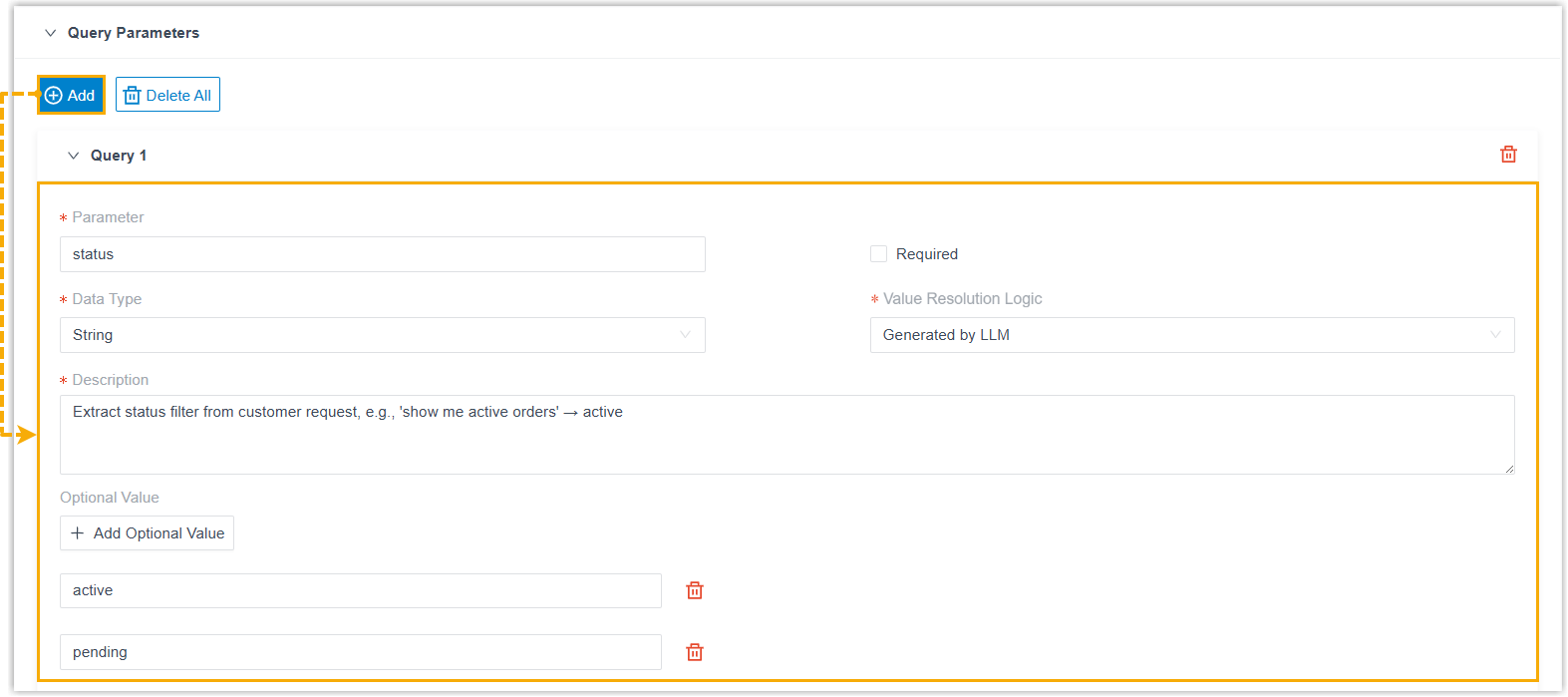

    Query parameters
    Add and specify the query parameters to be included in the request.
    Note: Supports up to 10 query parameters.
    Setting Description JSON Field & Example
    Parameter Parameter name.
    Note: Only numbers, letters, underscore (_), non-consecutive dots, and symbol @ are allowed.

    "query_params[].parameter": "status"
    Required Whether the parameter must be provided.

    If selected, the AI receptionist will repeatedly prompt the caller if the information is not provided.


    "query_params[].required": false
    Data Type Select the data type of the parameter.
    • String: Text-based information such as names, emails, and addresses. Letters, numbers, and special characters are allowed.
    • Boolean: Yes/no values, such as subscription consent or terms acceptance.
    • Integer: Whole numbers without decimals, such as quantity, age, or ratings.
    • Number: Numeric values that can be integers or decimals, such as order amount, discount rate, or product weight.

    "query_params[].data_type": "String"
// Valid value: Boolean/Integer/Number/String
    Value Resolution Logic
    Determine how the parameter value is obtained.
    • Constant Value: Use a fixed value specified in the Value field.
    • Generated by LLM: AI receptionist extracts or generates the value dynamically.

    "query_params[].value_logic": "llm"
// Valid value: constant/llm
    Value Specify a fixed value for the parameter.
    Note: This setting is available only when Value Resolution Logic is Constant Value.

    "query_params[].constant_value": "active"
// Should be True or False when "data_type" is Boolean
    Description Enter a natural language description to instruct the AI receptionist how to extract or generate the value from the call.
    Note: This setting is available only when Value Resolution Logic is Generated by LLM.

    "query_params[].description": "Extract status filter from customer request, e.g., 'show me active orders' → active."
    Optional Value Optional. Click Add Optional Value to add predefined values that the AI receptionist can select from when the information matches one of the specified options.
    Note:
    • This setting is available only when Data Type is String and Value Resolution Logic is Generated by LLM.
    • Supports up to 10 options.

    "query_params[].optional_values": ["active", "pending", "completed", "cancelled"]

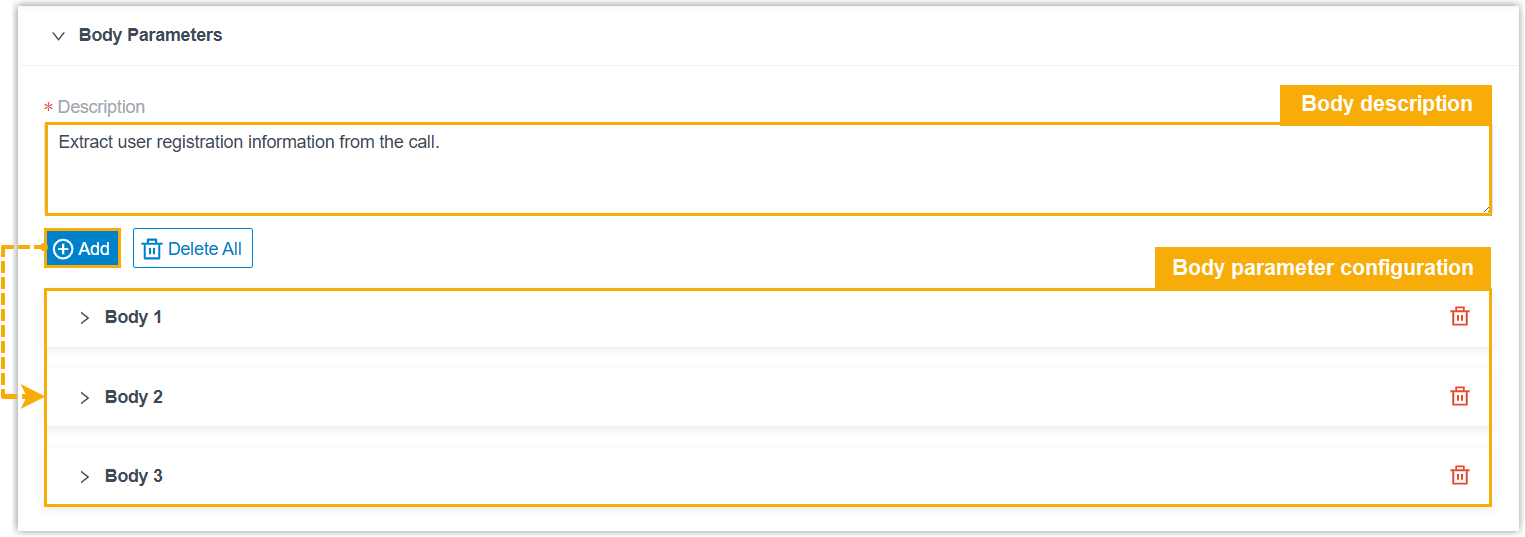

    Body parameters
    Add and specify the JSON body parameters to be included in the request.
    Note:
    • This section appears only when the Request Method is POST, PUT, or PATCH.
    • Supports up to 30 body parameters.
    • Body description
      Setting Description JSON Field & Example
      Description Enter a description to instruct the AI receptionist how to extract the body parameters from the call.
      "body_description":"Extract user registration information from the conversation."

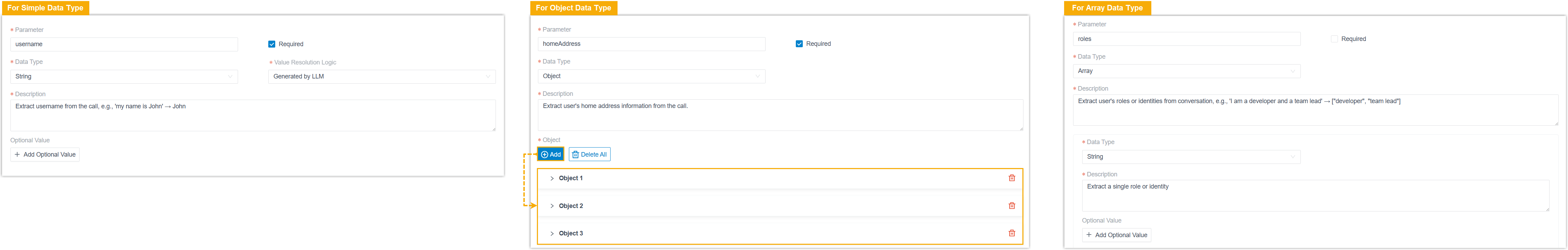

    • Body parameter configuration

      Setting Description JSON Field & Example
      Parameter Parameter name.
      Note: Only numbers, letters, underscore (_), non-consecutive dots, and symbol @ are allowed.

      "body_params[].parameter": "userId"
      Required Whether the parameter must be provided.

      If selected, the AI receptionist will repeatedly prompt the caller if the information is not provided.


      "body_params[].required": true
      Data Type Select the data type of the parameter.
      • String: Text-based information such as names, emails, and addresses. Letters, numbers, and special characters are allowed.
      • Boolean: Yes/no values, such as subscription consent or terms acceptance.
      • Integer: Whole numbers without decimals, such as quantity, age, or ratings.
      • Number: Numeric values that can be integers or decimals, such as order amount, discount rate, or product weight.
      • Object: A key-value pair structure that groups multiple fields of different data types into a single set of information, such as registration information (including username, email, registration date).
      • Array: A list of values of the same type, such as phone numbers, email addresses, or product IDs.

      "body_params[].data_type": "String"
// Valid value: Boolean/Integer/Number/String/Object/Array
      For Boolean/Integer/Number/String data type
      Value Resolution Logic
      Determine how the parameter value is obtained.
      • Constant Value: Use a fixed value specified in the Value field.
      • Generated by LLM: AI receptionist extracts or generates the value dynamically.

      "body_params[].value_logic": "constant"
// Valid value: constant/llm
      Value Specify a fixed value for the parameter.
      Note: This setting is available only when Value Resolution Logic is Constant Value.

      "body_params[].constant_value": "active"
// Should be True or False when "data_type" is Boolean
      Description Enter a natural language description to instruct the AI receptionist how to extract or generate the value from the call.
      Note: This setting is available only when Value Resolution Logic is Generated by LLM.

      "body_params[].description": "Extract user ID from the call, e.g., 'user 123' → 123"
      Optional Value Optional. Click Add Optional Value to add predefined values that the AI receptionist can select from when the information matches one of the specified options.
      Note:
      • This setting is available only when Data Type is String and Value Resolution Logic is Generated by LLM.
      • Supports up to 10 options.

      "body_params[].optional_values": ["standard", "premium", "enterprise"]
      For Object data type
      Description Enter a natural language description to instruct the AI receptionist how to extract or generate the object value from the call.
      "body_params[].description:"Extract address information from the call."
      Object
      Defines one or multiple nested child parameters within an object.
      Note:
      "body_params[].children:[{ "parameter": "city", "required": true, "data_type": "String", "value_logic": "llm", "description": "Extract city name" },
{ "parameter": "zipcode", "required": false, "data_type": "String", "value_logic": "llm", "description": "Extract postal code" }]
      For Array data type
      Description Enter a natural language description to instruct the AI receptionist how to extract or generate the array value from the call.
      "body_params[].description:"Extract all product tags mentioned by customer."
      Data Type Specifies the data type of the parameters in the array.
      • String: Text-based information such as names, emails, and addresses. Letters, numbers, and special characters are allowed.
      • Boolean: Yes/no values, such as subscription consent or terms acceptance.
      • Integer: Whole numbers without decimals, such as quantity, age, or ratings.
      • Number: Numeric values that can be integers or decimals, such as order amount, discount rate, or product weight.

      "body_params[].array_item.data_type": "String"
      Description Enter a natural language description to instruct the AI receptionist how to extract or generate the value from the call.
      "body_params[].array_item.description": "Extract a single product tag"
      Optional Value Optional. Click Add Optional Value to add predefined values that the AI receptionist can select from when the information matches one of the specified options.
      Note:
      • This setting is available only when Data Type is String.
      • Supports up to 10 options.

      "body_params[].array_item.optional_values": ["electronics", "books", "clothing"]
  6. Click Save.

Result

The tool is added successfully and displayed in the tool list.

What to do next

Assign the tool to an AI receptionist and test it in a conversation.
