Manually Register Akuvox Intercom Device with Yeastar P-Series Cloud Edition

This topic uses Akuvox E16C V2.0 as an example to introduce how to manually register Akuvox intercom device (door phone and indoor monitor) with Yeastar P-Series Cloud Edition. After registering PBX extensions with a door phone and an indoor monitor respectively, calls from the door phone can be routed directly to the indoor monitor by the PBX, enabling extension users to answer the calls and unlock the door remotely.

Note: It is currently not supported to register the PBX extensions with Akuvox X915S and Akuvox X912K door phones.

Prerequisites

Intercom device
  • Make sure that the intercom device supports SIP protocol.
  • RESET the intercom device if it is previously used.
  • Make sure that the intercom device has obtained a valid IP address, either via DHCP assignment or static IP configuration.
Local computer
  • Download and install the Akuvox IP scanner on your computer that is on the same subnet as the intercom device.
Yeastar PBX
  • Gather information about the SIP extension that will be assigned to the intercom device from the PBX, including extension number, registration name, and registration password (Path: Extension and Trunk > Extension > Extension Information).

Procedure

  1. Obtain the IP addresses of Akuvox intercom device.

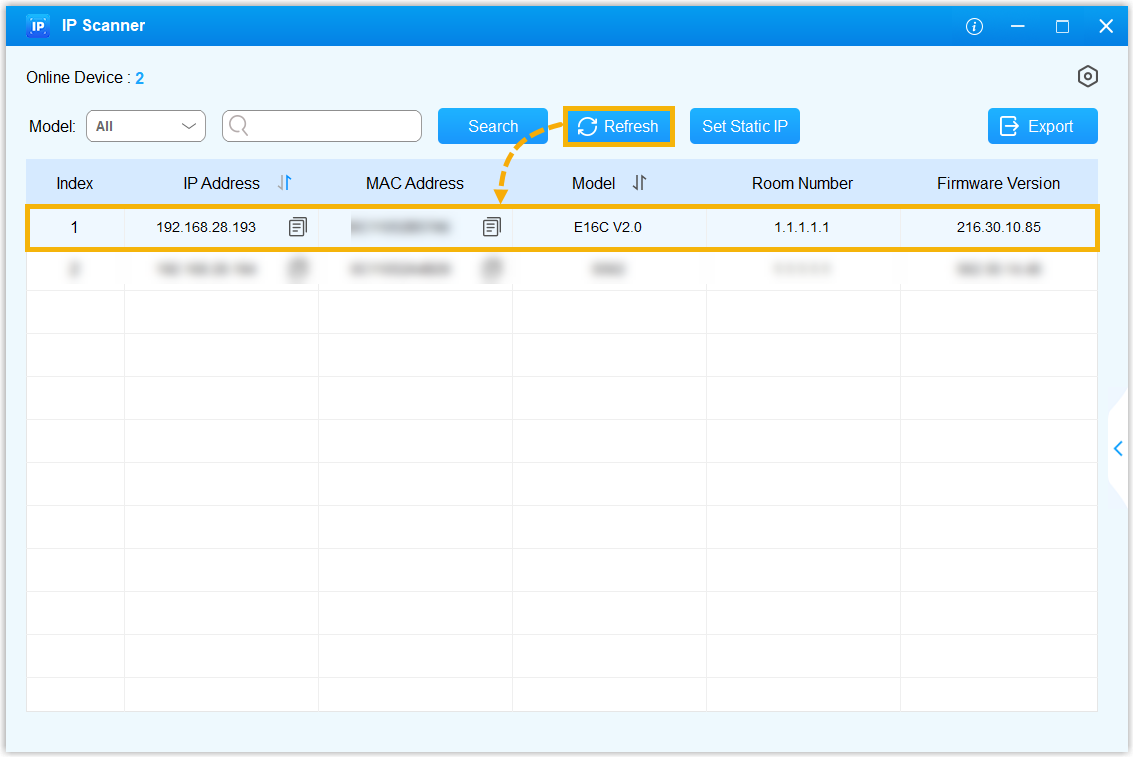

    1. Run the Akuvox IP scanner.
    2. At the tool bar, click Refresh.

      The list displays the detected intercom device along with its IP address.

  2. Access the Akuvox intercom device's web interface using its IP address.
    1. Enter the IP address in the browser search box.
    2. Enter username and password, then click Login.
      Note: The default username and password are both admin.
  3. Go to Account > Basic.
  4. In the SIP Account section, complete the following settings.

    • Account Enabled: Select the checkbox to enable the SIP account.
    • Register Name: Enter the extension's registration name.
    • Username: Enter the extension number.
    • Password: Enter the registration password.

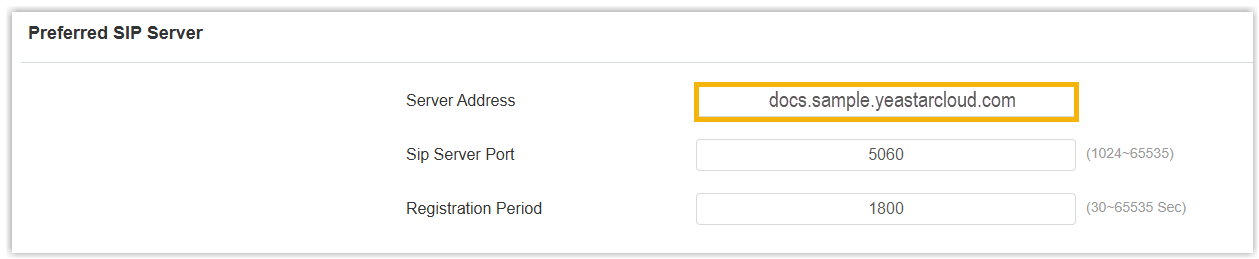

  5. Scroll down to the Preferred SIP Server section, in the Server Address field, enter the PBX's domain name.

  6. At the bottom of the web page, click Submit.

Result

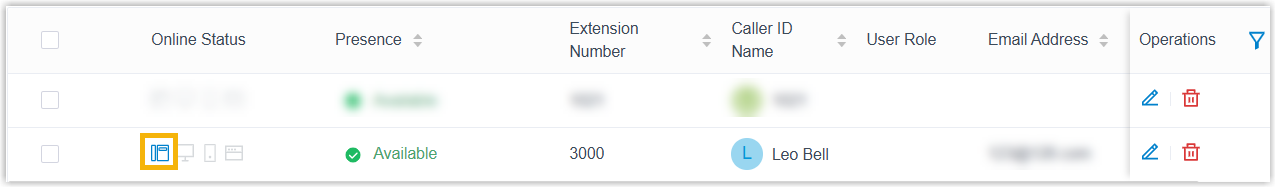

The extension has been successfully registered on the intercom device, you can view its endpoint status (showing ) on the PBX web portal (Path: Extension and Trunk > Extension > Online Status).
