Update Certificate Deployment for NovoOne Portal Domain

Configure automatic certificate deployment

Procedure

• Step 1. Enable automatic certificate deployment and obtain CNAME record on NovoOne Platform
• Step 2. Configure domain resolution on DNS server
• Step 3. Check resolution status and save settings on NovoOne Platform

Step 1. Enable automatic certificate deployment and obtain CNAME record on NovoOne Platform

1. Log in to NovoOne Platform portal, go to System > Domains.
2. Click beside the domain.

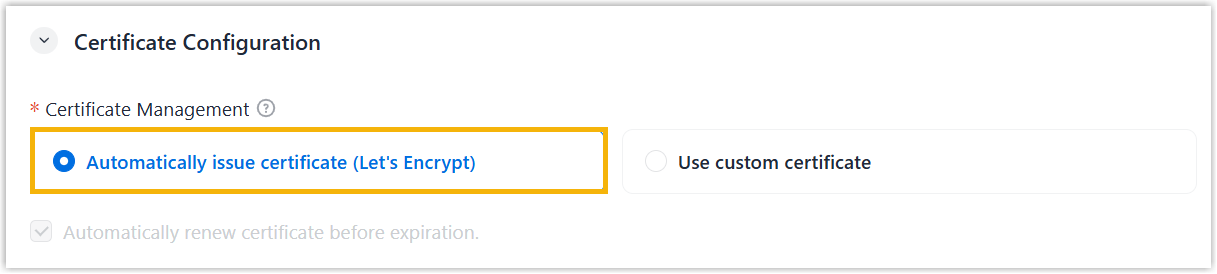

3. In the Certificate Configuration section, select Automatically issue certificate (Let's Encrypt) of Certificate Management.



   Once selected, the DNS Configuration section appears on the edit page.

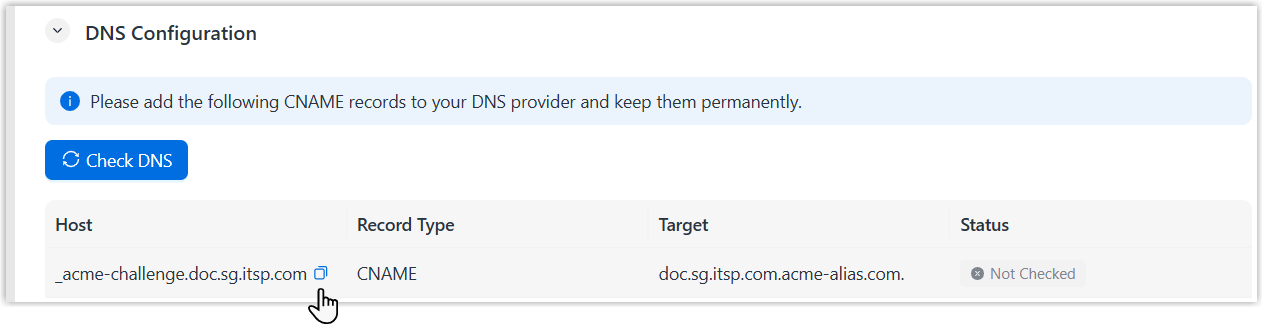

4. In the DNS Configuration section, hover your mouse on the host and target domains in the CNAME record list, then click to copy and note down them for later use.
   Tip: For the host domain, the copy operation retrieves the subdomain portion for direct use in subsequent domain resolution. For example, the host domain is _acme-challenge.doc.sg.itsp.com, only its subdomain portion _acme-challenge.doc.sg is copied for use.



   Leave this Edit Domains page open before proceeding.

Step 2. Configure domain resolution on DNS server

Add the CNAME records obtained from NovoOne Platform to your DNS server to point your host domain to the corresponding CNAME target domain.

Note: For Host fields, your DNS provider will automatically append the root domain (itsp.com). You only need to paste the raw data copied from NovoOne Platform portal into the field.

Step 3. Check resolution status and save settings on NovoOne Platform

1. Back to Edit Domains page on NovoOne Platform portal.

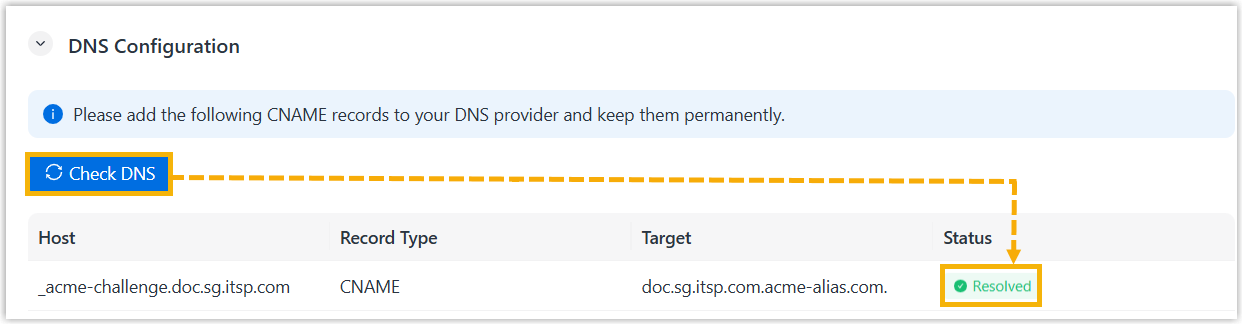

2. In the DNS Configuration section, click Check DNS at the left-top corner of the CNAME record list.

   The status of the CNAME record displays Checking and switches to Resolved after approximately 3 seconds.

   Note: The status may display Not Resolved due to DNS propagation delays. You can click Check DNS later to re-run the detection.

   If the status remains Not Resolved, review the previous Step 2.


3. Click Save.

Configure manual certificate deployment

Procedure

• Step 1. Prepare domain certificates from Certified Authority (CA)
• Step 2. Enable manual certificate deployment on NovoOne Platform

Step 1. Prepare domain certificates from Certified Authority (CA)

Note: If you have purchased a wildcard SSL certificate covering the domain and it remains valid, you can skip this step and proceed to Step 2.

1. Purchase a wildcard SSL certificate to cover the domain.
2. Download the wildcard SSL certificates and private key.
   Note:

   • NovoOne Platform uses NGINX as web server, so the downloaded SSL certificates should be compatible with NGINX server.

   • RSA private key and EC private key are supported to secure the custom domain.

Step 2. Enable manual certificate deployment on NovoOne Platform

1. Log in to NovoOne Platform portal, go to System > Domains.
2. Click beside the domain.

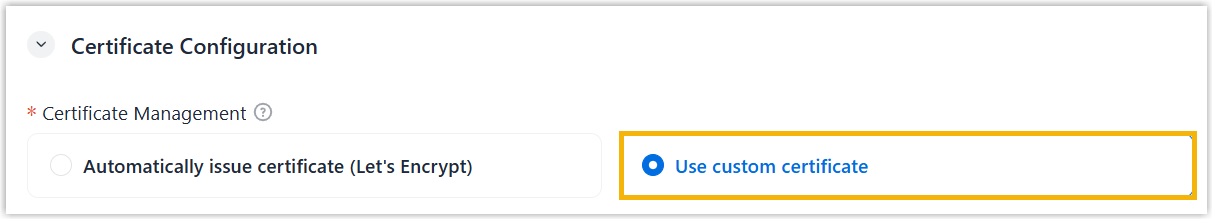

3. In the Certificate Configuration section, select Use custom certificate of Certificate Management.



4. In the Private Key field, fill in the PEM-encoded private key downloaded from Certified Authority (CA) in one of the following methods.
   Note:

   • The supported content formats are as follows:

     Format	Description
     RSA	Start with -----BEGIN RSA PRIVATE KEY----- and end with -----END RSA PRIVATE KEY-----.
     EC	Start with -----BEGIN EC PRIVATE KEY----- and end with -----END EC PRIVATE KEY-----.
     PKCS#8	Start with -----BEGIN PRIVATE KEY----- and end with -----END PRIVATE KEY-----.

   • The content must not exceed 16 KB.
   • Copy the content of the private key and enter it in the field directly.
   • Click beside the field to upload the private key file with the .key extension.

     The content of uploaded private key is displayed in the Private Key field.

5. In the Certificate field, fill in the PEM-encoded certificate obtained from the Certificate Authority (CA) in one of the following methods.
   Note:

   • The certificate must contain a COMPLETE Certificate Chain assembled in the following order: the Server Domain Certificate , followed by Intermediate Certificates, and ending with the Root CA Certificate.
   • The content must not exceed 32 KB.
   • Copy the content of the certificate and enter it in the field directly.
   • Click beside the field to upload the certificate file with a .cer, .crt, or .pem extension.

     The content of uploaded certificate is displayed in the Certificate field.

   The certificate information (status, authority and expiration date) is auto filled in the Certificate Information section.

6. If you intend to manually apply and upload certificates by yourself before expiration, deselect the checkbox of Automatically renew certificate before expiration
   Note: This setting is enabled by default. If enabled, the system will automatically issue and renew certificate via Let's Encrypt before expiration.
7. Click Save.

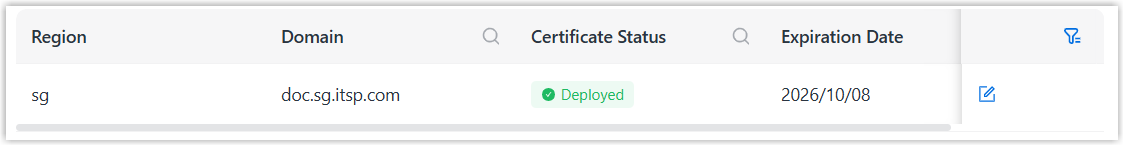

Result
