Loop

This topic provides an overview of the Loop component, and describes its configuration as well as supported connections.

Component introduction

Loop component allows a group of components to be executed repeatedly based on one of the following loop strategies, helpful in repeating menu options or returning to the previous menu.
  • Run a loop until a fixed count is reached.
  • Run a loop while the configured condition is true.

Component configuration

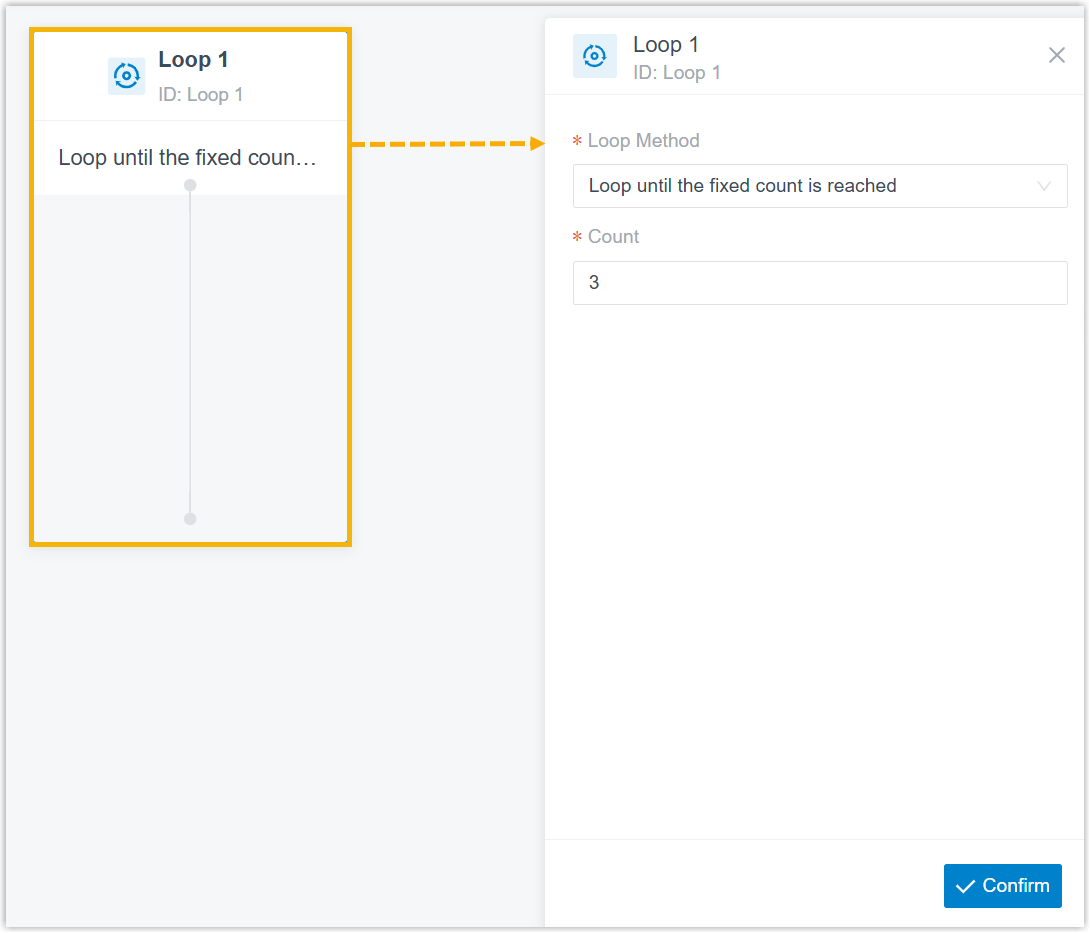

  1. After adding Loop component to a message flow, click Loop component to proceed with the configuration.

  2. In the pop-up right panel, configure the loop strategy as needed.
    Loop Method Instruction
    Loop until the fixed count is reached

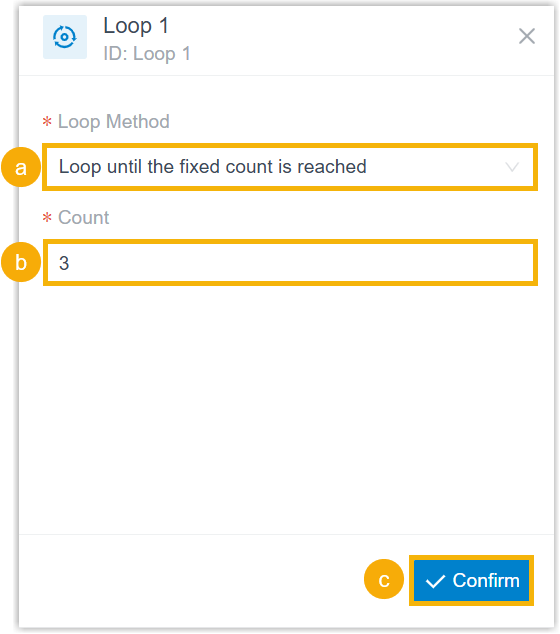

    To run the loop until a fixed count is reached, complete the following settings.

    1. In the Loop Method drop-down list, select Loop until the fixed count is reached.
    2. In the Count field, specify how many times the loop should repeat.
      Note: You can enter a value between 1 and 99.
    3. At the bottom-right corner, click Confirm.

      The configured strategy appears on the component.
    Loop while condition is true

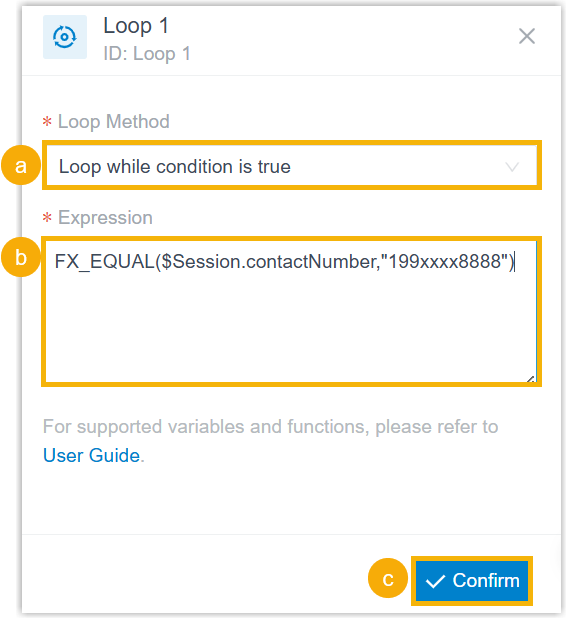

    To run the loop while the condition is true, complete the following settings.

    1. In the Loop Method drop-down list, select Loop while condition is true.
    2. In the Expression field, enter an expression that returns a Boolean value. The loop runs when the result is true and is skipped when false.

      For example, enter FX_EQUAL($Session.contactNumber,"199xxxx8888") as the loop condition, the session will enter the loop when the customer's number is 199xxxx8888.

      Note:

      An expression may include variables, constants, and functions. You can enter FX to view and select system‑supported functions, and enter $ to view and select variables already stored in the current message flow.

      For more information about functions and variables, see Variables and Functions in Yeastar Expression.

    3. At the bottom-right corner, click Confirm.

      The configured strategy appears on the component.
  3. Click inside the loop to add the components that you want to repeat.

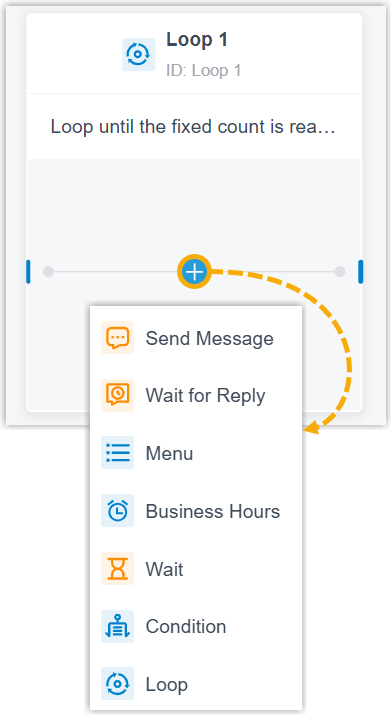

    Note: If you add a nested Loop component, up to 3 levels of nesting are supported.

  4. Optional: To route the message session or trigger other actions when the loop ends, click on the loop component border to add the next component.

    For more information about components that support to be connected, see Component connections.

Component connections

Loop component can be connected to one component, which will be executed after the loop completes. You can connect any of the components listed below.
Note: If a component is already connected to the component, and you need to insert a new one between them, hover over the line between them, click and select the target component. The selected one is inserted between them with connections auto-established on both ends, without the need to delete the connection, add the component and reconnect manually.

End components Transfer and Close are unavailable for this insertion method.

Component Description
Send Message Send Message component enables the system to automatically send messages to customers.

For more information, see Send Message.
Send WhatsApp Template Message Send WhatsApp Template Message component enables the system to automatically send messages to customers using specified WhatsApp message templates.
Important: This component is available only when the message flow is only applicable to WhatsApp channel type.

For more information, see Send WhatsApp Template Message.
Wait for Reply Wait for Reply component allows you to set the reply timeout and route the message session depending on whether a reply is received.

For more information, see Wait for Reply.
Menu Menu component allows you to present the customer with a set of menu options, and route the message session based on the value that they reply.

For more information, see Menu.
Business Hours

Business Hours component allows you to route the message session to different destinations based on the time of day.

For more information, see Business Hours.
Wait Wait component enables the system to automatically route the message session to the connected component upon reply timeout.

For more information, see Wait.
Condition Condition component allows routing the message session based on logical expressions.

For more information, see Condition.
Loop Loop component allows a group of components to be executed repeatedly based on the loop strategy.

For more information, see Loop.
Internal Data Ops Internal Data Ops component allows you to query data from PBX-native database.
For more information, see the following topics:
Email Sender Email Sender component enables the system to automatically send emails to a recipient via configured email server and record the send logs, enabling real-time notifications.

For more information, see Email Sender.
Database Access Database Access component allows you to interact with database during a message flow. You can execute SQL operations to retrieve or update data as needed.

For more information, see Database Access.
HTTP Request HTTP Request component allows you to send HTTP requests to external web servers, enabling data exchange with third-party services.

For more information, see HTTP Request.
Transfer

Transfer component allows you to transfer the message session to a specific destination to terminate the current message flow.

For more information, see Transfer.
Close Close component enables the system to automatically disconnect the message session to terminate the current message flow.

For more information, see Close.
