Export Message Flows

Message flows configured on Yeastar P-Series PBX System can be exported and imported to another P-Series PBX System for quick reuse. This topic describes how to export message flows.

Important: After exporting message flows, do NOT modify the exported file. Otherwise, the message flow may NOT work when imported into another P-Series PBX system.

Procedure

  1. Log in to PBX web portal, go to Automation Workflow > Message Flow Designer.

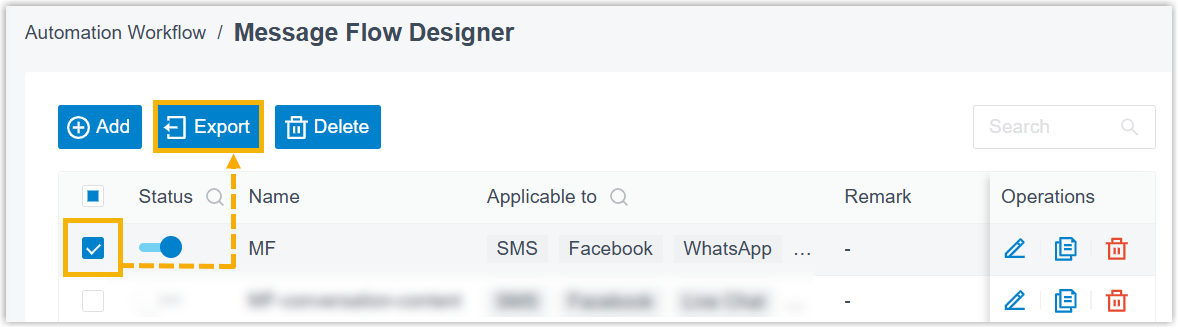

  2. Select the checkbox(es) of the message flow(s) that you want to export, then click Export.

Result

  • If you export a single message flow, it is saved as a .json file.
  • If you export multiple message flows, they are saved as a .zip file. You can unzip the file to access individual .json files.
Tip: To import the .json file to another P-Series PBX System, see Set up a Message Flow from a JSON File.
