Auto Provision Flat-phone with Yeastar P-Series PBX System

Requirements

The firmwares of Flat-phone and Yeastar PBX meet the following requirements.

Scenarios

The provisioning methods and operations vary depending on the network environment of Flat-phone and Yeastar PBX, as the following table shows.

Auto provision a Flat-phone in the same subnet (PnP)

In this example, the Flat-phone (IP: 192.168.28.205) and the Yeastar PBX (IP: 192.168.28.39) are both deployed in subnet 28.

Prerequisites

• Make sure that you have downloaded the template for the desired phone model (Path: Auto Provisioning > Resource Repository > Default Templates).
• If the IP phone is previously used, you need to RESET the IP phone, then re-configure the network settings for the phone.

Procedure

1. Log in to PBX web portal, go to Auto Provisioning > Phones.

   The IP phones detected by the PBX via PnP are displayed in the phone list.

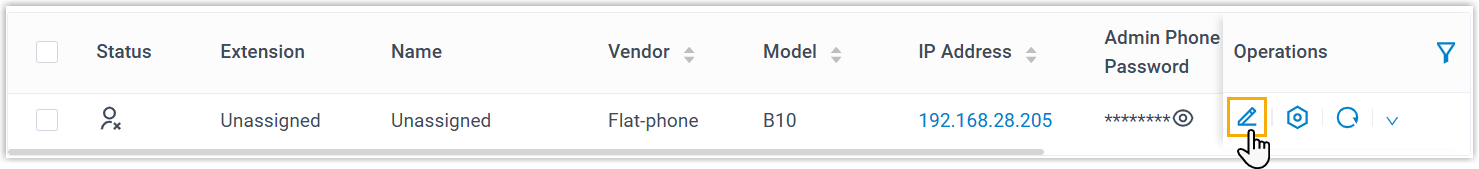

2. Click beside the Flat-phone.



3. Optional: In the Options section, select a desired template from the Template drop-down list.
   Note: You can select the default template corresponding to the phone model, or customize your own template. For more information, see Create a Custom Auto Provisioning Template.
4. In the Assign Extension section, assign an extension to the IP phone.



   Note: If your desired extension is not listed in the drop-down list, it indicates that the extension has been associated with an IP phone or gateway.

   • To release the extension from the associated IP phone or gateway, see Release an Extension from a Provisioned IP Phone/Gateway.
   • To assign the extension to the phone without releasing it from the previously associated device, you can configure the concurrent registration setting for the extension, as the PBX only allows an extension to register with one SIP endpoint by default.
5. Click Save.

Result

Note: Some IP phones will reboot automatically. If not, you need to manually reboot the phone to make the configurations take effect.

• The IP phone automatically downloads the configurations from the PBX and applies the settings.

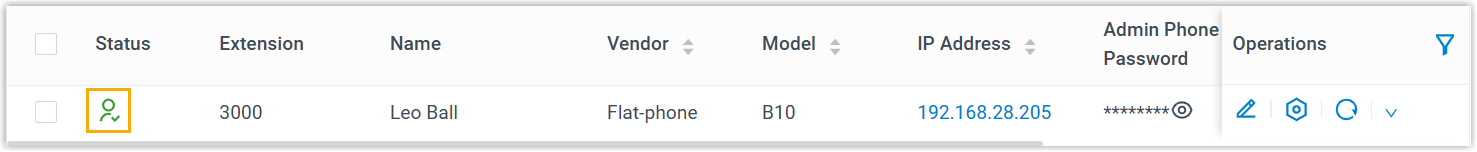

• The extension is successfully registered on the IP phone. You can check the registration status on Auto Provisioning > Phone in PBX web portal.



Auto provision a Flat-phone in different subnets (DHCP)

In this example, the Flat-phone and DHCP server are deployed in subnet 20, while the Yeastar PBX (IP: 192.168.28.110) is deployed in subnet 28.

Prerequisites

• Make sure that there is only one DHCP server running in the subnet where the IP phone is deployed, or the IP phone would fail to obtain an IP address.
• Make sure that the IP phone and PBX can communicate with each other over the subnets.
• Make sure that you have downloaded the template for the desired phone model (Path: Auto Provisioning > Resource Repository > Default Templates).
• RESET the IP phone if it is previously used.
• Gather information of IP phone, including Vendor, Model, and MAC address.

Procedure

• Step 1. Enable Remote Registration feature for the extension on PBX
• Step 2. Add the Flat-phone on the PBX
• Step 3. Configure DHCP option 66 on DHCP server

Step 1. Enable Remote Registration feature for the extension on PBX

Enable the Remote Registration feature for the extension to be assigned to the phone, so that the extension can be registered in a different subnet.

1. Log in to PBX web portal, go to Extension and Trunk > Extension, edit the desired extension.
2. Click Security tab, select the checkbox of Allow Remote Registration in the SIP Security section.



3. Click Save and Apply.

Step 2. Add the Flat-phone on the PBX

Add the IP phone on PBX. The PBX will generate a configuration file based on the phone's MAC address.

1. On PBX web portal, go to Auto Provisioning > Phones.
2. Click Add > Add.

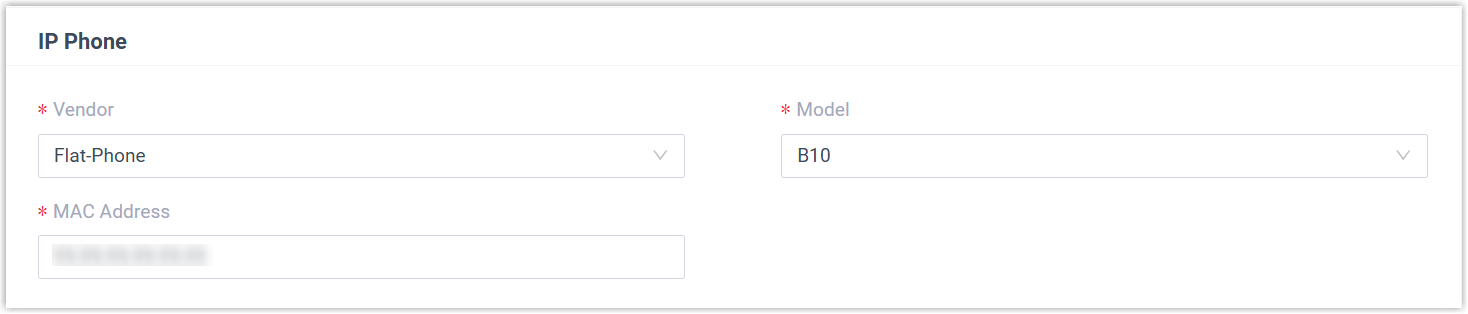

3. In the IP Phone section, configure phone information as follows:


   • Vendor: Select Flat-Phone.
   • Model: Select a phone model. In this example, select B10.
   • MAC Address: Enter the MAC address of the IP phone.
4. In the Options section, configure the following settings.


   • Template: Select a desired template from the drop-down list.
     Note: You can select the default template corresponding to the phone model, or customize your own template. For more information, see Create a Custom Auto Provisioning Template.

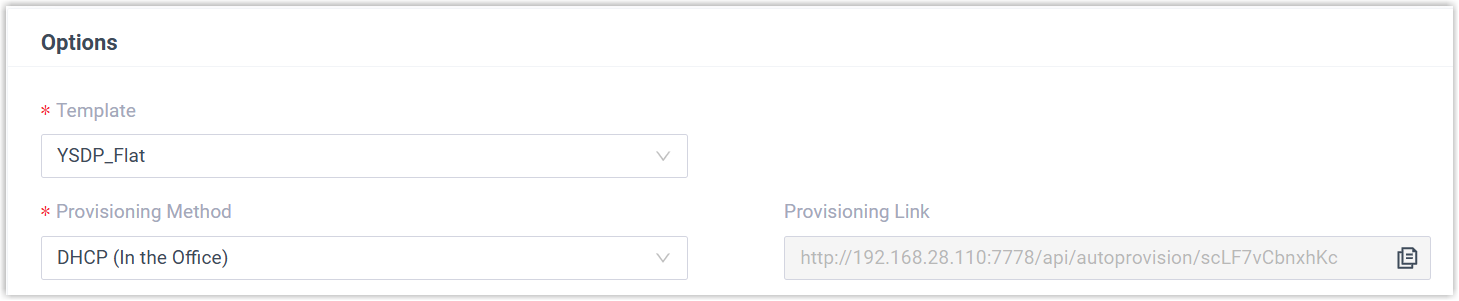

   • Provisioning Method: Select DHCP (In the Office).

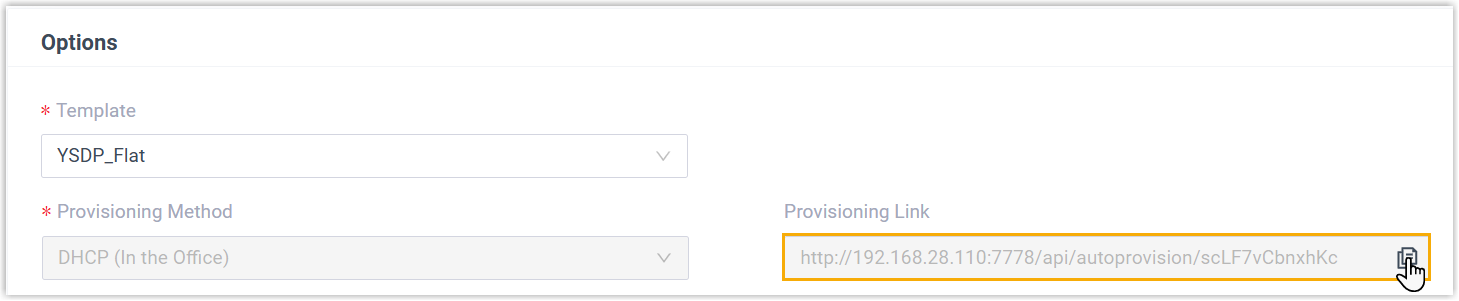

     A provisioning link is automatically generated and displayed in the Provisioning Link field. This provisioning link points to the location where the phone's configuration file is stored.

5. In the Assign Extension section, assign an extension to the IP phone.



   Note: If your desired extension is not listed in the drop-down list, it indicates that the extension has been associated with an IP phone or gateway.

   • To release the extension from the associated IP phone or gateway, see Release an Extension from a Provisioned IP Phone/Gateway.
   • To assign the extension to the phone without releasing it from the previously associated device, you can configure the concurrent registration setting for the extension, as the PBX only allows an extension to register with one SIP endpoint by default.
6. Click Save.

Step 3. Configure DHCP option 66 on DHCP server

In the subnet where the IP phone is deployed, use the generated provisioning link to configure option 66 on the DHCP Server.

1. On PBX web portal, copy the provisioning link from the phone's detail page.



2. On the DHCP server, set up option 66 with the provisioning link.

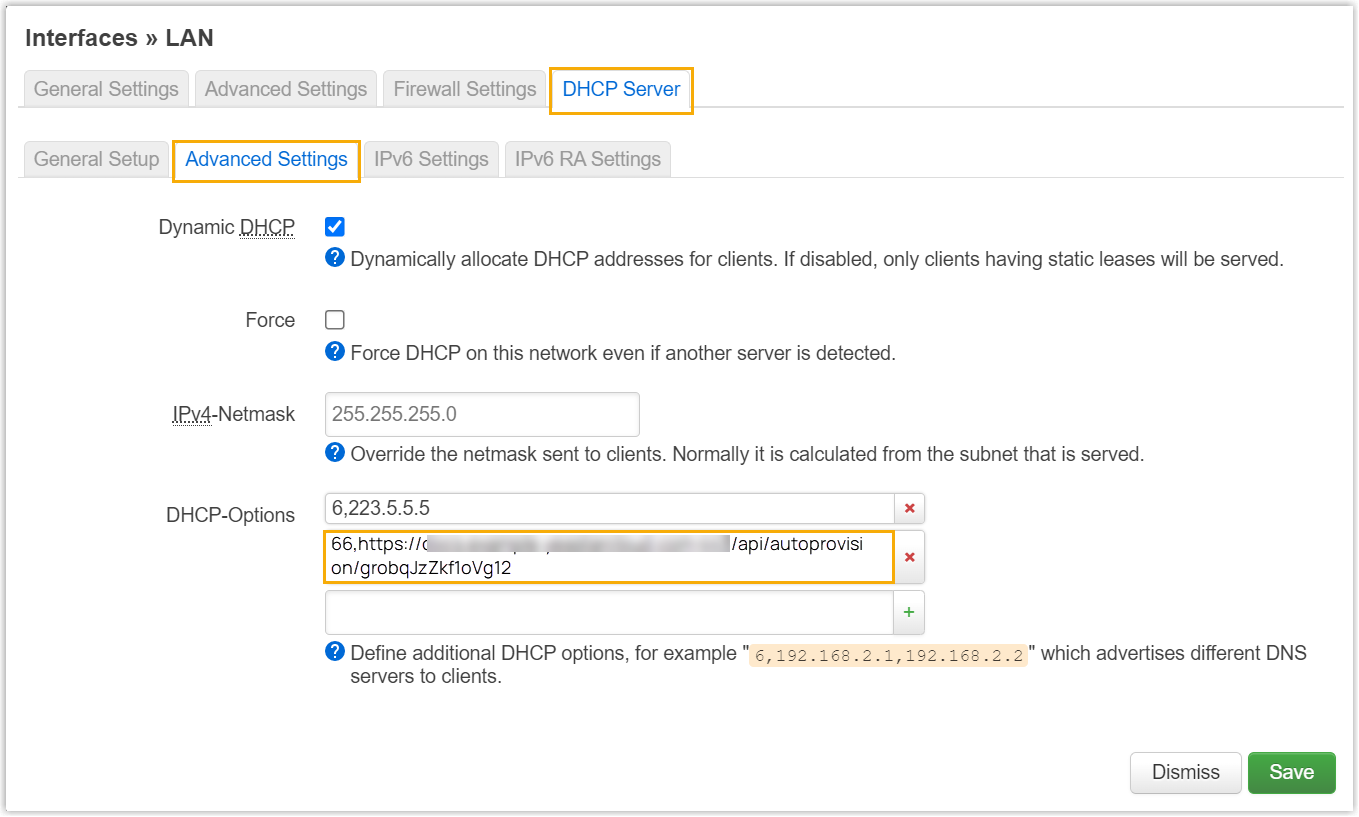

   In this example, the configuration is shown below.



Result

Note: Some IP phones will reboot automatically. If not, you need to manually reboot the phone to make the configurations take effect.

• After the IP phone is rebooted, it gets an IP address from the DHCP server, downloads the configurations from the PBX via the provisioning link, and applies the settings automatically.

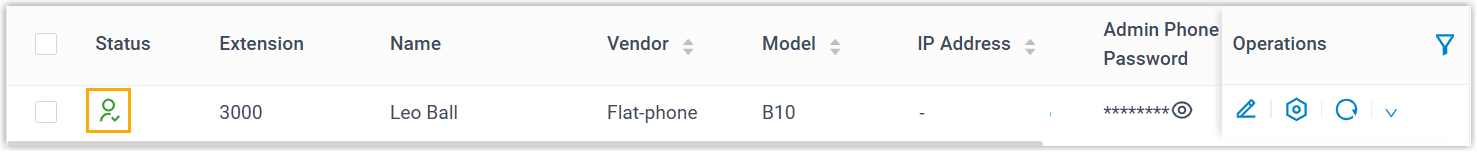

• The extension is successfully registered on the IP phone. You can check the registration status on Auto Provisioning > Phone on the PBX web portal.



Provision a Flat-phone in different networks (Provision Link)
