Integrate Yeastar P-Series Cloud Edition with a CRM using Template

If your desired CRM is not in the list of ready-made integrations, you can implement a custom integration via a CRM integration template. This topic describes how to establish the integration.

Prerequisites

  • You have added a CRM integration template.
  • You have obtained the necessary authorization information from the CRM system according to its authentication requirements.
    Authentication Method Description
    None authentication Obtain the required integration information (such as API key or Webhook URL) if needed.
    Basic authentication Obtain the credential for authentication (such as username and password, or API key).
    OAuth2 authentication Obtained the PBX authentication information first (Path: Integrations > CRM > Custom CRM), then use the information to create an application on the CRM system, and obtain the corresponding authorization information (such as client ID and client secret).
    Bearer Token authentication Obtained the credential for authentication (such as client ID and client secret).

Procedure

  1. Log in to PBX web portal, go to Integrations > CRM.
  2. In the CRM list, click the CRM that you have added via a template.

  3. Complete the authentication according to the CRM system's requirements.
    None authentication
    Note: If no additional information is required, the integration will be completed once you click the CRM.
    1. In the Settings section, enter the required information for integration.
    2. Click Save.
    Basic authentication
    1. In the Settings section, enter the required credentials.
    2. Click Save.
    OAuth2 authentication
    1. In the Authorization section, enter the authorization information obtained from the application created in the CRM system.
    2. Click Save.

      A new browser page will be launched to request for CRM data access permission.

    3. Accept the request to allow the PBX to access data in your CRM account.

      On the PBX configuration page, a pop-up window displays the authentication result.

    4. Click OK to confirm.

      The Status field displays Connected, indicating that the CRM integration is successfully set up.

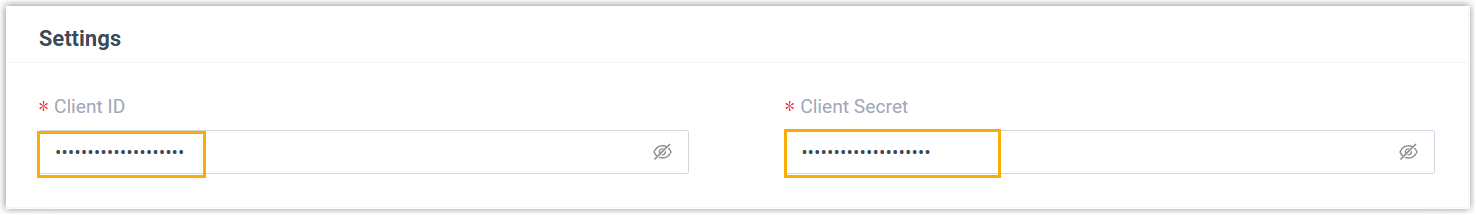

    Bearer Token authentication
    1. In the Settings section, enter the required credentials.
    2. Click Save.
  4. Associate CRM users with PBX extensions.

    If the CRM requires the association of CRM users with PBX extensions to access the integration functionalities, complete the following settings.

    1. On the CRM integration page, click to synchronize the latest list of CRM users.

    2. Associate the CRM users with PBX extensions.
      Associate automatically
      If users bind the same email address to their CRM accounts and PBX extensions, you can implement automatic association of their CRM accounts and PBX extensions as follows:

      1. Click the Associate Automatically button.
      2. On the pop-up window, click OK.
      Associate manually
      If the user binds different email addresses to their CRM account and PBX extension, you need to manually associate the user's CRM user account and PBX extension.

      1. In the Extension field beside the CRM user, click .
      2. In the pop-up window, select the desired user's extension(s).
      3. Click Confirm.
    3. Click Save.
