Configure VoIP Settings for Users

Configure VoIP settings for user extensions, including DTMF transmission, SIP transport, and media encryption.

Procedure

  1. Log in to NovoOne Tenant portal, go to Users > Users.
  2. Click beside the desired user.

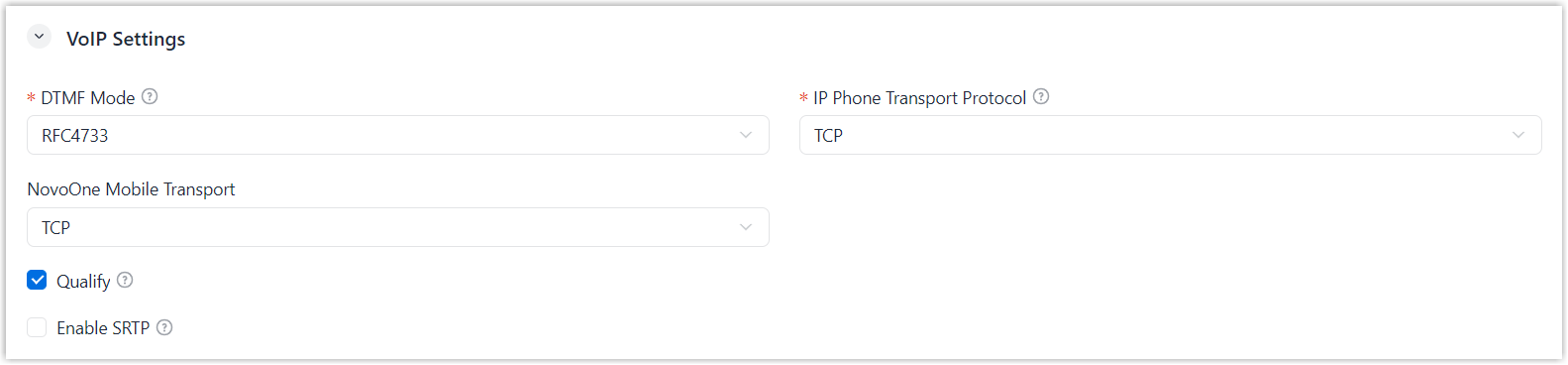

  3. In the Advanced tab, configure the VoIP settings.

    Setting Description
    DTMF Mode Select the mode used to send DTMF tones.
    • RFC4733 (RFC2833): DTMF tones are carried in dedicated RTP packets.
    • Info: DTMF tones are carried in SIP INFO messages.
    • Inband: DTMF tones are carried in the audio stream.
    • Auto: RFC4733 (RFC2833) is used if supported by the device; otherwise, Inband is used.
    IP Phone Transport Protocol Select the preferred transport protocol for an IP phone to register the user extension through auto provisioning.
    Note: This setting does not restrict the transport protocols that can be used for registration. For example, if TCP is selected, the user extension can still be registered using UDP.
    • UDP
    • TCP
    • TLS
    NovoOne Mobile Transport Select the transport protocol used by NovoOne Mobile Client.
    • TCP
    • TLS
    Qualify Set whether to periodically send SIP OPTIONS packets to check whether the SIP device is online.
    Enable SRTP Set whether to encrypt RTP packets using SRTP.
    Note: SRTP is always enabled for NovoOne Web Client.
  4. Click Save.
