Set up a SIP Phone

This topic describes how to manually register a user extension on a SIP phone.

Prerequisites

You have created a user extension and obtained the information required for extension registration.

Item Access Path
Extension Information

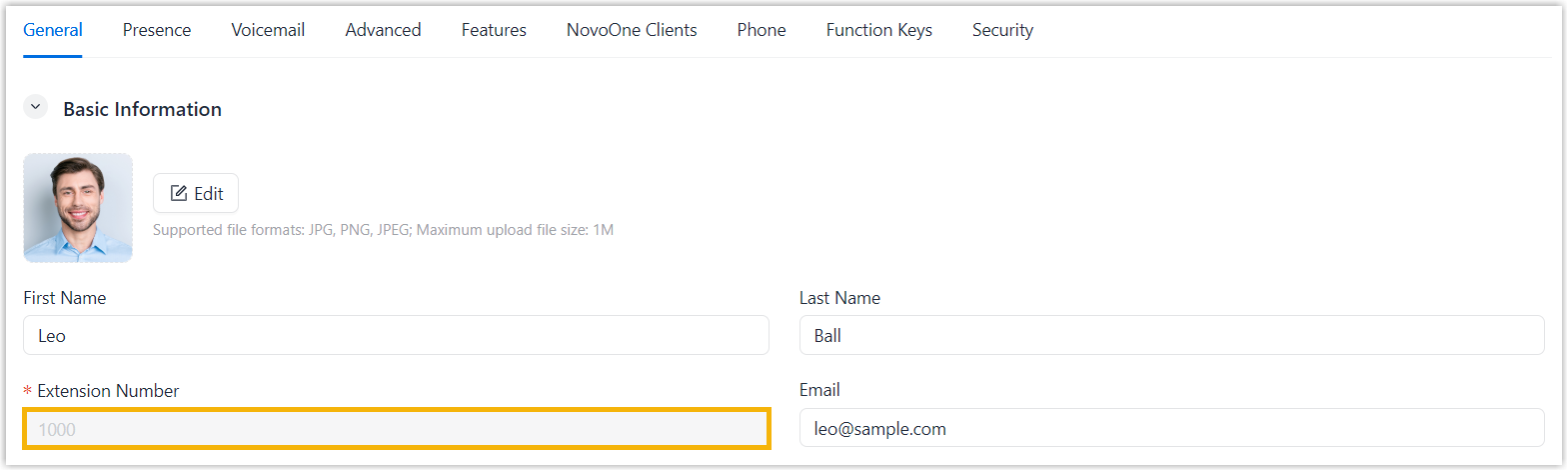

  • Extension number (Path: Users > Users > Basic Information > Extension Number)

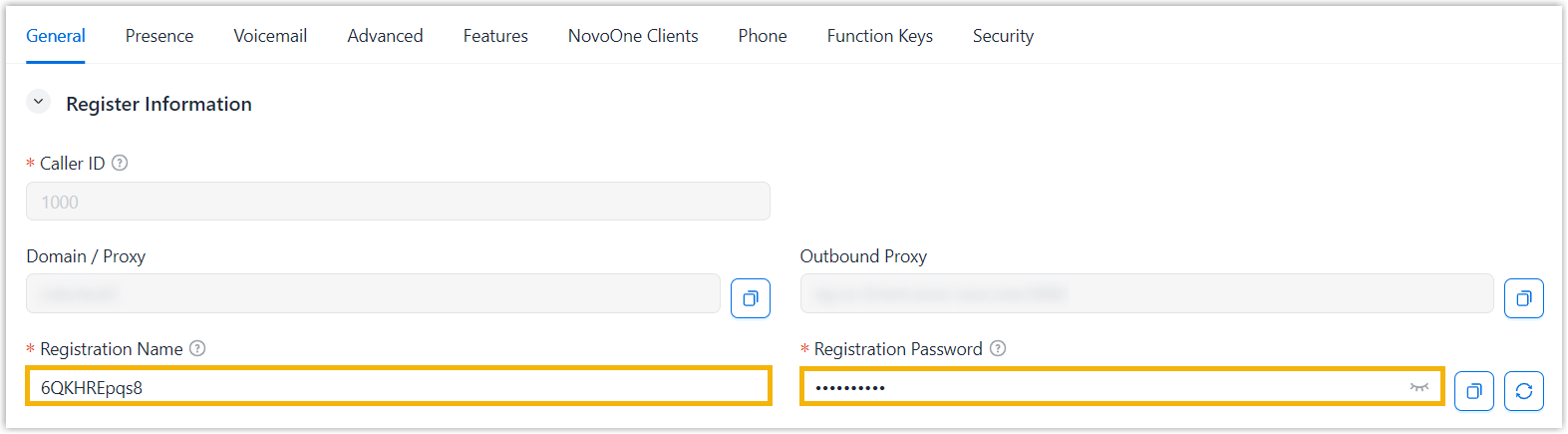

  • Registration name & password (Path: Users > Users > Register Information > Registration Name & Registration Password)
Tenant Information

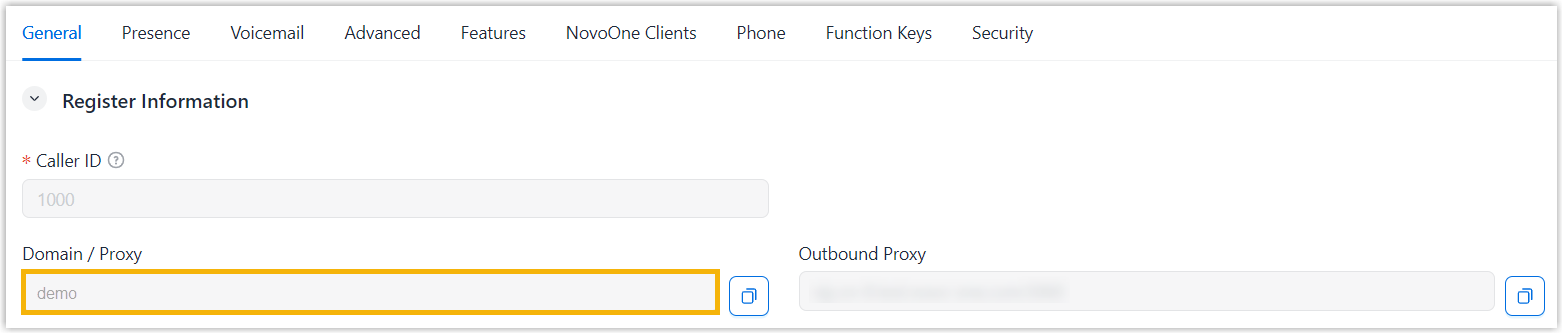

  • Tenant name (Path: Users > Users > Register Information > Domain / Proxy)

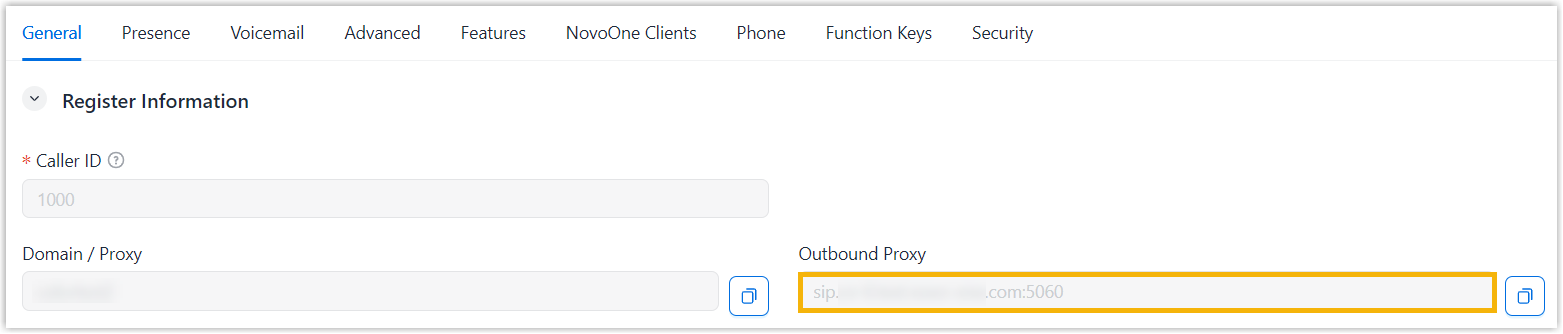

  • Outbound proxy server address (Path: Users > Users > Register Information > Outbound Proxy)

Procedure

We take Yealink T28P as an example to show you how to manually register an extension.

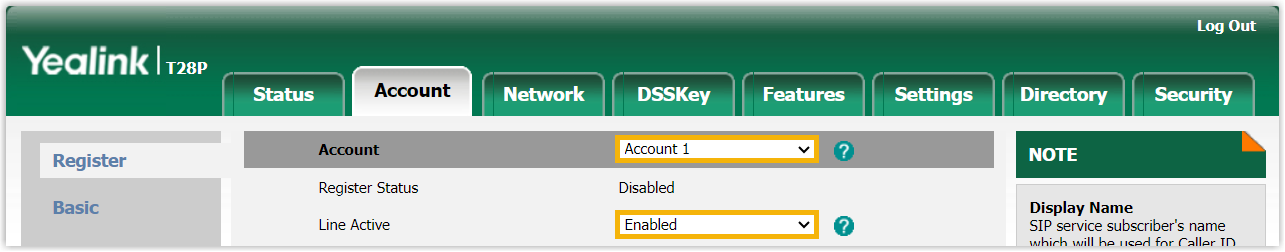

  1. Log in to the phone's web interface, go to Account tab.
  2. Select an available account and enable it.

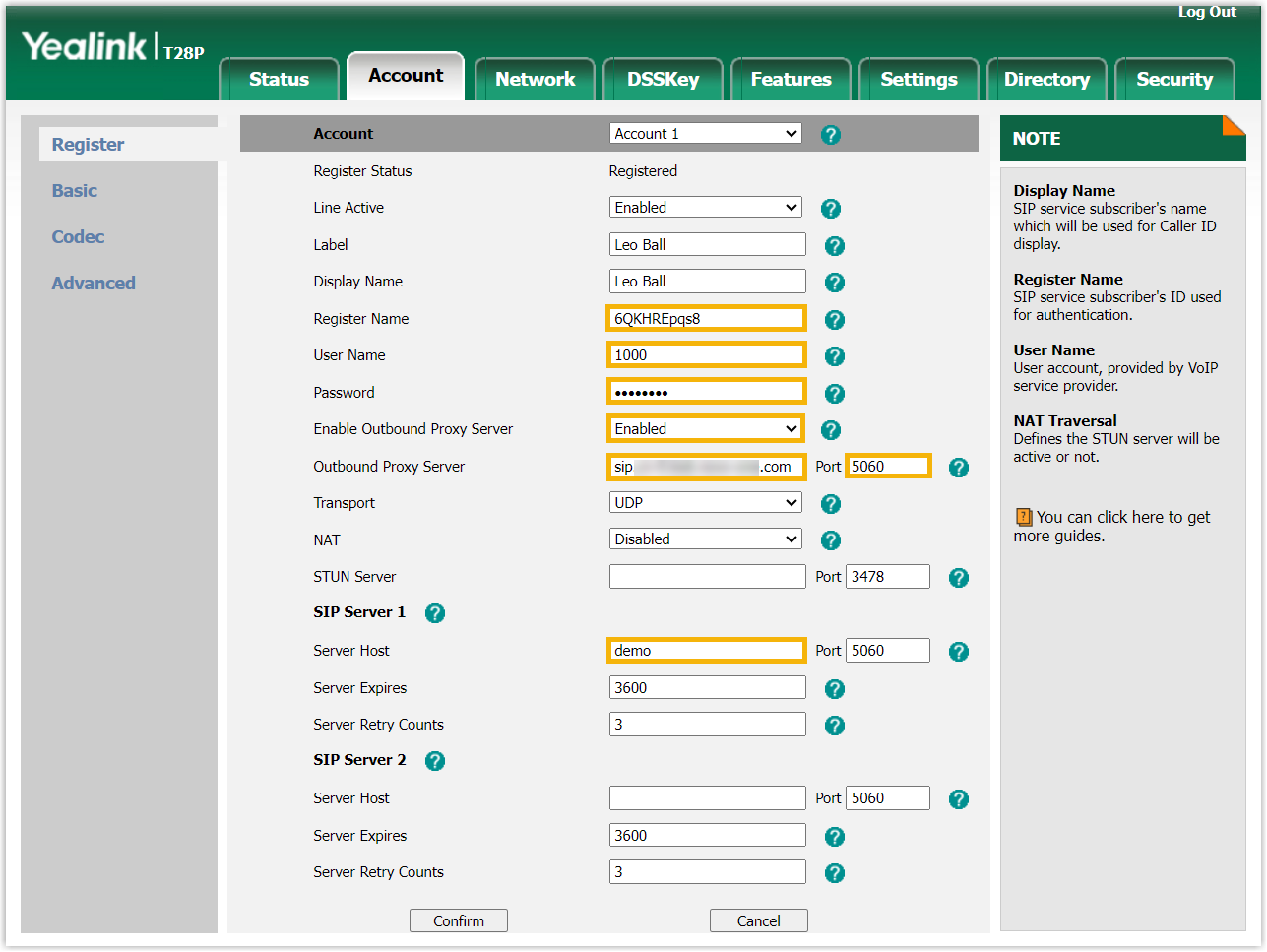

  3. Enter the required information to register the extension.

  4. Click Confirm.

Result

  • The extension is registered on the SIP phone. You can verify the extension's registration status in either of the following ways:
    • On the phone's web interface, check whether the account is registered.

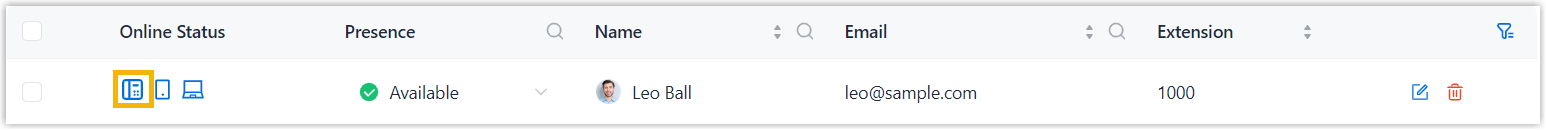

    • On NovoOne tenant portal, go to Users > Users to check whether the endpoint icon displays in the Online Status column.

  • The user can make and receive calls using the SIP phone.
