Create a Trunk from a Template
Yeastarhas tested leading ITSP across the globe and provides configuration templates for the tested and certificated ITSPs. If a template is provided for your ITSP on NovoOne platform, you can quickly create a SIP trunk from the template.
Limitations
You can create up to 50 SIP
trunks in each region.
Note: The number
of trunks created by your colleagues is also included.
Prerequisites
- Obtain the SIP connection details from your ITSP, such as the domain/IP address, port, and authentication credentials.
Procedure
- Log in to NovoOne Platform portal, go to .
- Click Add.

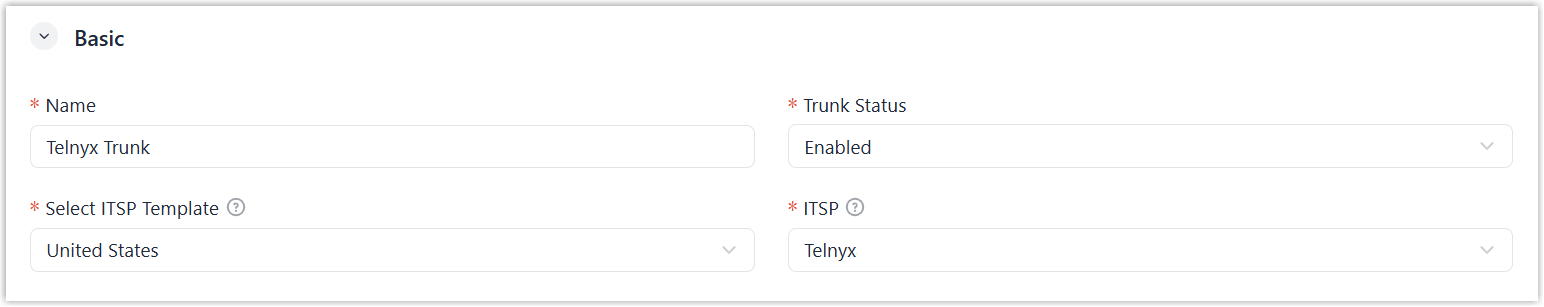

- In the Basic section, enter the general information
of the trunk.
Setting Description Name Enter a name to identify the trunk. Trunk Status Select Enabled. Select ITSP Template Select the country to which your ITSP belongs. ITSP Select your ITSP. - In the Detailed Configuration section, leave the
default settings and complete the required fields.Note: If pre-populated, keep the default values unless otherwise instructed by your ITSP.
- In the Inbound SIP Security section, specify
source
IP addresses or domain names
that are allowed to send
inbound calls to this trunk, and configure the ports they use.Note:
- IP addresses/domains configured in Hostname / IP and Secondary Hostname / IP (if available) are trusted by default.
- You can add up to 30 allowed source addresses.
- CIDR notation (e.g.
192.168.1.0/24) is not supported.
- Optional: Go to the Advanced, Inbound Caller ID Reformatting, and SIP Headers tab to configure advanced trunk settings according to your needs.
- Click Save.
Result
- The trunk is created and displayed in the trunk list.
- If the status shows
(Registered/Reachable), it
indicates that the trunk has been successfully registered or connected, and
is ready for use.
