Access and Use Queue Panel

This topic describes how a queue manager can access the queue panel to check the queue related statistics and manage the calls of one or more queues.

Requirements

  • The firmware of PBX server is 37.19.0.22 or later.

  • To access and use the Queue Panel, make sure that your Linkus Web Client and Linkus Desktop Client meet the following requirements.

    Clients Requirement
    Linkus Web Client Web Browser Version
    Google Chrome (recommended) Chrome 87 or later
    Microsoft Edge Edge 87 or later
    Opera Opera 72 or later
    Linkus Desktop Client Version 1.12.4 or later

Procedure

  1. Log in to Linkus Web or Desktop Client, go to Call Center Console > Queue Panel.
  2. If you manage more than one queue, set the desired queue range to view the corresponding statistics.
    Queue Range Instruction

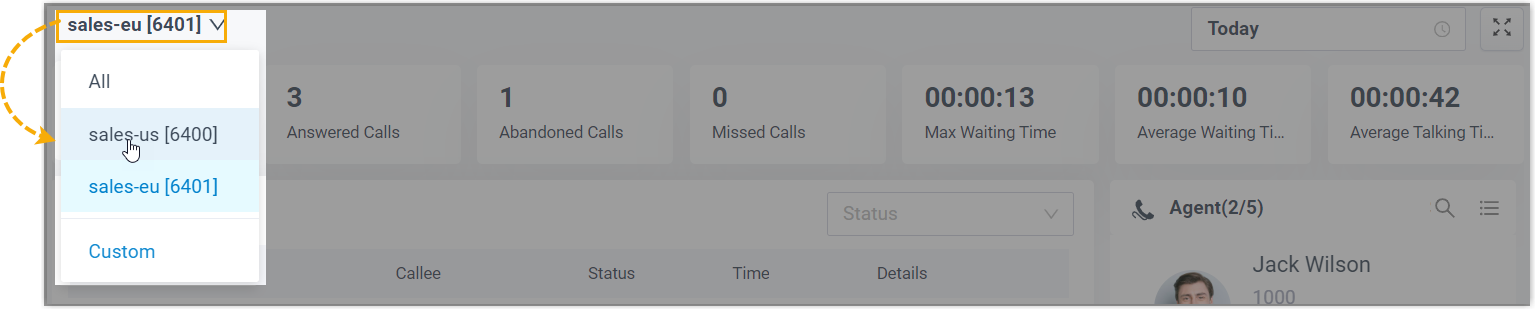

    A specific queue

    1. At the top-left corner of the queue panel, click the current queue.
    2. In the drop-down queue list, select the desired queue.

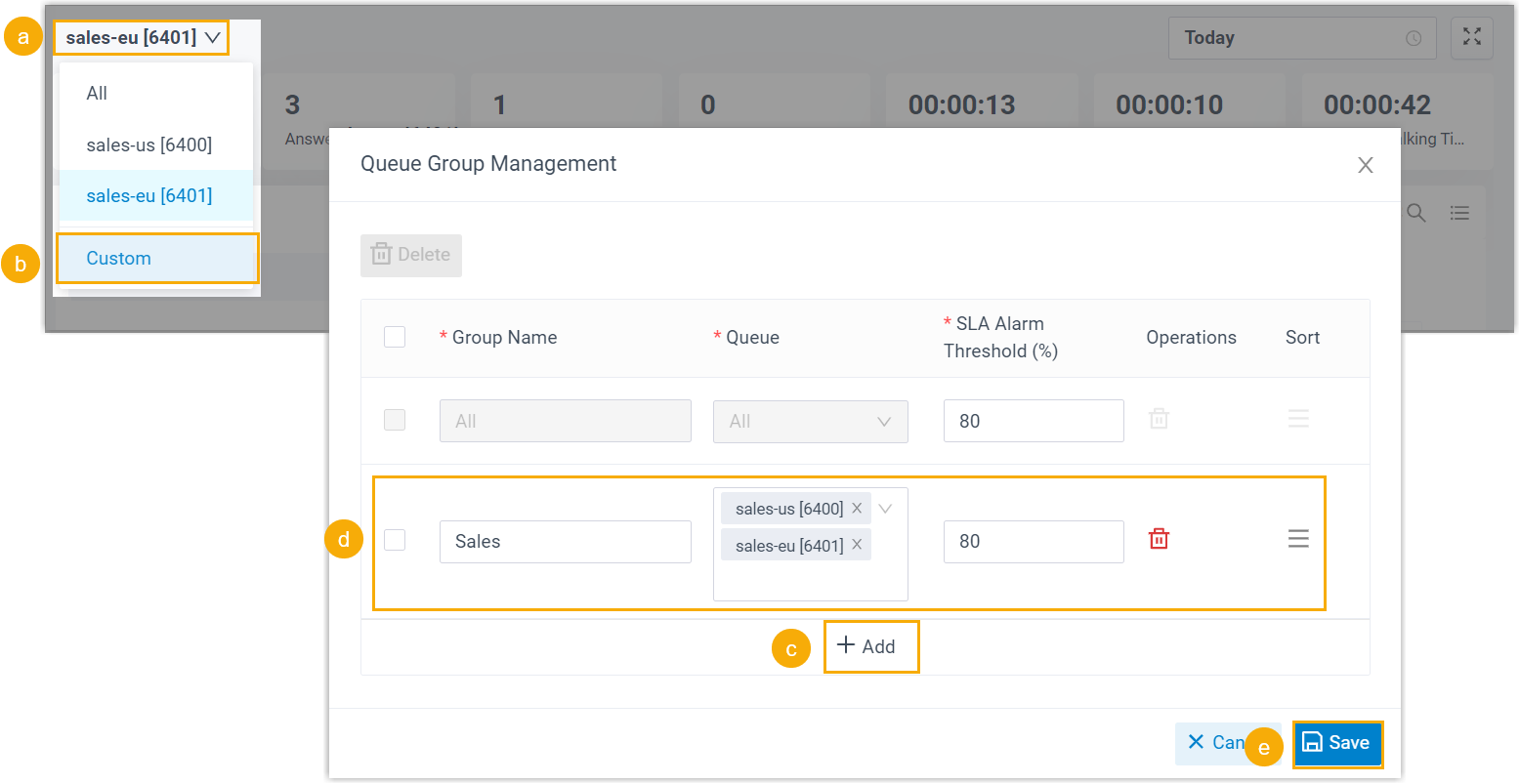

    A group of queues

    1. At the top-left corner of the queue panel, click the current queue.
    2. In the drop-down queue list, select Custom.
    3. In the pop-up window, click Add to add a queue group.
    4. Configure a queue group.
      • Group Name: Enter a name to help you identify the queue group.
      • Queue: In the drop-down list, select the desired queues.
      • SLA Alarm Threshold (%): Specify the SLA rate before an alert is triggered.
      • Sort: Optional. Adjust the display order of the queue group in the queue list.
    5. Click Save.

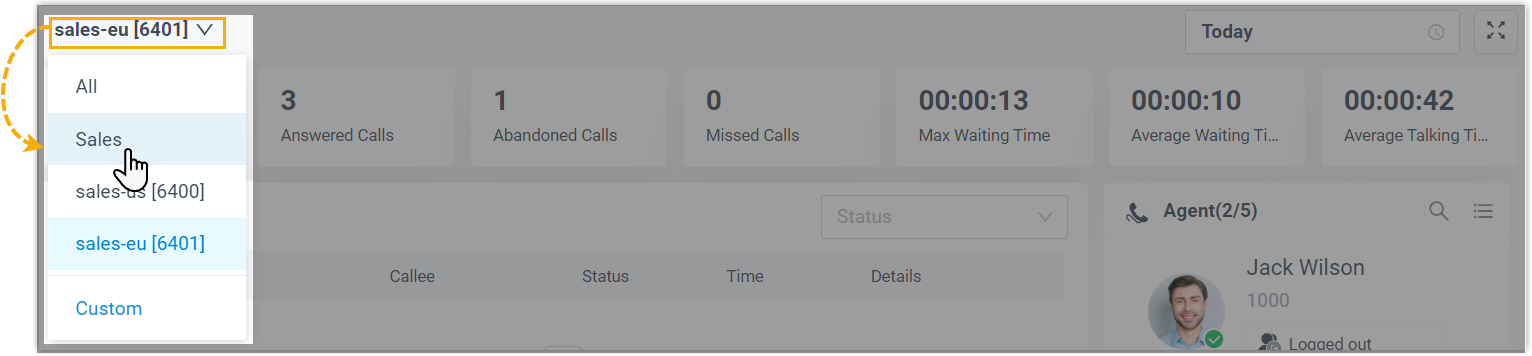

    6. In the drop-down queue list, select the queue group.

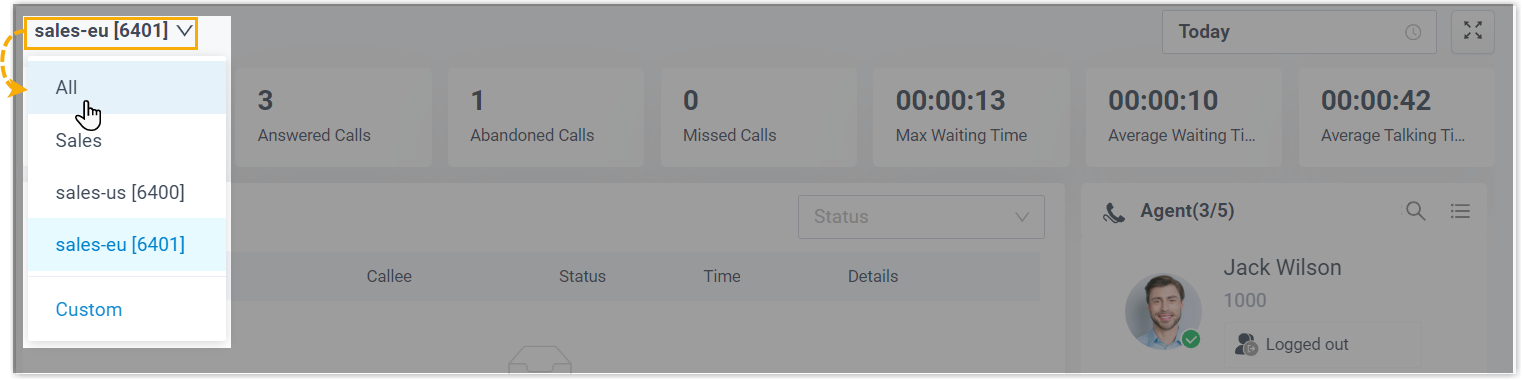

    All queues

    1. At the top-left corner of the queue panel, click the current queue.
    2. In the drop-down queue list, select All.

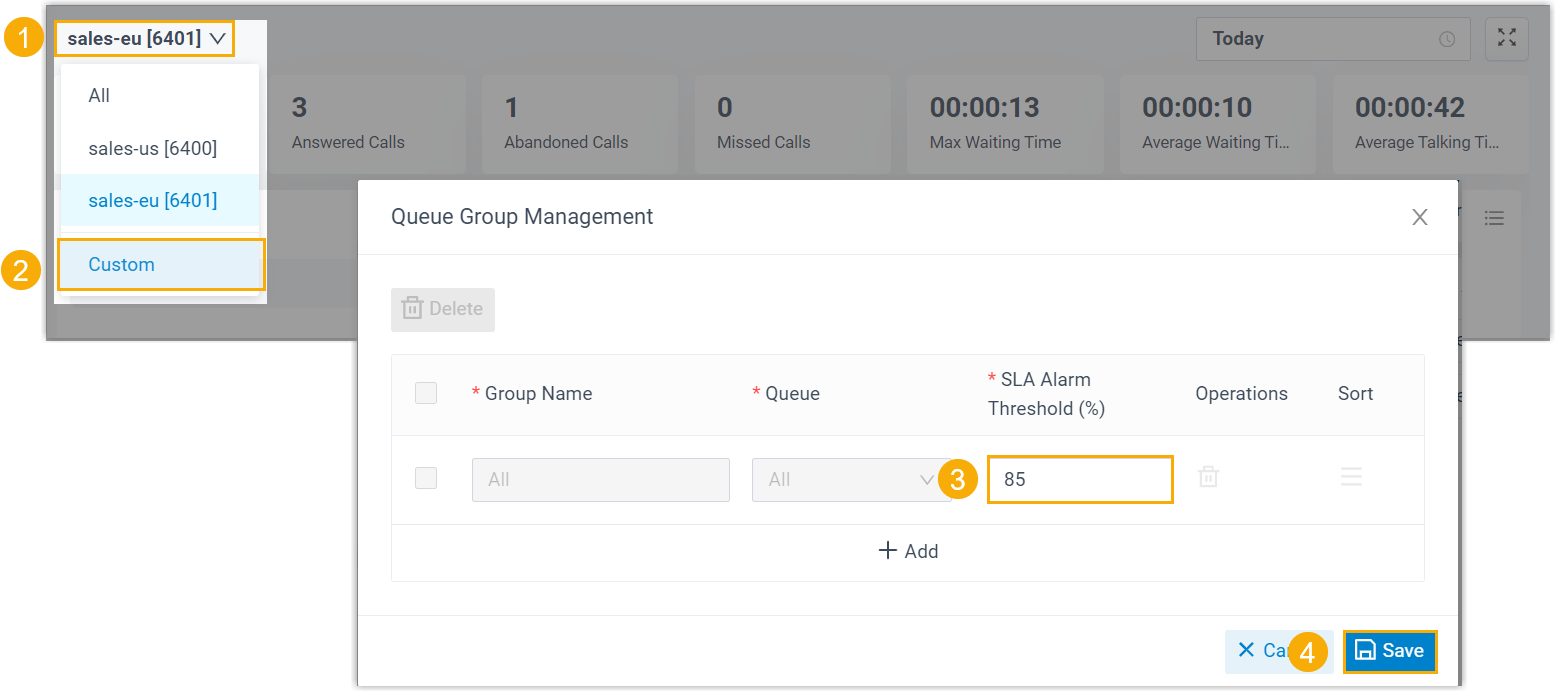

      Note: If you want to change the threshold of SLA for this queue range, select Custom, then edit the rate in the pop-up window.

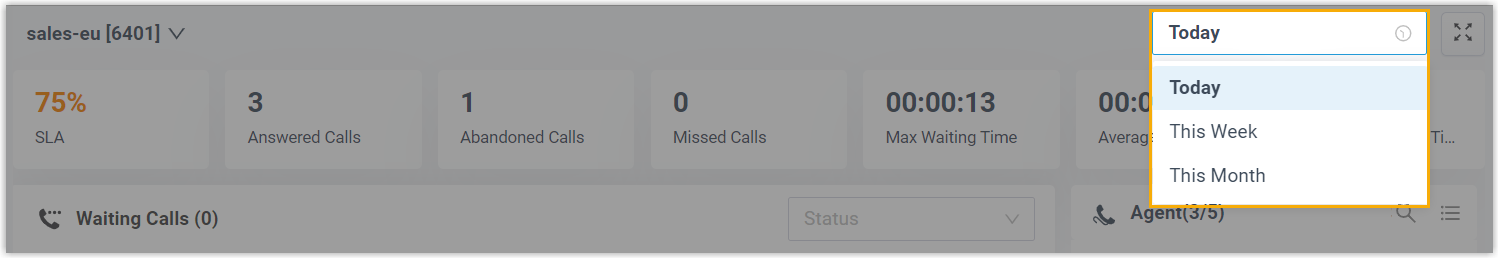

  3. Select a time range.
    • Today: View statistics of today.
    • This Week: View statistics of this week.
    • This Month: View statistics of this month.

  4. Optional: Click to display queue panel in a separate browser window.

    For example, display the queue panel of Service in a browser window; display the queue panel of Sales in another browser window.

  5. Check and manage calls and queue statistics in the corresponding panels.

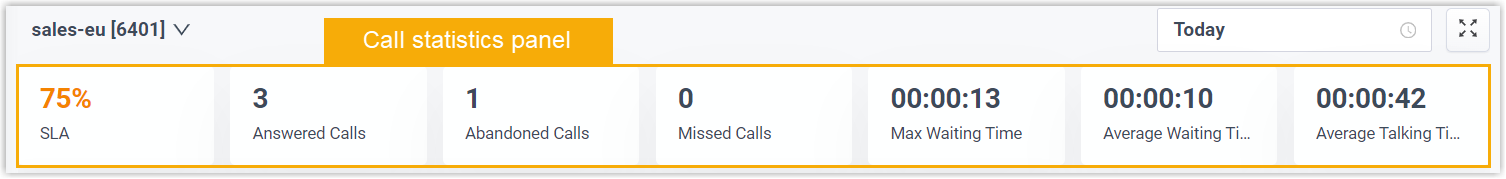

Check queue data on the call statistics panel

You can check the call statistics of the specified range of queue(s).

To understand each metric, you can refer to the table below.
Call statistics Description
SLA Display the percentage of calls answered within the target response time (SLA) for the queue(s).
Answered calls Display the total calls that queue agents answered over a period of time.
Abandoned Calls Display the total calls that have been abandoned over a period of time.
Tip: You can click on the widget to view detailed information about related call logs and manage the processing status.
Missed Calls Display the total calls that queue missed over a period of time.
Tip: You can click on the widget to view detailed information about related call logs and manage the processing status.
Max Waiting Time Display the maximum call waiting time for all calls answered over a period of time.
Average Waiting Time Display the average waiting time over a period of time for all queue calls.
Average Talking Time Display the average talking time over a period of time for all queue calls.

Check and manage calls on the waiting call panel

You can check the details of incoming call that is in ringing or waiting state in real time, including caller, callee, queue, status, time, and details. You can also manage the calls as needed.

Note: The indicates that the caller has requested a callback.

Check and manage calls on the active call panel

You can check the details of answered calls in real time, including caller, callee, queue, status, time, and details. You can also manage the calls as needed.
Note: The indicates that this is a callback.

Check and manage agent status on the agent panel

You can check the agent details in the queue(s), including the agent's presence, queue status, and the agent's queue call statistics.

Agent's presence
To see an agent's presence status, hover your mouse over the presence icon.

Icon Presence Description
Unavailable The agent's extension is not registered.
Busy The agent is in a call.
Available The agent is online and ready to receive and handle calls.
Away The agent is currently away from office.
Business Trip The agent is currently on a business trip.
Do Not Disturb The agent doesn't want to be disturbed, and he/she won't receive any calls.
Lunch Break The agent is currently on lunch break.
Off Work The agent is currently off work.
Queue Status
Icon Presence
The agent has logged in to the queue, and is available to receive a call.
The agent logged out of the queue.
The agent has paused receiving the queue calls.

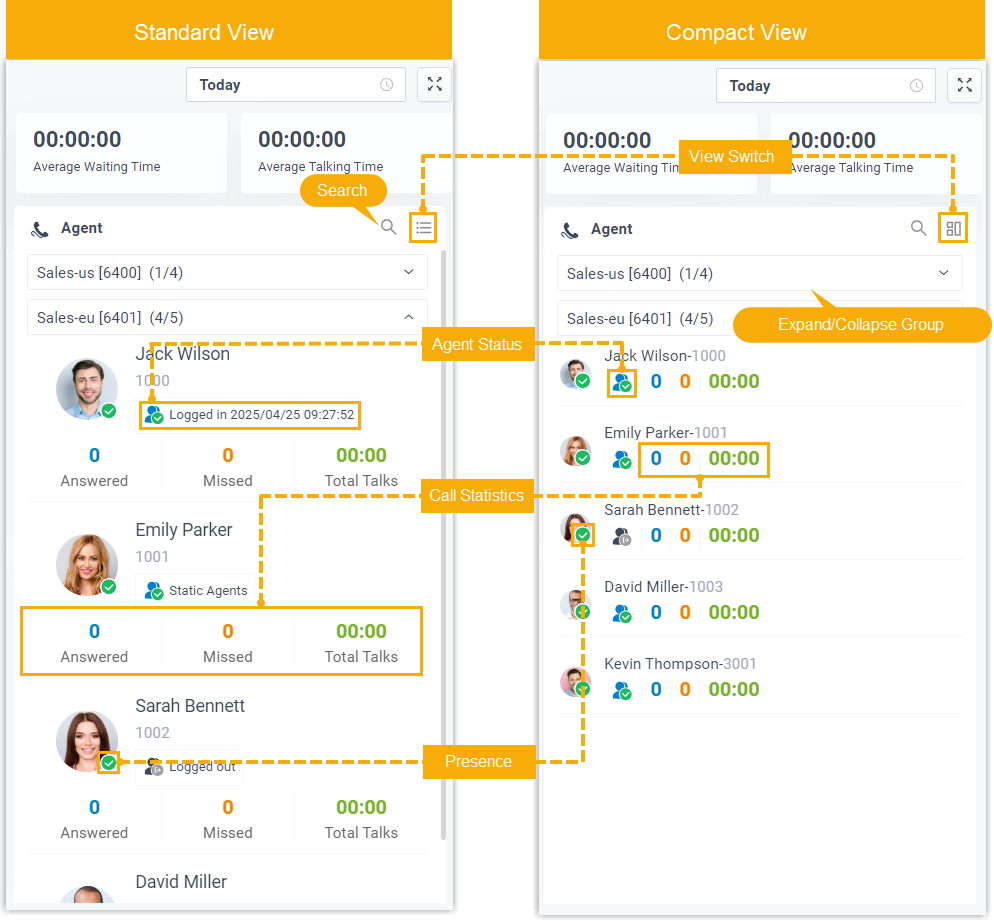

View Switch
By default, Standard View is displayed. You can click the View Switch button to switch to the Compact View, which allows you to view and manage queue agents more efficiently.
