Install Yeastar Room Display DS7210

Package contents

Before you begin to install Yeastar room display, you need to check the package contents to verify that you have received the items below.

Yeastar Room Display DS7210 Optional: PoE injector Quick Installation Guide Vesa mount metal kit

Exterior components


No Function
1 USB 2.0 host
2 Recovery
3 RJ45-with PoE
4 Micro USB OTG
5 DC in power supply port
6 VESA : 190MM

Install Room Display DS7210

  • Wall hanging mode 1
room display wall hanging mode 1-1 room display wall hanging mode 1-1
Plug an Ethernet cable into PoE port of the Room Display. Install the wall kit on wall and screw in.

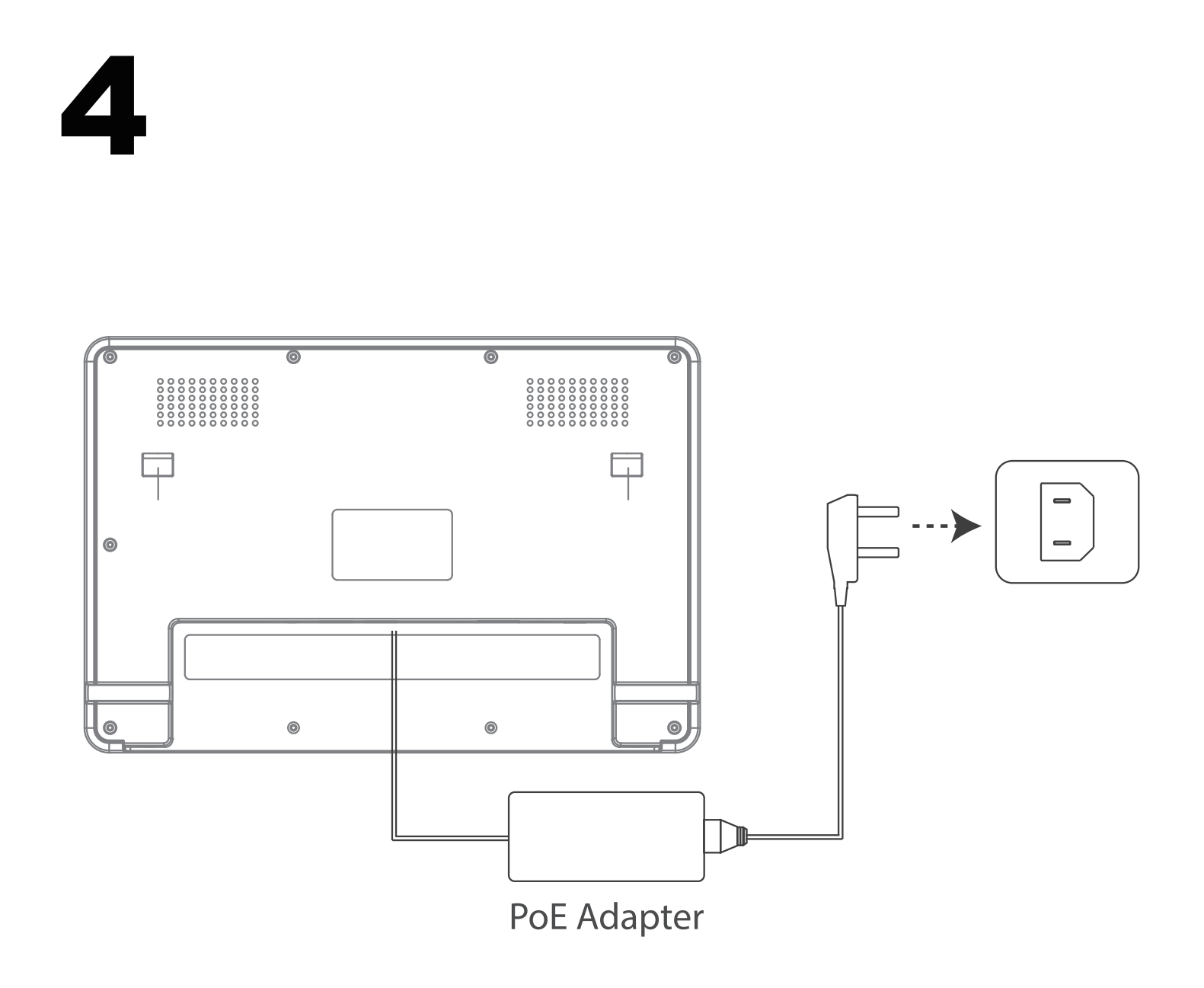

Hang up and align the wall mount kit with its hole. Plug the Ethernet cable into the Data+Power port of PoE injector;Plug the power cable from PoE injector to a power outlet, the device will be started up.
  • Wall hanging mode 2
First align the small wall mount kit(L-shaped) with the large wall mount kit at the screw hole and fasten the screw. Screw the wall plug into the wall, then align the hole of the (L-shaped) small wall mount kit and then fasten in the screw.
Hang up and align the wall mount kit with its hole. Use an Ethernet cable to connect the POE port of Room Display and the Data+Power port of PoE injector; Plug the power cable from PoE injector to a power outlet, the device will be started up.
  • Glass fixing
Plug an Ethernet cable into PoE port of the Room Display. Place the Ethernet cable into the backside groove. Paste the tape to the back of the Room Display as shown. Note: Avoid the heat sink.
Fixing the Room Display to glass. Plug the Ethernet cable into the Data+Power port of PoE injector; Plug the power cable from PoE injector to a power outlet, the device will be started up.

Connect the Room Display to Internet

Yeastar Room Display DS7210 supports Internet connection by a wired or wireless network. Choose one of the following methods to connect the device to the Internet.

  • Wireless network connection:

    1. After the Room Display boots up, tap Configure the System Network on the screen.
    2. Enable Wi-Fi and connect the device to a Wi-Fi network.
    3. Tap the in the bottom bar to access the desktop.
    4. Swipe up the screen and select Meeting Room Display.
  • Wired network connection: Plug an Ethernet cable into the DATA port of PoE injector and connect it to the switch.

What to do next

After installation, you can register room displays to Yeastar Workplace.
